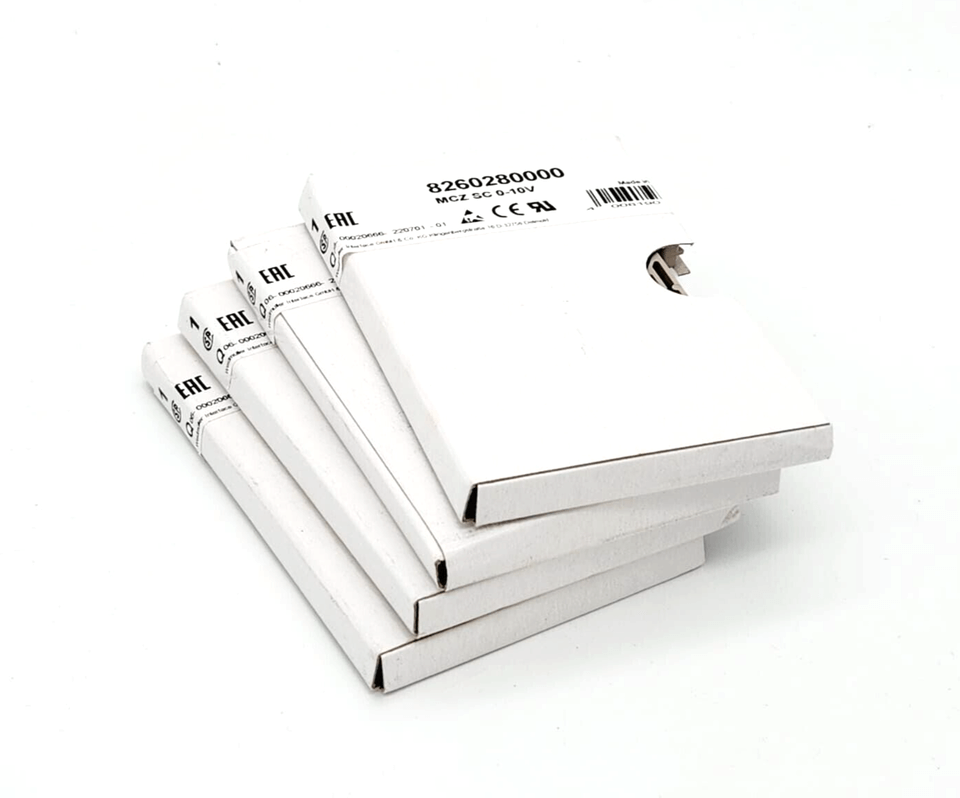

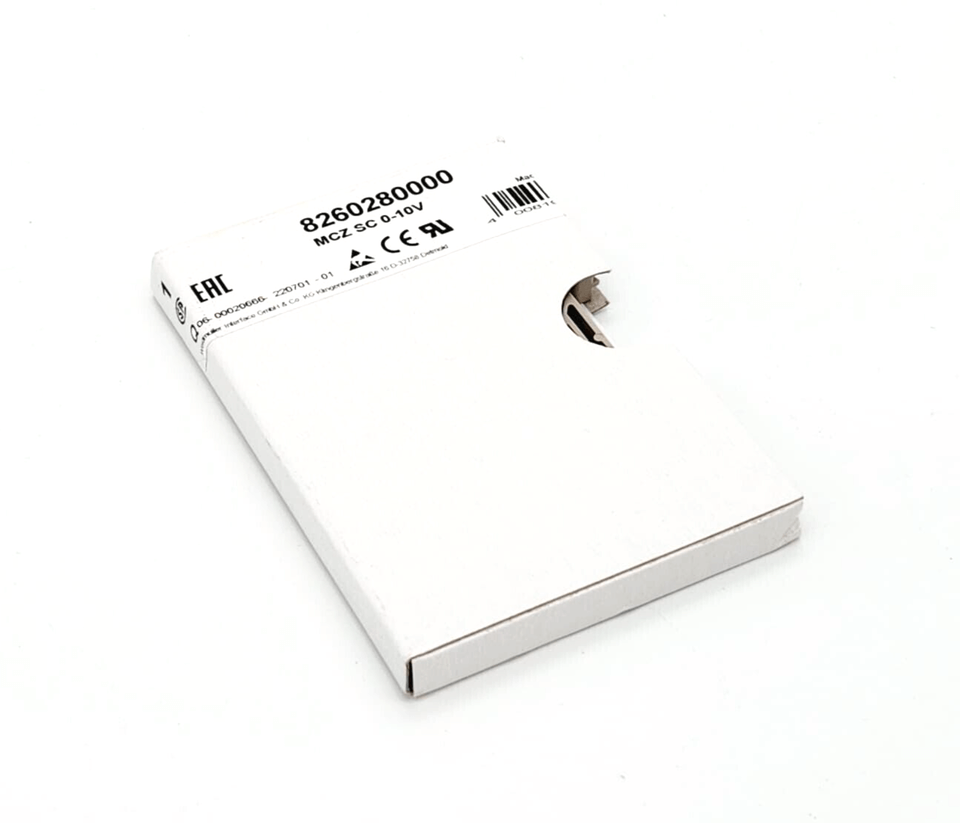

Weidmüller 8260280000 MCZ SC 0-10V limit value monitoring
Weidmüller 8260280000 MCZ SC 0-10V limit value monitoring
Regular price
€69,99 EUR
Regular price
Sale price
€69,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Weidmüller 8260280000 MCZ SC 0-10V limit value monitoring
- storage temperature -25 °C...60 °C
- operating temperature -20 °C...60 °C
- humidity at operating temperature 0...95 % (no condensation)
- input current 0.5...20 mA
- input resistance current 50 Ω
- voltage drop 1V
- number of outputs 2
- cutoff frequency (-3 dB) 100 Hz
- Galvanic isolation without separation, between input ⁄ output ⁄ supply
- configuration potentiometer
- protection class IP20
- step response time <250 µs (switching threshold at 90 % of
- max. input signal; RI ≤ 1 kΩ)
- power consumption 15 mA
- temperature coefficient ± 250 ppm/K, 350 ppm/K
- mounting rail TS 35
- supply voltage 24 V DC ± 20 %
- connection type TOP connection, screw connection
- clamping range, rated connection 1.5 mm²
- clamping range, min. 0.5 mm²
- clamping range, max. 1.5 mm²
