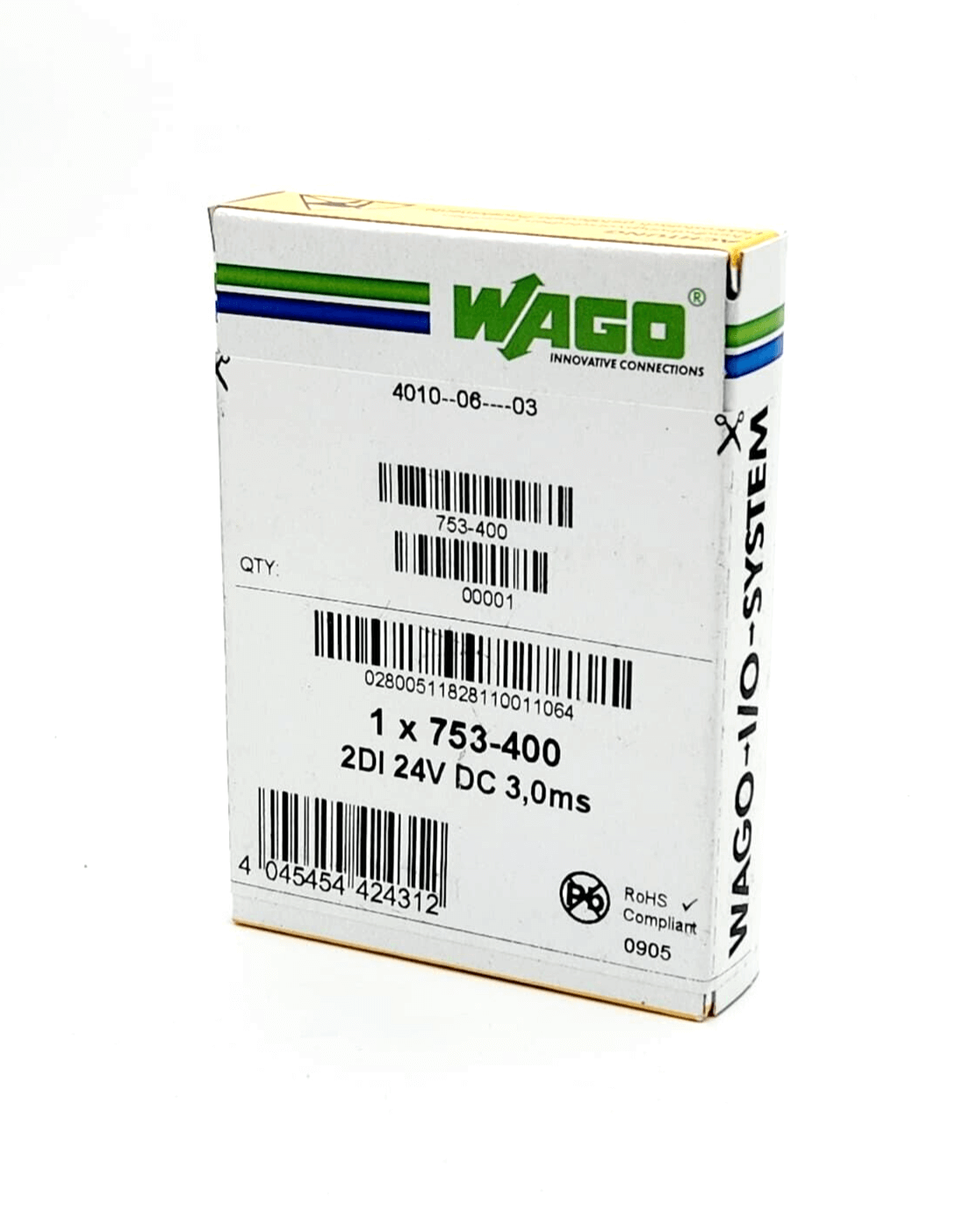

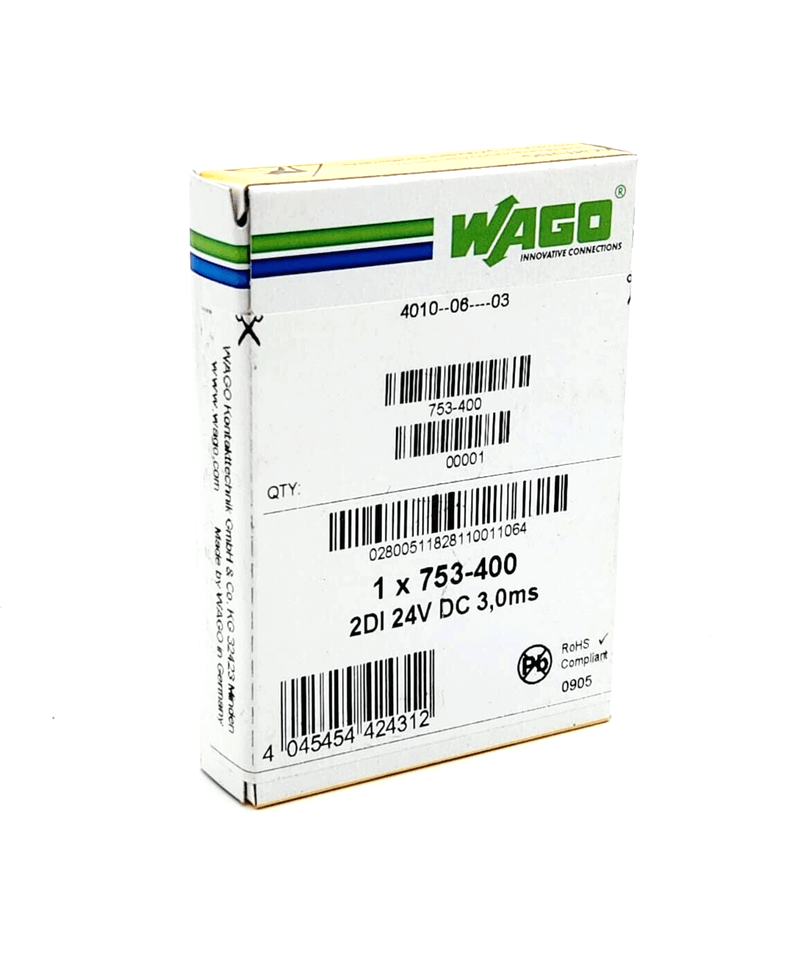

Wago 753-400 DC 24V 3ms 2-channel digital input
Wago 753-400 DC 24V 3ms 2-channel digital input
Regular price
€37,99 EUR
Regular price
Sale price
€37,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wago 753-400 DC 24V 3ms 2-channel digital input
- number of digital inputs 2
- Total number of channels (module) 2
- signal type Digital
- signal type voltage DC 24 V
- sensor supply DC 24 V
- sensor connection 2 x (2 conductors, 3 conductors, 4 conductors)
- input characteristics positive switching
- input filter (digital) 3ms
- Input current per channel at signal (1) typ. 4.5mA
- Voltage range for signal (0) DC −3 … +5 V
- Voltage range for signal (1) DC 15 … 30 V
- Data width input data (internal) max. 2Bit
- supply voltage system DC 5 V; via data contacts
- Power consumption system supply (5 V) 3.7mA
- supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
- potential separation 500 V system/field
- display elements LED (A, C) green: status DI 1, DI 2
- number of incoming service contacts 3
- Number of power contacts outgoing 3
- current carrying capacity of the power contacts 10A
Share
3 in stock
View full details
