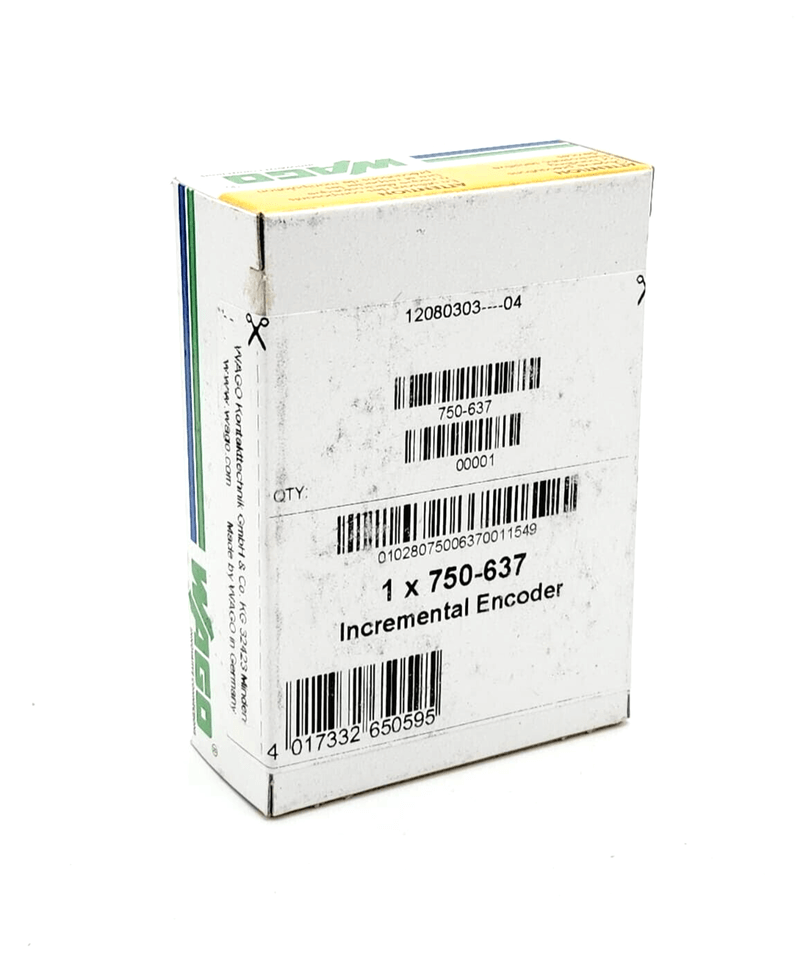

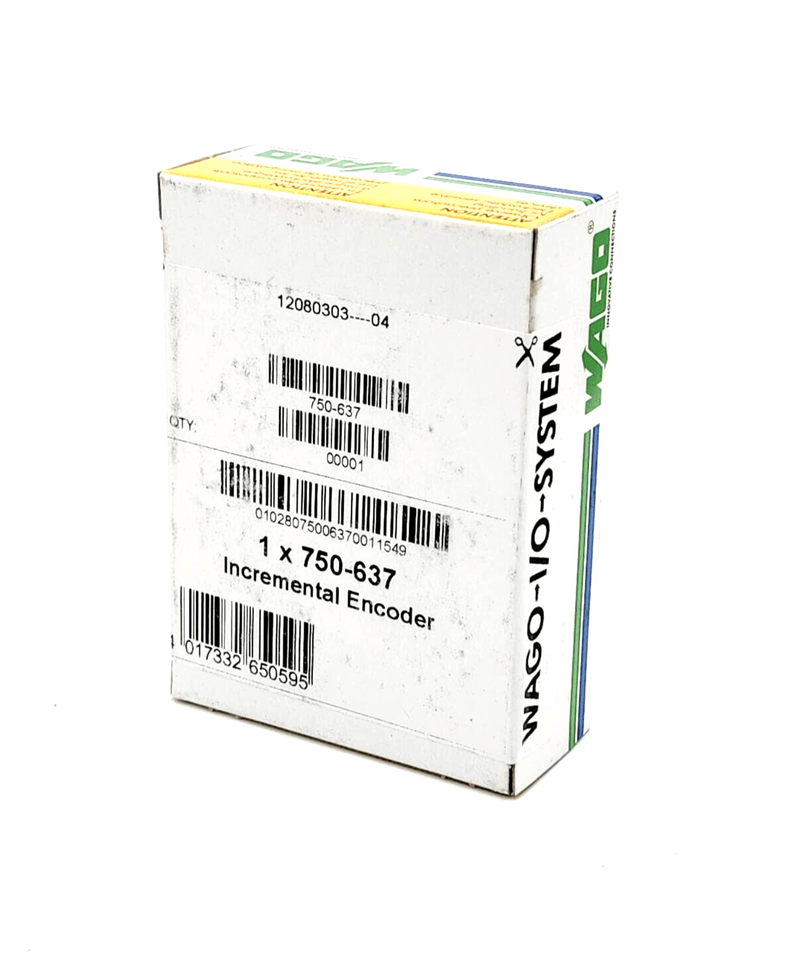

Wago 750-637 PLC incremental encoder interface RS-422 32 bit
Wago 750-637 PLC incremental encoder interface RS-422 32 bit
Regular price
€247,94 EUR
Regular price
Sale price
€247,94 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wago 750-637 PLC incremental encoder interface RS-422 32 bit
- meter depth 32-bit
- sensor connection A; /A; B; /B; C; /C (RS-422 inputs)
- supply current encoder max 300mA
- zero-pulse latch 32-bit
- quadrature decoder 4-way evaluation
- Input current typ. Latch 5mA, Gate 7mA, Ref. 7mA
- output current per channel 0.5A
- output current short-circuit proof
- output voltage DC 24 V
- Voltage range for signal (0) UABC = RS-422; Latch, Gate, Ref.: DC -3 … +5 V
- Voltage range for signal (1) UABC = RS-422; Latch, Gate, Ref.: DC 15 … 30 V
- data width 1 x 32 bit data 2 x 8 bit control/status
- cutoff frequency 250kHz
- commands Read, Set, Activate
- supply voltage system DC 5 V; via data contacts
- current consumption system supply (5 V) 110mA
- Current consumption field supply (module without external load) 35mA
- potential separation 500 V system/field
- display elements LED (AD/AD) green: A, C, B, Latch, Gate, N1, Ref, N2
