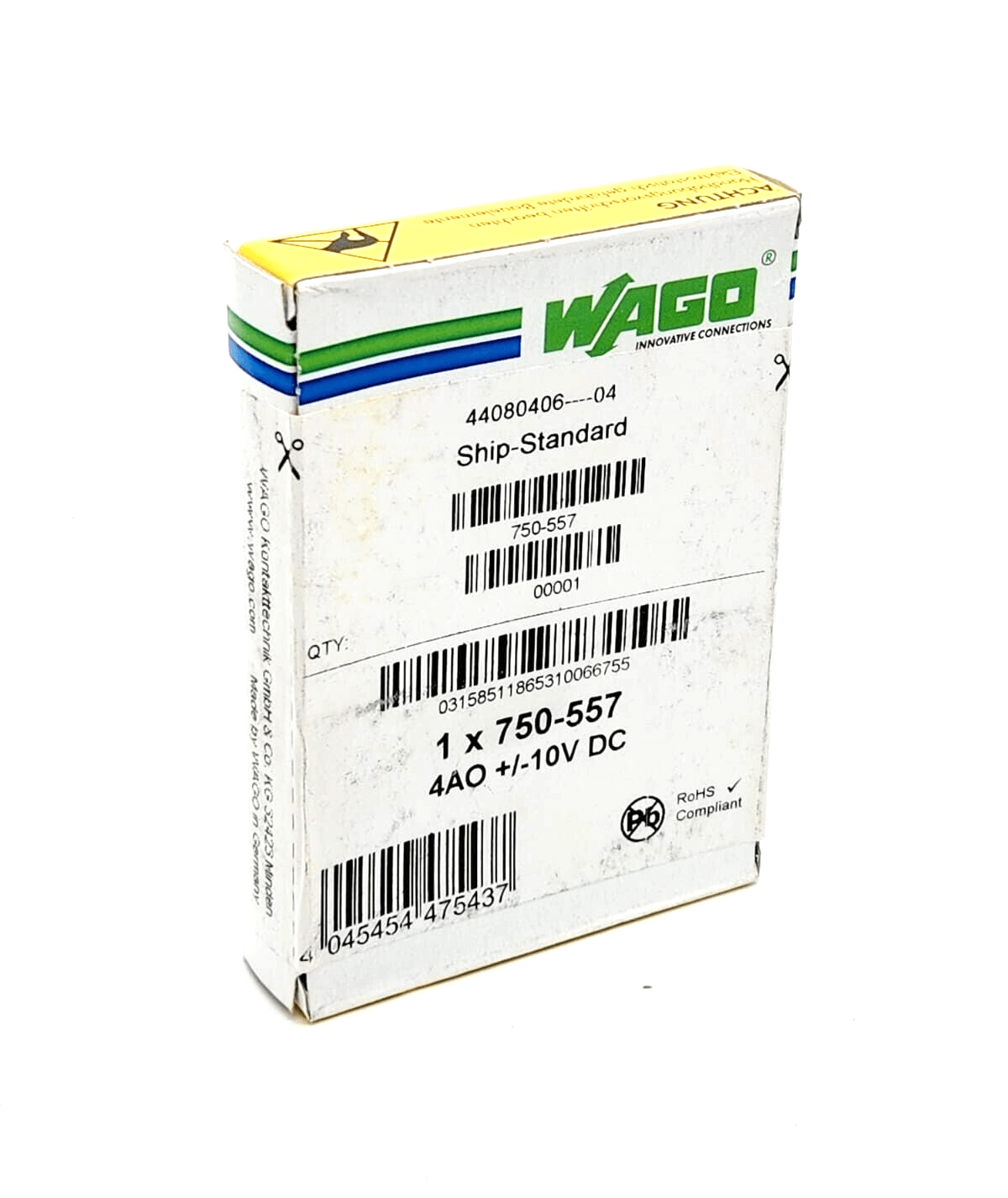

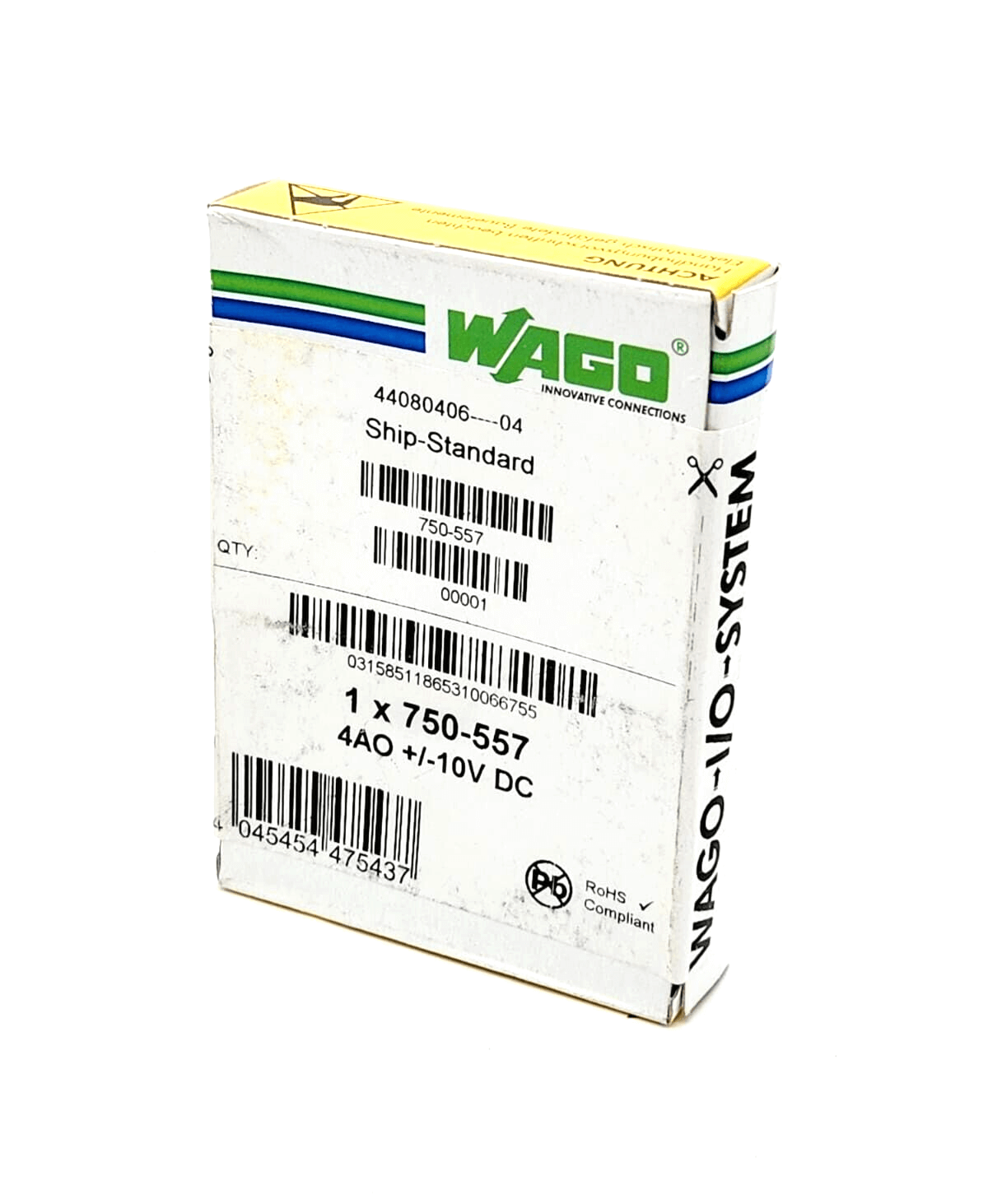

Wago 750-557 4-channel analog output DC ±10 V

Number of analog outputs 4
Total number of channels (module) 4
signal type voltage
Signal type Voltage DC -10 … +10 V
actuator connection 4 x (2 conductors)
Resolution [bit] 12 bit
Data width 4 x 16 bit data; 4 x 8 bit control / status (optional)
Load voltage output ≥ 5 kΩ
Conversion time typically 10ms
measurement error, reference temperature 25°C
Measurement error, deviation max. from the measuring range end value 0.1%
Temperature error max. of the measuring range end value 0.01%/K
Output error, reference temperature 25°C
Output error, maximum deviation from the output range end value 0.1%
Temperature error max. of output range end value 0.01%/K
Settling time typically 100ms
Supply voltage system DC 5 V; via data contacts
Current consumption system supply (5 V) 125mA
Field supply voltage DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
Potential separation 500 V system/field
Display elements LED (A) green: function; LED (B) red: error
Number of incoming power contacts 2
Number of power contacts outgoing 2
current carrying capacity of the power contacts 10A
