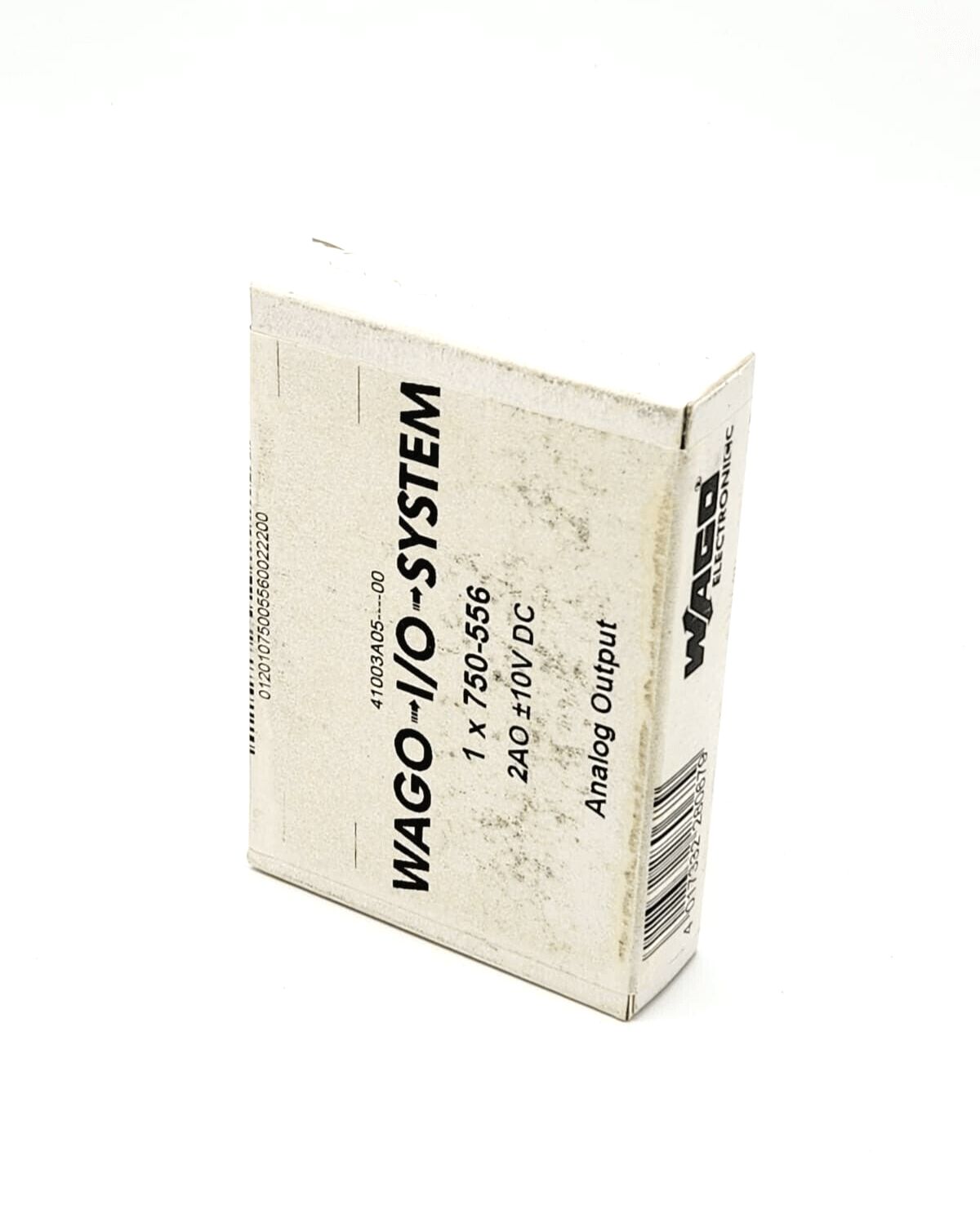

• Wago 750-556 2-Kanal-Analogausgang DC ±10 V | sealed package displaying the front view of the original packaging.
  • Wago 750-556 2-Kanal-Analogausgang DC ±10 V | sealed packaging, side view of new product
1 2

Wago

Wago 750-556, 2-channel analog output, DC ±10 V

Wago 750-556, 2-channel analog output, DC ±10 V

€227,99 EUR
€227,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Wago 750-556, 2-channel analog output, DC ±10 V
  • number of analog outputs 2
  • Total number of channels (module) 2
  • signal type Tension
  • signal type voltage DC -10 … +10 V
  • actuator connection 2 x (2 conductors)
  • resolution [bit] 12-bit
  • data width 2 x 16 bit data; 2 x 8 bit control / status (optional)
  • load voltage output ≥ 5 kΩ
  • Conversion time typ. 2ms
  • measurement error, reference temperature 25°C
  • Measurement error, maximum deviation from the measuring range end value 0.1%
  • Temperature error max. from the measuring range end value 0.01%/K
  • output error, reference temperature 25°C
  • Output error, maximum deviation from the measuring range end value 0.1%
  • Temperature error max. from output range end value 0.01%/K
  • Settling time typ. 0.3ms
  • linearity ±10 mV
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 65mA
  • potential separation 500 V system/field
  • display elements LED (A, C) green: Function AO 1, AO 2

1 in stock
