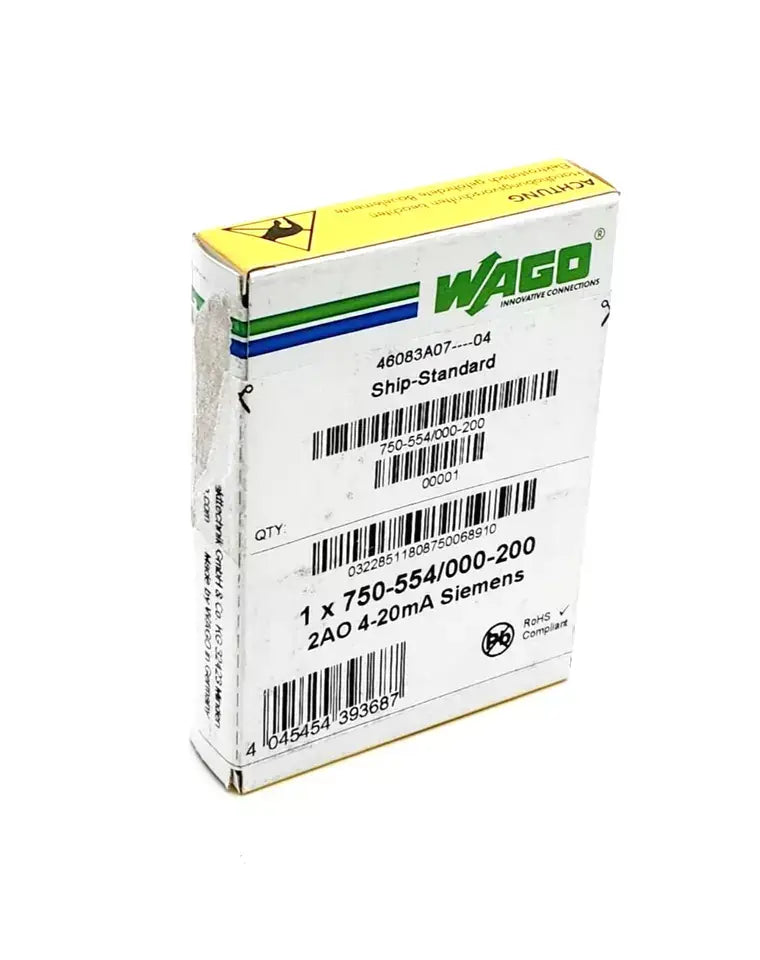

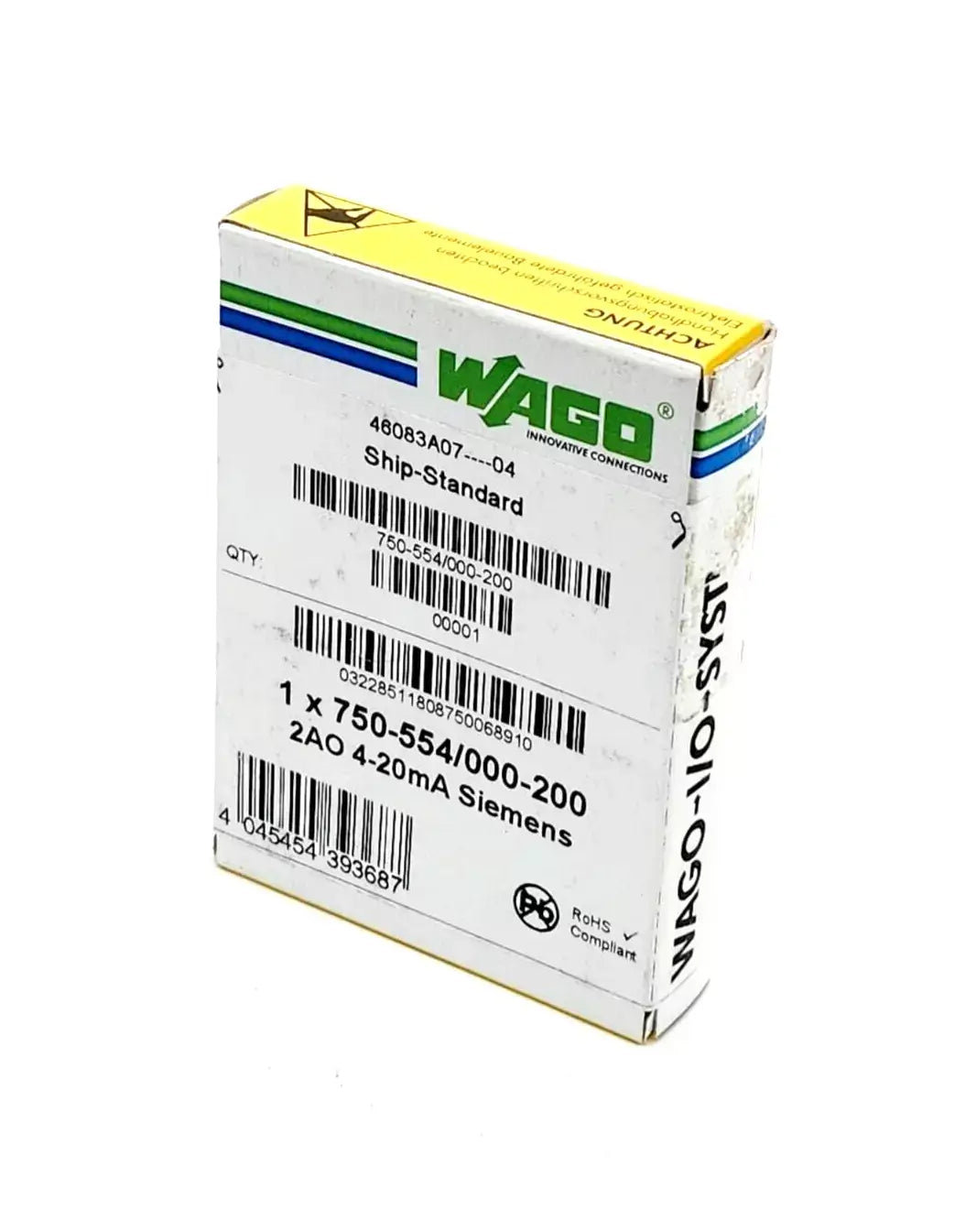

Wago 750-554/000-200 2-channel analog output 4 … 20 mA, 2AO

Wago 750-554/000-200 2-channel analog output 4 … 20 mA, 2AO

€313,49 EUR
€313,49 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Wago 750-554/000-200, 2-channel analog output, 4 … 20 mA, 2AO

  • number of analog outputs 2
  • Total number of channels (module) 2
  • signal type Electricity
  • signal type current DC 4 … 20 mA
  • actuator connection 2 x (2 conductors)
  • resolution [bit] 12-bit
  • data width 2 x 16 bit data; 2 x 8 bit control / status (optional)
  • load current output ≤ 600 Ω
  • Conversion time typ. 2ms
  • measurement error, reference temperature 25°C
  • Measurement error, maximum deviation from the measuring range end value 0.1%
  • Temperature error max. from the measuring range end value 0.015%/K
  • output error, reference temperature 25°C
  • Output error, maximum deviation from the measuring range end value 0.1%
  • Temperature error max. from output range end value 0.015%/K
  • linearity ±10 µA
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 70mA
  • supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding via spring contact)
  • potential separation 500 V system/field
  • display elements LED (A, C) green: Function AO 1, AO 2

1 in stock
