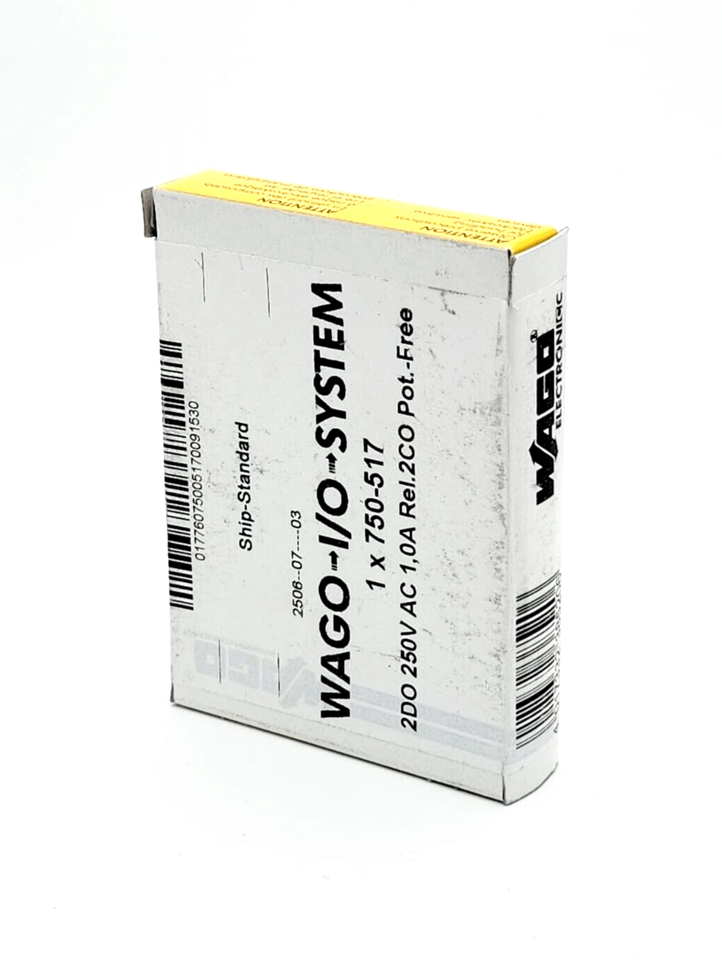

• Wago 750-517 2-Kanal-Relaisausgang packaging for AC 250 V with 1A capacity and 2 Wechsler potential-free relay outputs.

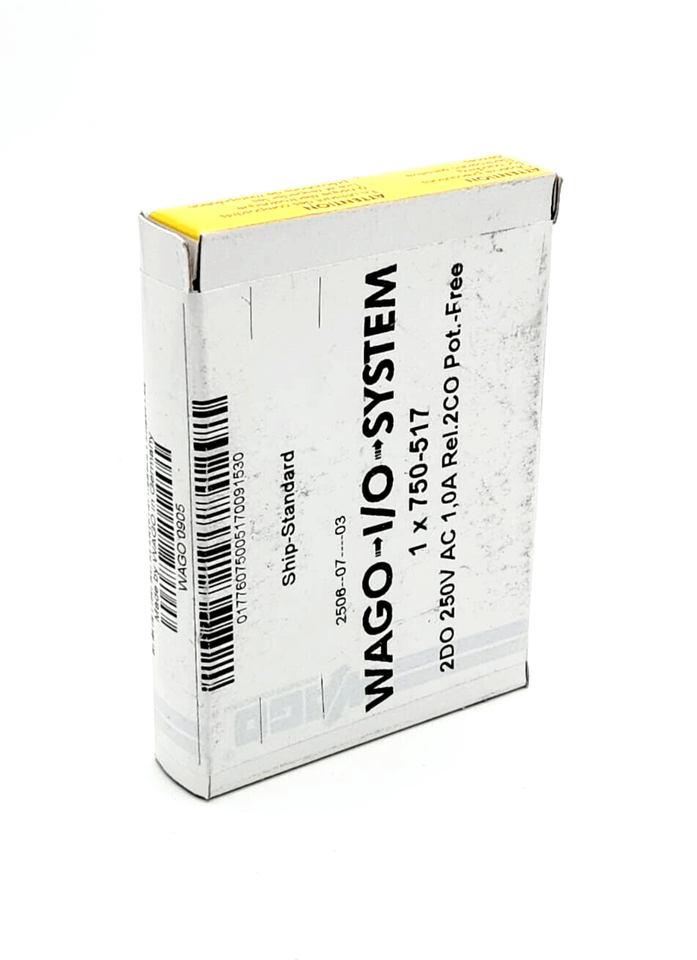

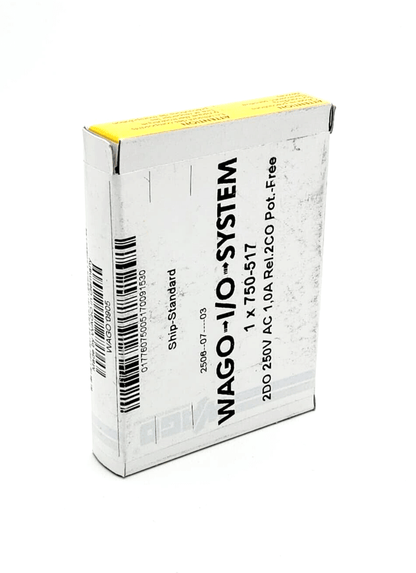

  • Wago 750-517 2-Kanal-Relaisausgang AC 250V 1A, IO-System packaging box, potential-free, 2 switches.
1 2

Wago

Wago 750-517 2-channel relay output AC 250 V 1 A Potential-free 2 changeover contacts

Wago 750-517 2-channel relay output AC 250 V 1 A Potential-free 2 changeover contacts

€49,99 EUR
€49,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Wago 750-517 2-channel relay output AC 250 V 1 A Potential-free 2 changeover contacts

  • number of digital outputs 2
  • Total number of channels (module) 2
  • signal type Digital
  • actuator connection 2 x (1 conductor)
  • design of the output circuit 2 changers
  • relay
  • output characteristics potential-free
  • Switching frequency max. 0.1 Hz; rated load
  • switching voltage max. AC 250 V, DC 300 V
  • switching current max. 1A
  • switching current note 1 A at AC 250 V and DC 40 V; 0.15 A at DC 300 V
  • Switching voltage min. 12V
  • switching current min. 100mA
  • Response time max. 8ms
  • Fall time max. 4ms
  • switching cycles electrical min. (at max. resistive load) 1 x 10⁶ switching cycles
  • Mechanical switching cycles min. (at max. resistive load) 5 x 10⁶ switching cycles
  • Data width output data (internal) max. 2Bit
  • supply voltage system DC 5 V; via data contacts
  • Power consumption system supply (5 V) 90mA
  • potential separation 1500 V system/field
  • display elements LED (A, E) green: status relay 1, relay 2

4 in stock
