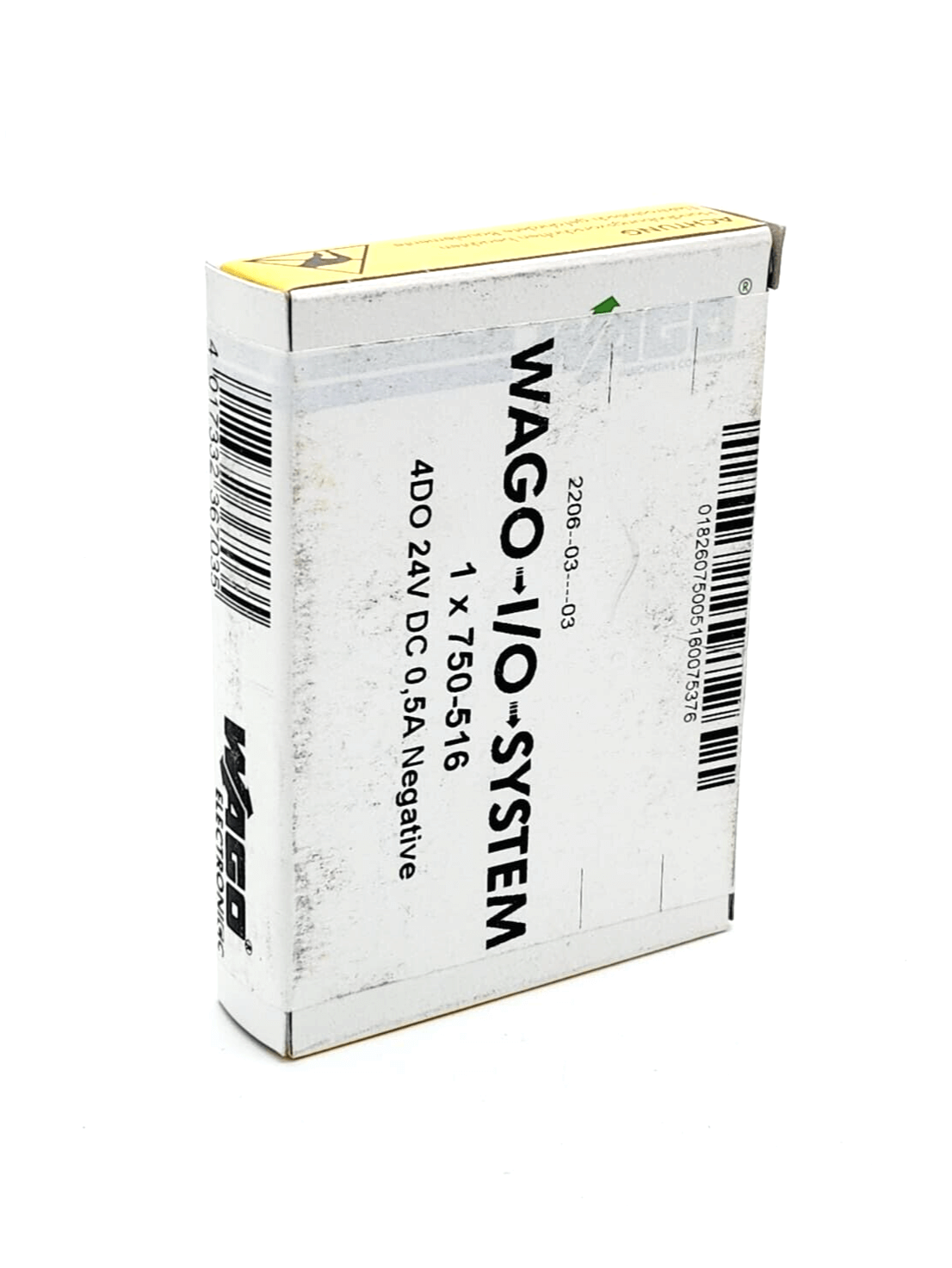

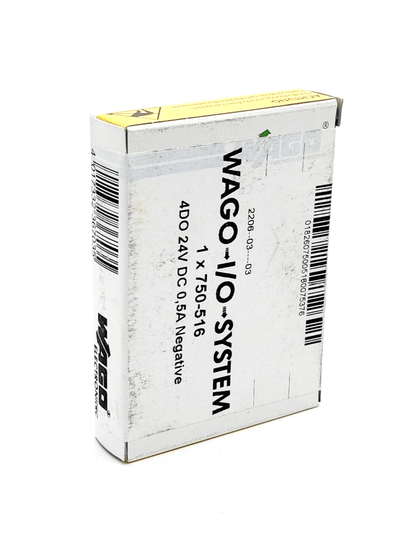

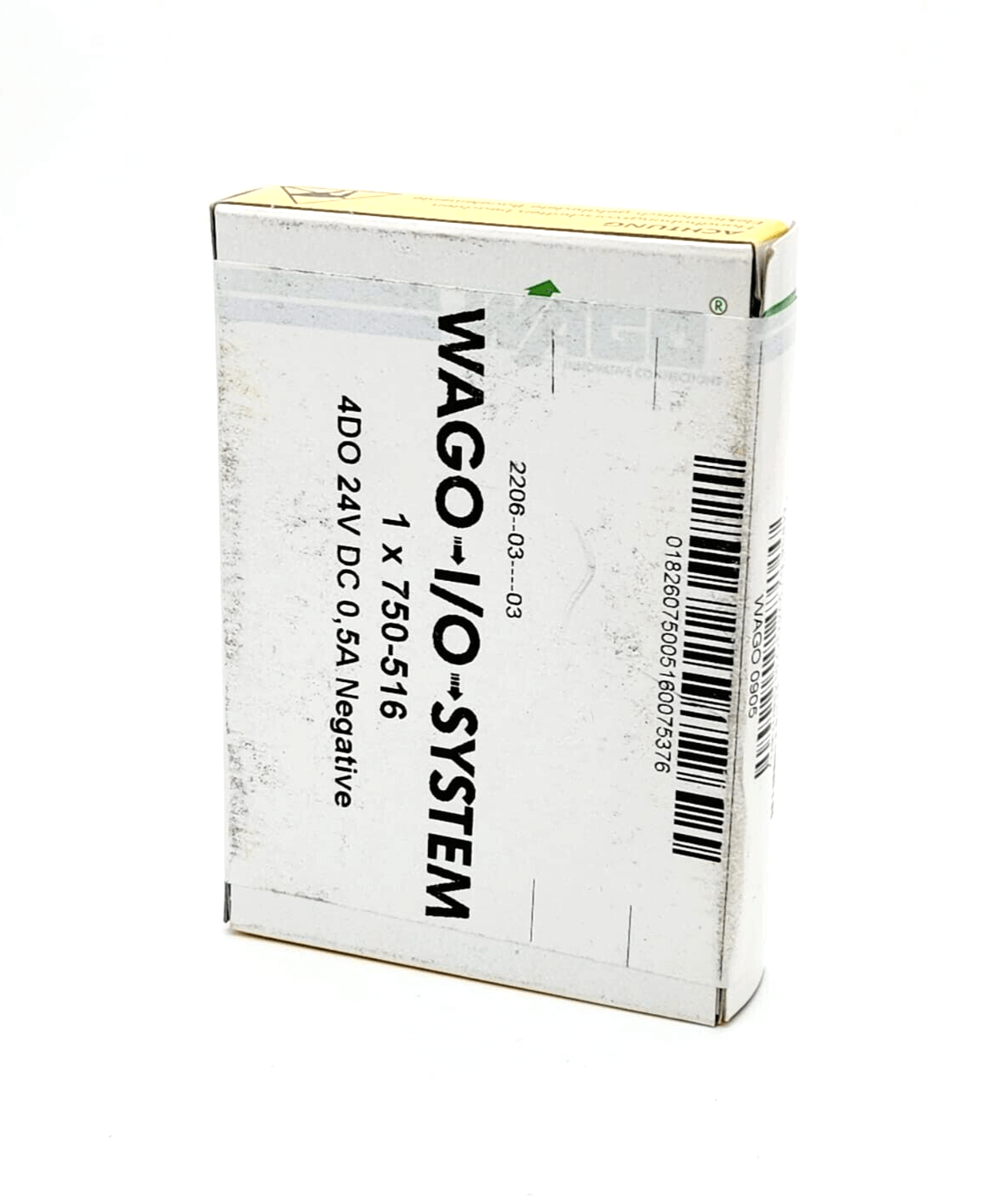

Wago 750-516 4-channel digital output DC 24 V 0.5 A negative switching Number of digital outputs 4 Total number of channels (module) 4 signal type Digital Signal type Voltage DC 24 V Actuator connection 2 x (2 conductors); to connect additional actuators, a suitable potential multiplication module (e.g. 750-614) must also be used. output characteristic negative switching output current per channel 0.5A output current short-circuit proof switching frequency max. 5 kHz Load type ohmic, inductive, lamp load Absorbable energy max. (single shutdown) 0.55J Data width output data (internal) max. 4 bit Supply voltage system DC 5 V; via data contacts Current consumption system supply (5 V) 7mA Field supply voltage DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact) Current consumption field supply (module without external load) 30mA Potential separation 500 V system/field Display elements LED (AD) green: Status DO 1 … DO 4 Number of incoming power contacts 2 Number of power contacts outgoing 2 current carrying capacity of the power contacts 10A
