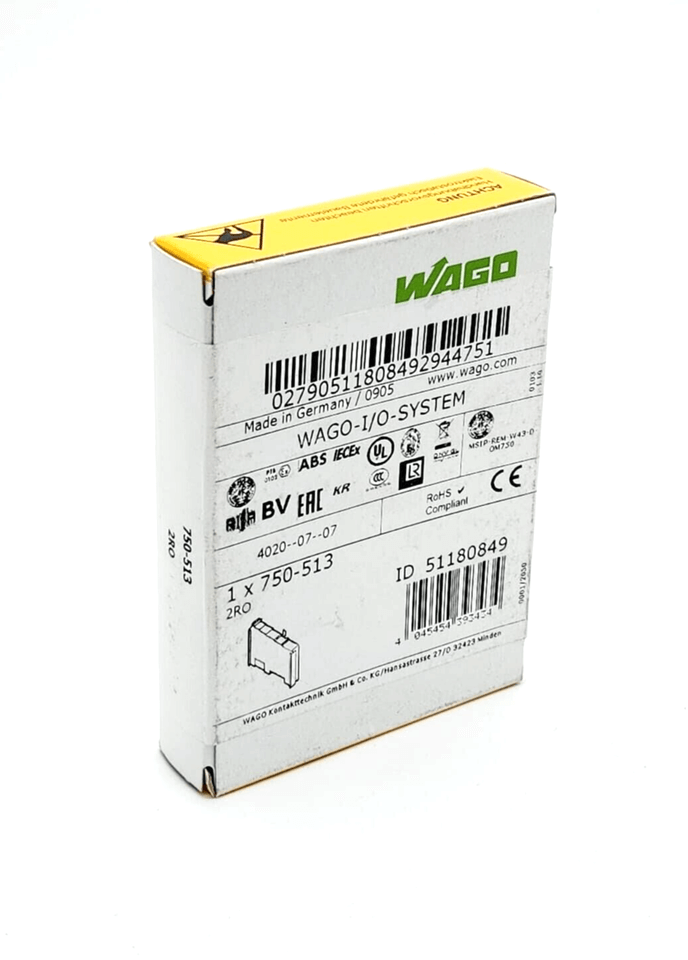

• Wago 750-513 2-channel relay output packaging displaying technical specifications, potential-free, AC 250V, 2.0A, 2 NO contacts.

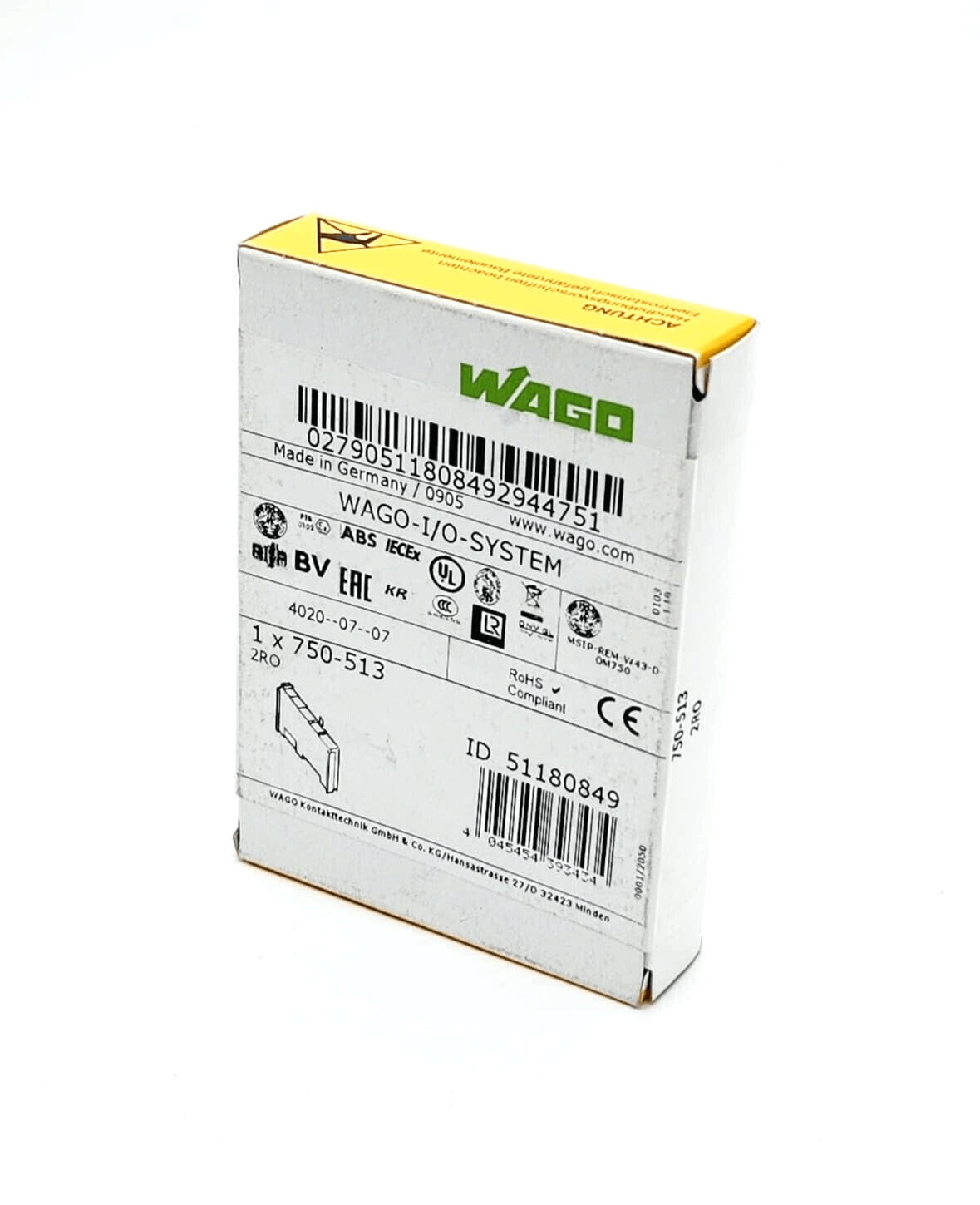

  • Wago 750-513 2-channel relay output box, AC 250V, 2A, potential-free, 2 normally open contacts, digital actuator connection
1 2

Wago

Wago 750-513, 2-channel relay output, AC 250 V, 2.0 A, potential-free, 2 NO contacts

Wago 750-513, 2-channel relay output, AC 250 V, 2.0 A, potential-free, 2 NO contacts

€43,64 EUR
€43,64 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Wago 750-513, 2-channel relay output, AC 250 V, 2.0 A, potential-free, 2 NO contacts
  • number of digital outputs 2
  • Total number of channels (module) 2
  • signal type Digital
  • actuator connection 2 x (1 conductor)
  • design of the output circuit 2 closers
  • relay
  • output characteristics potential-free
  • Switching frequency max. 0.5 Hz; rated load
  • switching voltage max. AC 250 V, DC 30 V
  • switching current max. 2A
  • Switching voltage min. 5V
  • switching current min. 10mA
  • switching capacity 500VA / 60W; cos ϕ max. =0.4; L/R max = 7 ms
  • Response time max. 10ms
  • Fall time max. 10ms
  • bounce time typ. 1.2ms
  • switching cycles electrical min. (at max. resistive load) 300 x 10³ switching cycles
  • Mechanical switching cycles min. (at max. resistive load) 20 x 10⁶ switching cycles
  • Data width output data (internal) max. 2Bit
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 100mA
  • supply voltage field Transmission of the earth potential via a power contact
  • potential separation 1500 V system/field
  • display elements LED (A, C) green: status relay 1, relay 2
  • number of incoming service contacts 1
  • Number of power contacts outgoing 1
  • current carrying capacity of the power contacts 10A

4 in stock
