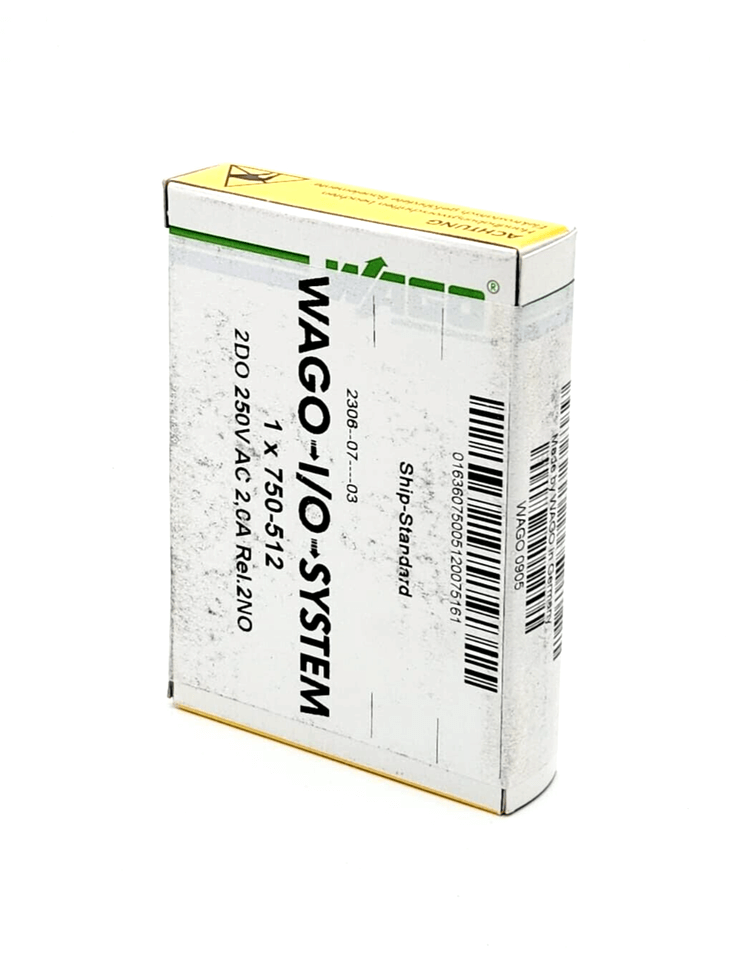

• Wago 750-512 2-channel relay output module AC 250V, 2A, two normally open contacts, digital actuator connection, packaged

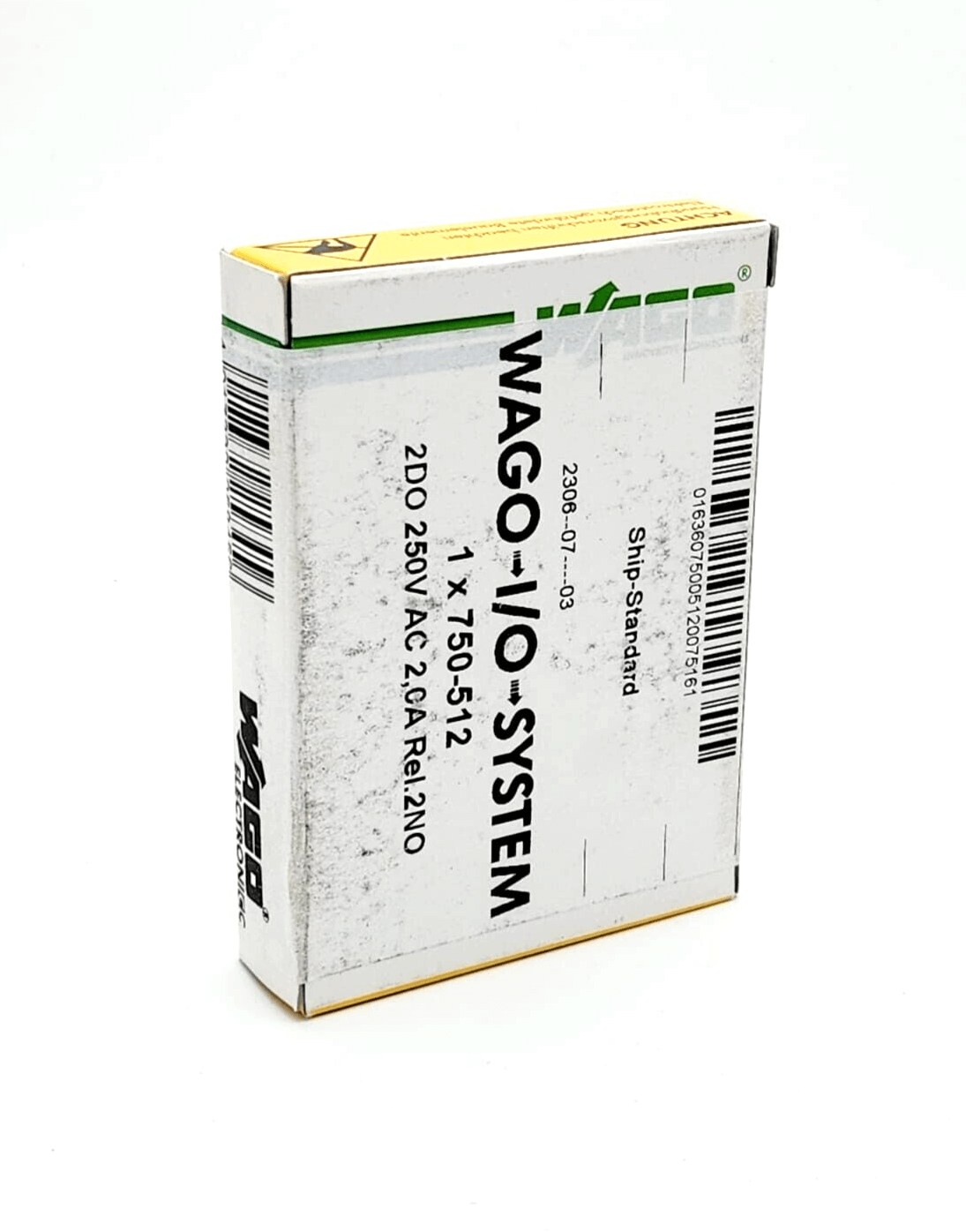

  • Wago 750-512 2-channel relay output packaging, AC 250V, 2.0A, box for industrial digital output module with 2 Normally Open contacts.
1 2

Wago

Wago 750-512 2-channel relay output AC 250 V 2.0 A 2 NO contacts

Wago 750-512 2-channel relay output AC 250 V 2.0 A 2 NO contacts

€66,49 EUR
€66,49 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Wago 750-512 2-channel relay output AC 250 V 2.0 A 2 NO contacts

  • number of digital outputs 2
  • Total number of channels (module) 2
  • signal type Digital
  • actuator connection 2 x (2 conductors, 3 conductors)
  • design of the output circuit 2 closers
  • relay
  • output characteristics non-isolated
  • Switching frequency max. 0.5 Hz; rated load
  • switching voltage max. AC 250 V, DC 30 V
  • switching current max. 2A
  • Switching voltage min. 5V
  • switching current min. 10mA
  • switching capacity 500 VA / 60 W (purely ohmic load); cos ϕ max. =0.4; L/R max = 7 ms
  • Response time max. 10ms
  • Fall time max. 10ms
  • bounce time typ. 1.2ms
  • switching cycles electrical min. (at max. resistive load) 300 x 10³ switching cycles
  • Mechanical switching cycles min. (at max. resistive load) 20 x 10⁶ switching cycles
  • Data width output data (internal) max. 2Bit
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 100mA
  • supply voltage field AC 250 V; via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
  • potential separation 1500 V system/field
  • display elements LED (A, C) green: status relay 1, relay 2
  • number of incoming service contacts 3
  • Number of power contacts outgoing 3
  • current carrying capacity of the power contacts 10A

1 in stock
