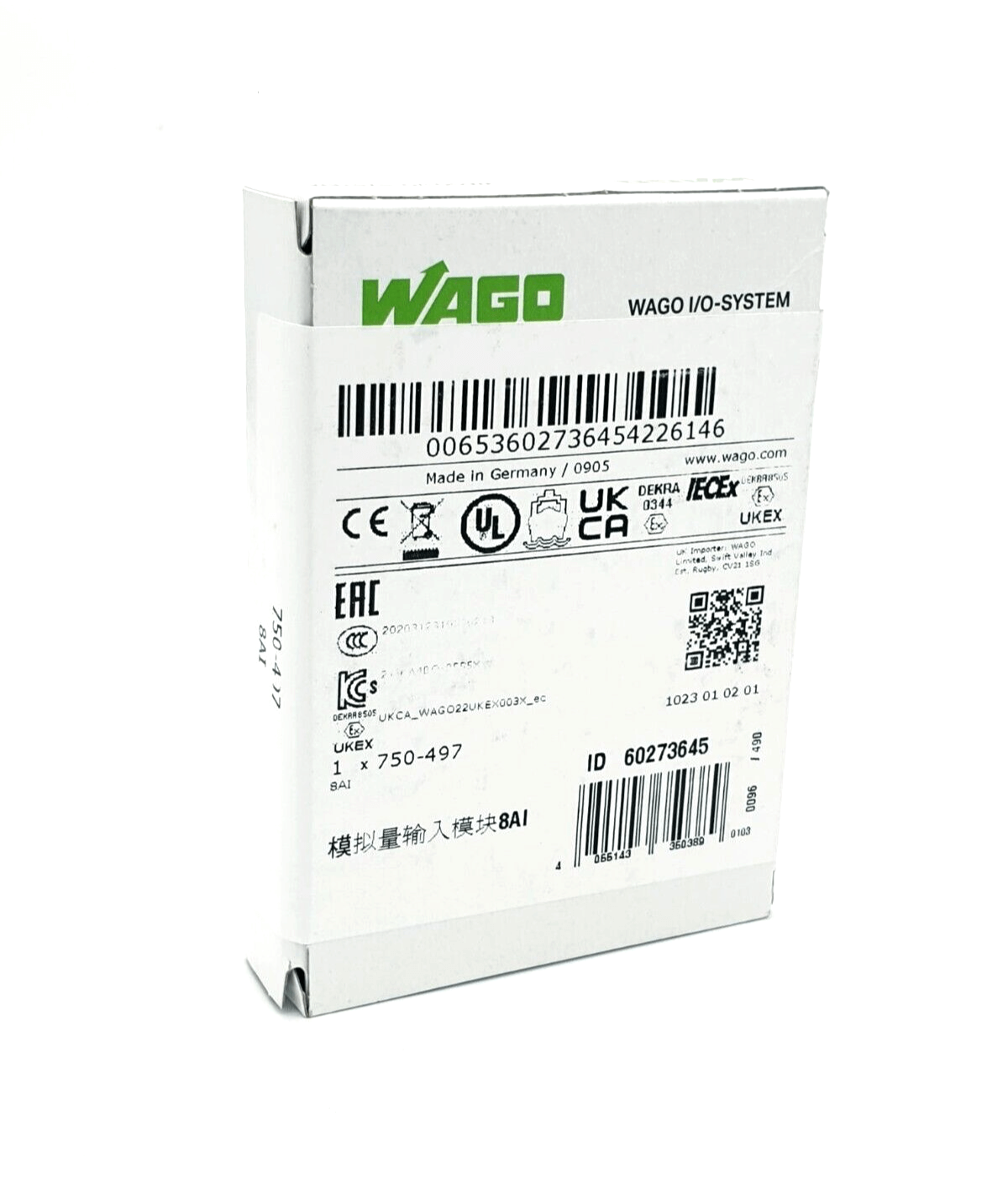

• Packaging of Wago 750-497 8-Kanal-Analogeingang DC 0 … 10 V/±10 V Single-Ended module

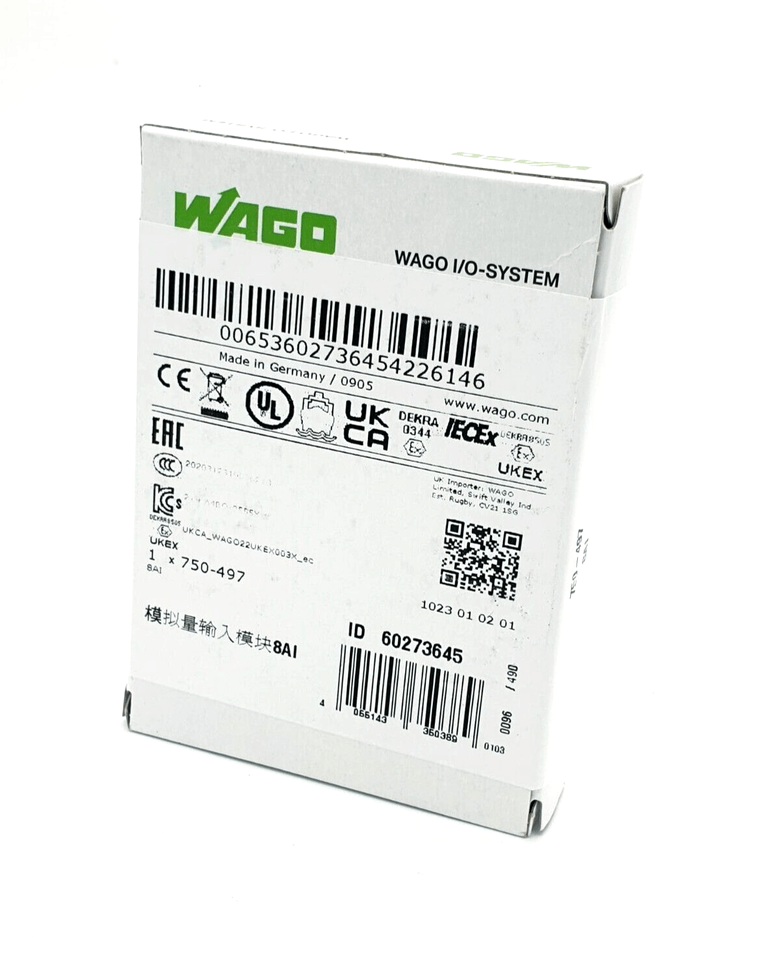

  • Packaging of Wago 750-497 8-Kanal-Analogeingang DC 0 … 10 V/±10 V Single-Ended with product details and certifications.
1 2

Wago

Wago 750-497 8-channel analog input DC 0 … 10 V/±10 V single-ended

Wago 750-497 8-channel analog input DC 0 … 10 V/±10 V single-ended

€227,99 EUR
€227,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Wago 750-497 8-channel analog input DC 0 … 10 V/±10 V single-ended
  • number of analog inputs 8
  • Total number of channels (module) 8
  • signal type Tension
  • signal type voltage DC 0 … 10 V; DC -10 … +10 V
  • signal type configurable Yes
  • sensor connection 8 x (2 conductors)
  • input voltage max. 35 V
  • resolution [bit] 12-bit
  • data width 8 x 16 bit data; 8 x 8 bit control/status (optional)
  • internal resistance 100kΩ
  • measurement error, reference temperature 25°C
  • Measurement error, maximum deviation from the measuring range end value 0.1%
  • Temperature error max. from the measuring range end value 0.01%/K
  • configuration options WAGO-I/O-CHECK
  • CODESYS library
  • e!COCKPIT
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 105mA
  • supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding via spring contact)
  • potential separation 500 V system/field
  • display elements LED (1-8) green: status AI 1 … AI 8; LED (9-16) red: Error AI 1 … AI 8
  • number of incoming service contacts 2
  • Number of power contacts outgoing 2

1 in stock
