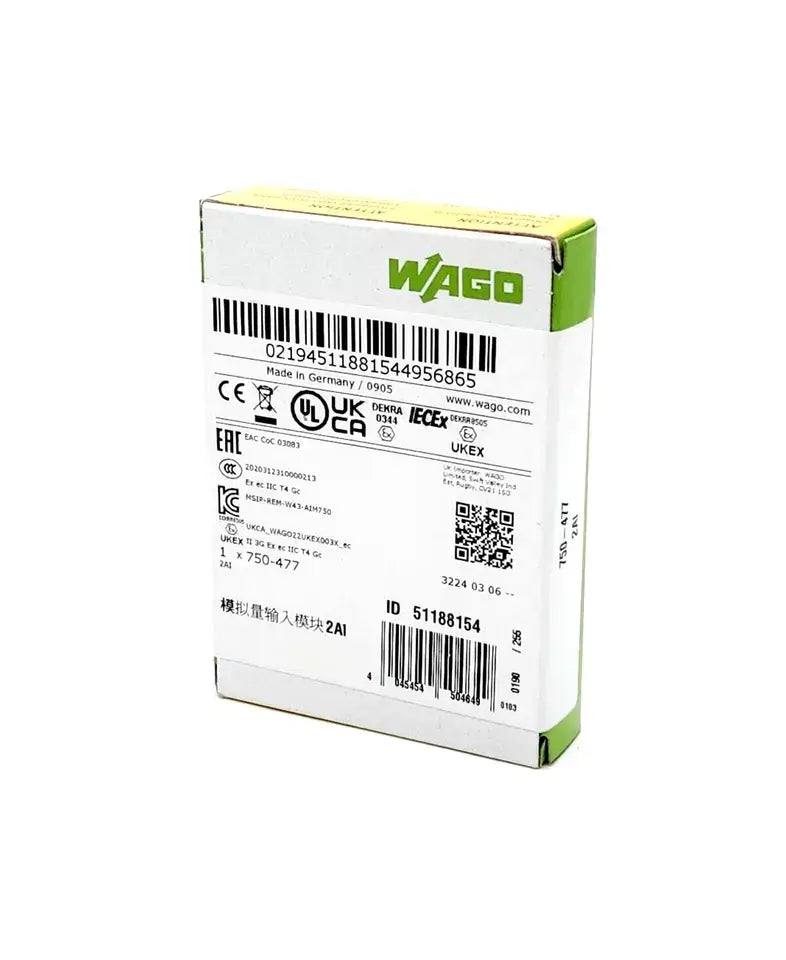

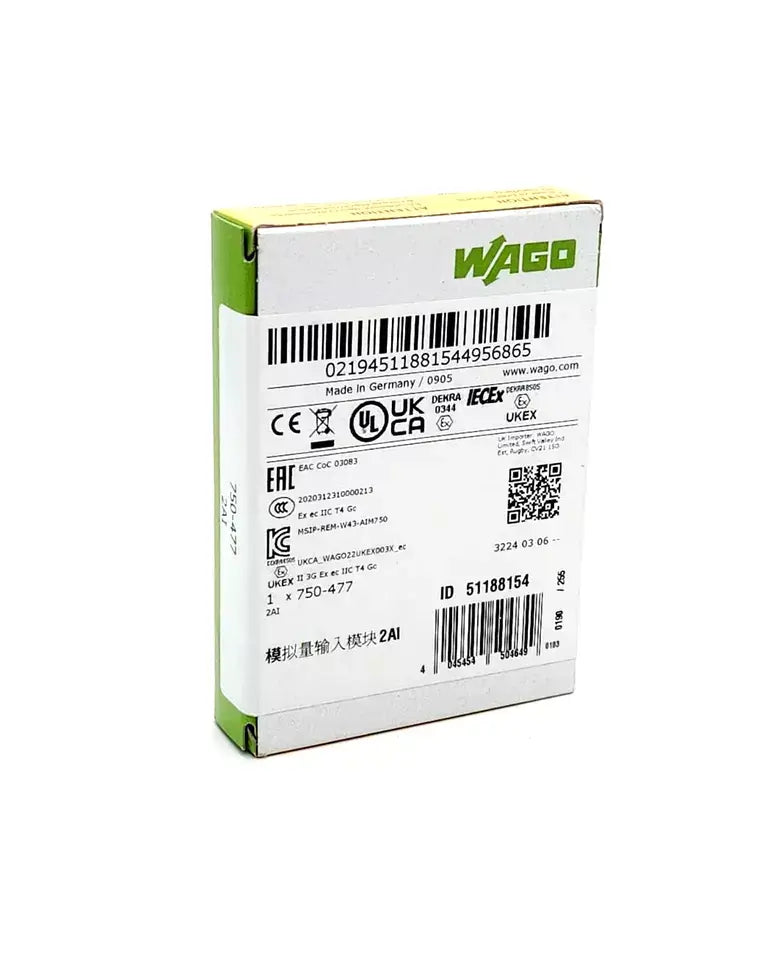

Wago 750-477 2-channel analog input AC/DC 0 … 10 V differential input
Wago 750-477 2-channel analog input AC/DC 0 … 10 V differential input
Regular price
€223,09 EUR
Regular price
Sale price
€223,09 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wago 750-477 2-channel analog input AC/DC 0 … 10 V differential input
- number of analog inputs 2
- Total number of channels (module) 2
- signal type Tension
- signal type voltage AC/DC 0 … 10 V
- sensor connection 2 x (2 conductors)
- signal characteristics differential
- resolution [bit] 15 bit
- data width 2 x 16 bit data; 2 x 8 bit control/status (optional)
- internal resistance 120kΩ
- Conversion time typ. 200ms
- measurement error, reference temperature 25°C
- Measurement error, maximum deviation from the measuring range end value 0.1%
- measurement error over entire temperature range ≤ ±0.6%
- temperature coefficient < ±110 ppm/K of the largest measuring range
- supply voltage system DC 5 V; via data contacts
- Power consumption system supply (5 V) 80mA
- supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
- process data 0.0 V corresponds to 0x0000; DC 20 V corresponds to 0x4E20
- potential separation 500 V system/field or channel/channel
- display elements LED (A, C) green: function AI 1, AI 2; LED (B, D) red: error AI 1, AI 2
- number of incoming service contacts 2
- Number of power contacts outgoing 2
