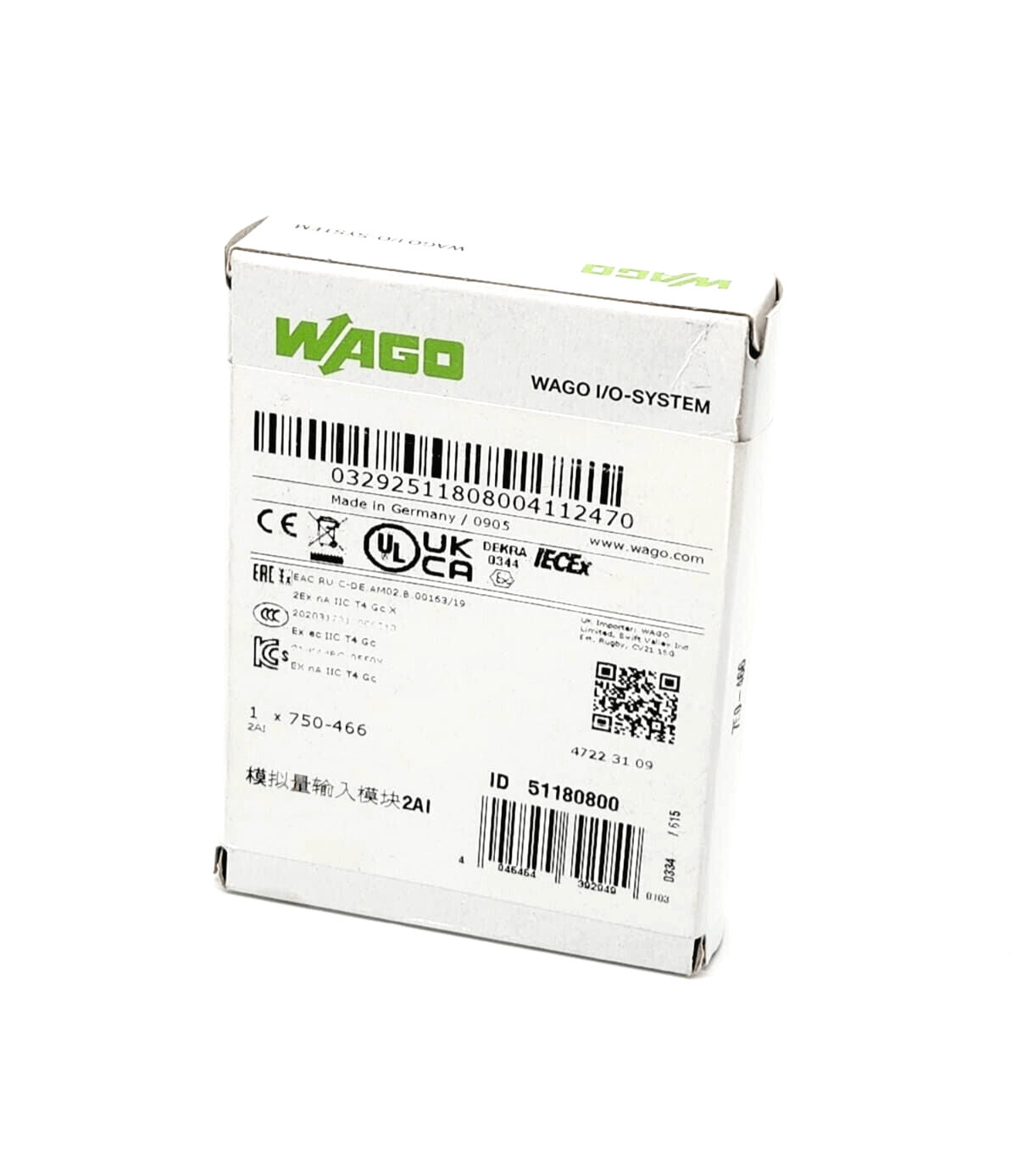

• Wago 750-466 2-Kanal-Analogeingang I/O-System packaging

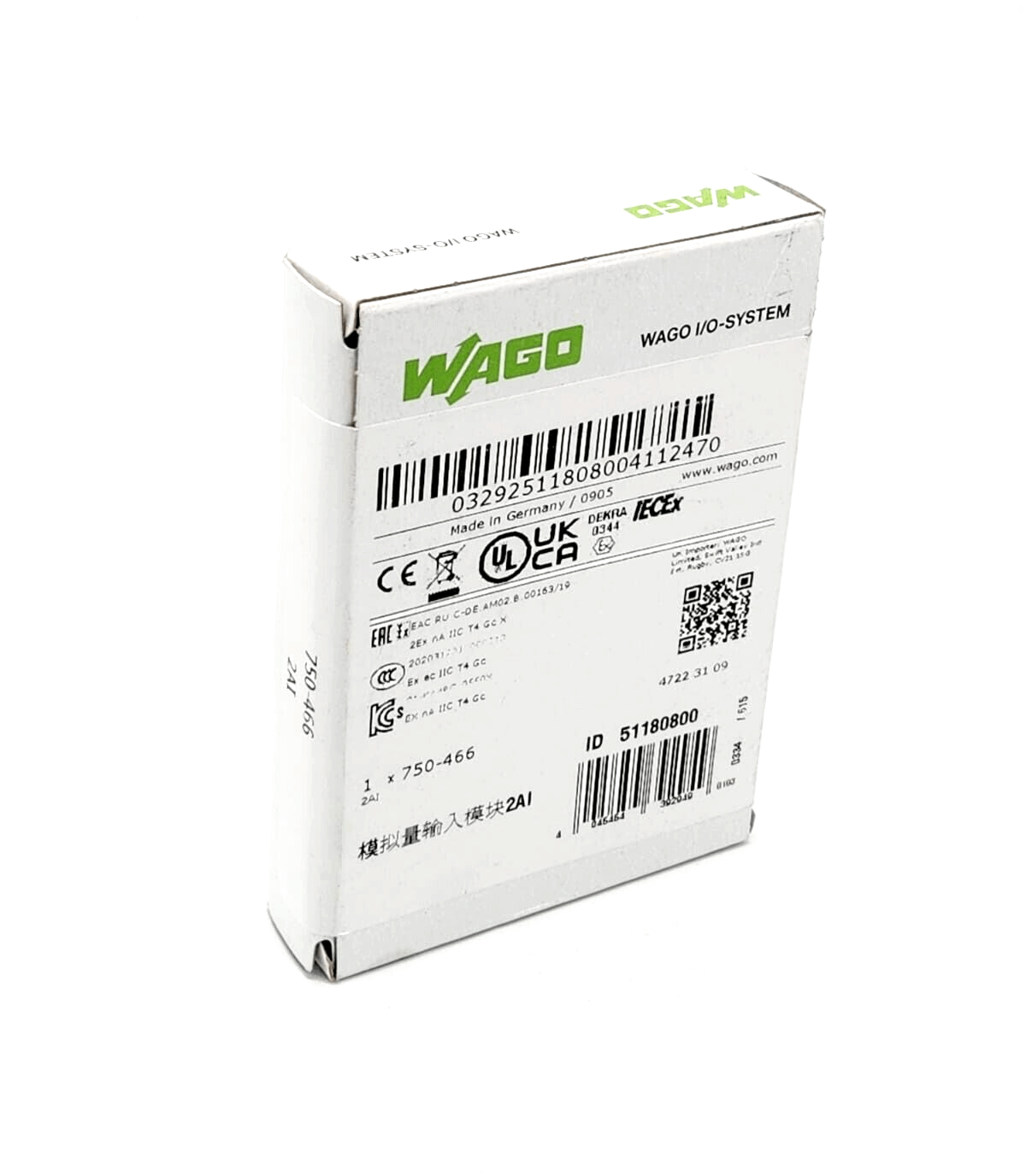

  • Packaging of Wago 750-466, 2-channel analog input, 4-20 mA, single-ended with product details and labels visible
1 2

Wago

Wago 750-466, 2-channel analog input, 4 ... 20 mA, single-ended

Wago 750-466, 2-channel analog input, 4 ... 20 mA, single-ended

€128,24 EUR
€128,24 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Wago 750-466, 2-channel analog input, 4 ... 20 mA, single-ended
  • number of analog inputs 2
  • Total number of channels (module) 2
  • signal type Electricity
  • signal type current DC 4 … 20 mA
  • sensor connection 2 x (2 conductors, 3 conductors)
  • input voltage max. 10 V
  • signal characteristics single-ended
  • resolution [bit] 12-bit
  • Input resistance max. 220Ω
  • data width 2 x 16 bit data; 2 x 8 bit control/status (optional)
  • Conversion time typ. 2ms
  • measurement error, reference temperature 25°C
  • Measurement error, maximum deviation from the measuring range end value 0.2%
  • Temperature error max. from the measuring range end value 0.01%/K
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 75mA
  • supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding via spring contact)
  • potential separation 500 V system/field
  • display elements LED (A, C) green: function AI 1, AI 2; LED (B, D) red: error AI 1, AI 2
  • number of incoming service contacts 2
  • Number of power contacts outgoing 2

3 in stock
