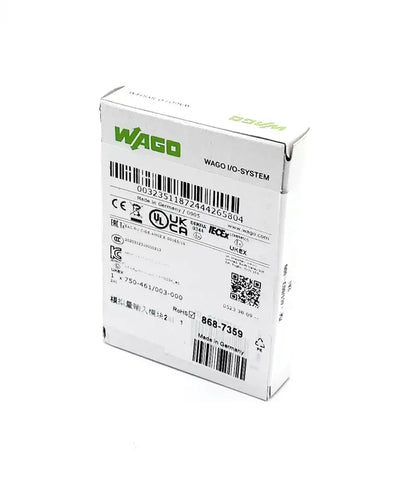

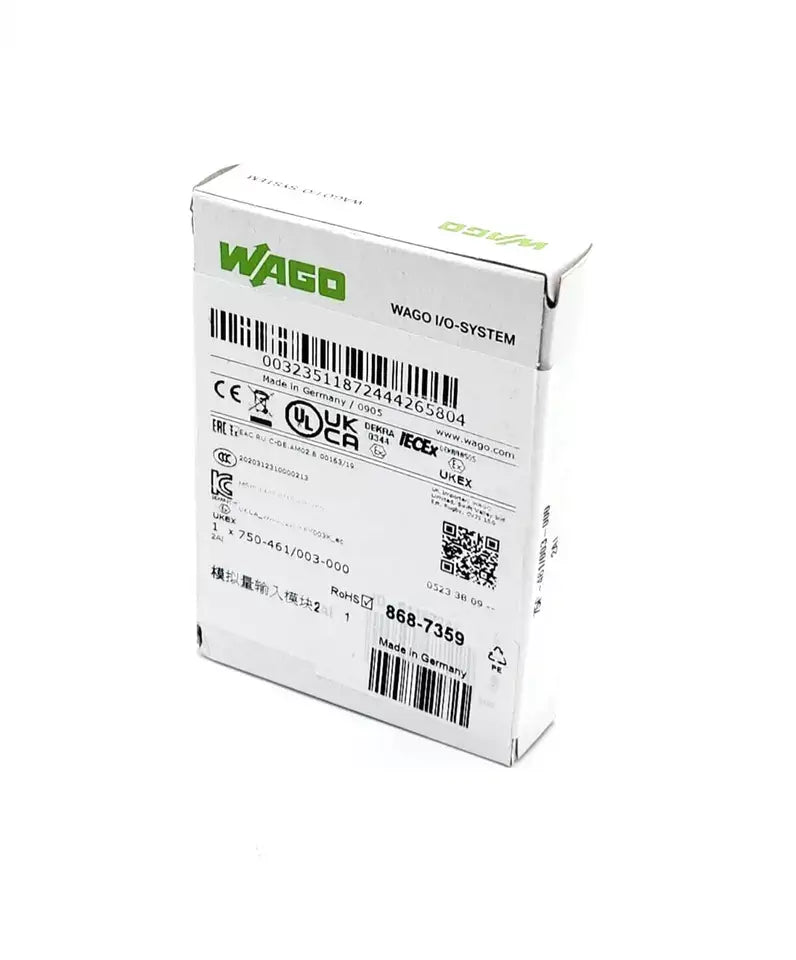

• Wago 750-461/003-000 Pt100-/RTD 2-Kanal-Analogeingang sealed product packaging

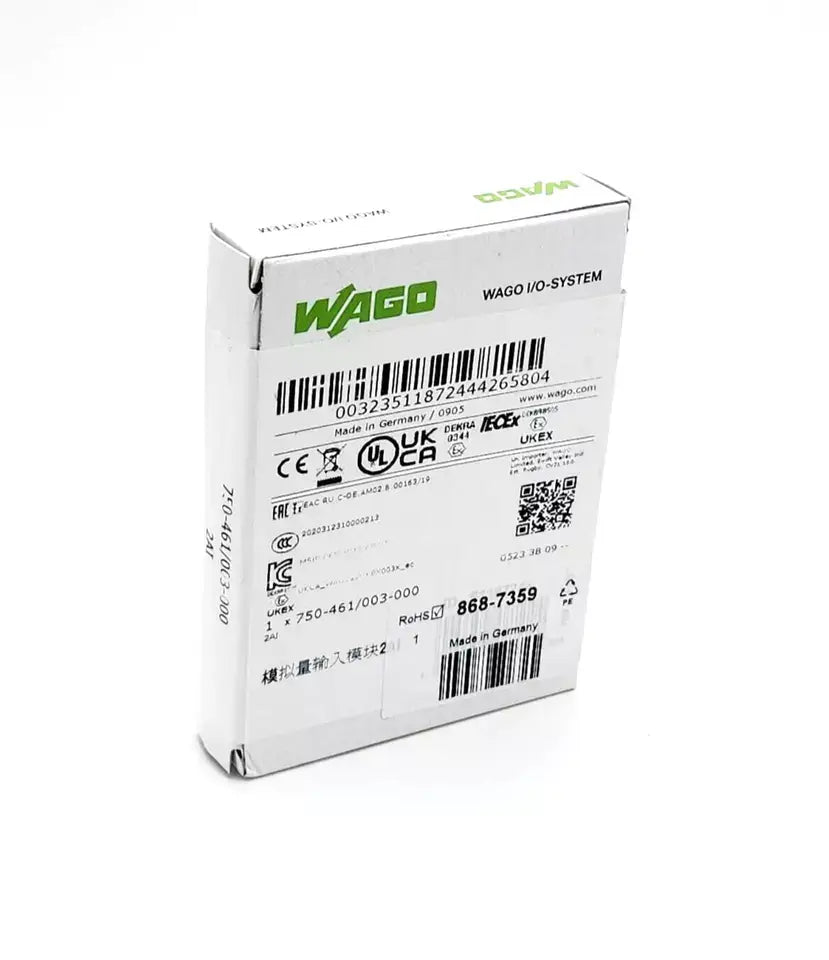

  • Wago 750-461/003-000 Pt100-/RTD 2-Kanal-Analogeingang | sealed packaging.
1 2

Wago

Wago 750-461/003-000, for resistance sensors, 2-channel analog input, Pt100-/RTD, adjustable

Wago 750-461/003-000, for resistance sensors, 2-channel analog input, Pt100-/RTD, adjustable

€237,99 EUR
€237,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Wago 750-461/003-000, for resistance sensors, 2-channel analog input, Pt100-/RTD, adjustable

  • number of analog inputs 2
  • Total number of channels (module) 2
  • signal type resistance measurement
  • signal type configurable Yes
  • sensor connection 2 x (2 conductors, 3 conductors)
  • data width 2 x 16 bit data; 2 x 8 bit control/status (optional)
  • resolution (over entire range) 0.1 °C
  • Conversion time typ. 320ms
  • measurement error, reference temperature 25°C
  • Measurement error, maximum deviation from the measuring range end value 0.2%
  • Temperature error max. from the measuring range end value 0.01%/K
  • Measuring current typ. 0.5 mA
  • Response delay max. 4s
  • sensor types Pt100; configurable: Pt, Ni, Ohm
  • temperature range -200 °C … +850 °C (Pt), -60 °C … +250 °C (Ni)
  • configuration options WAGO-I/O-CHECK
  • CODESYS library
  • e!COCKPIT
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 80mA
  • potential separation 500 V system/field
  • display elements LED (A, C) green: function AI 1, AI 2; LED (B, D) red: error AI 1, AI 2

1 in stock
