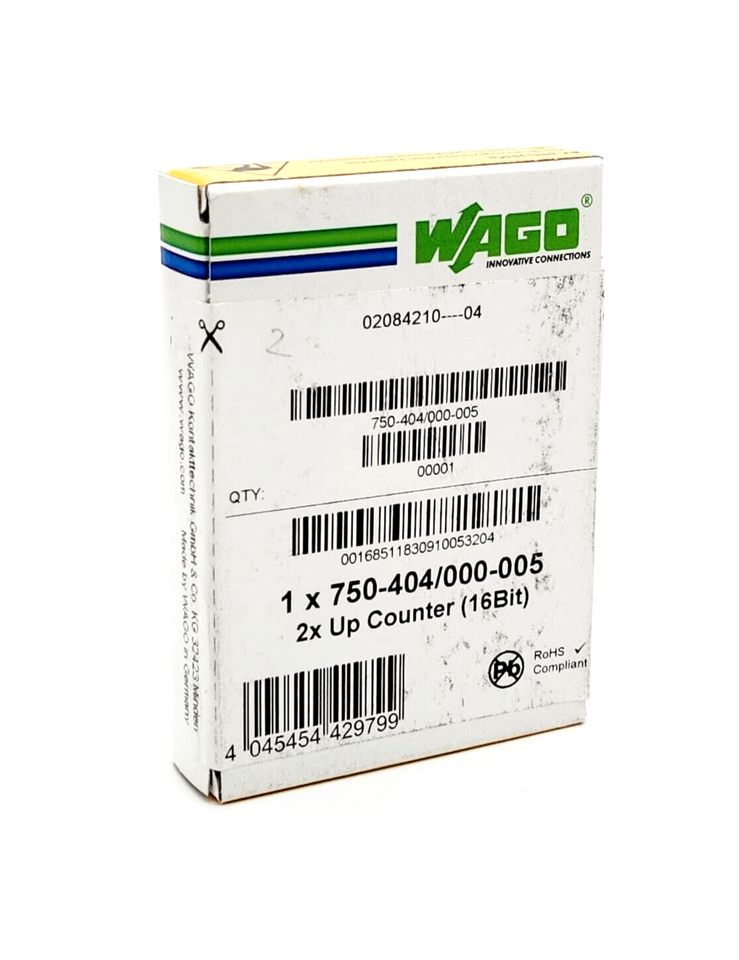

• Wago 750-404/000-005 2x Up Counter 16 Bit in packaging, showing product label and specifications.

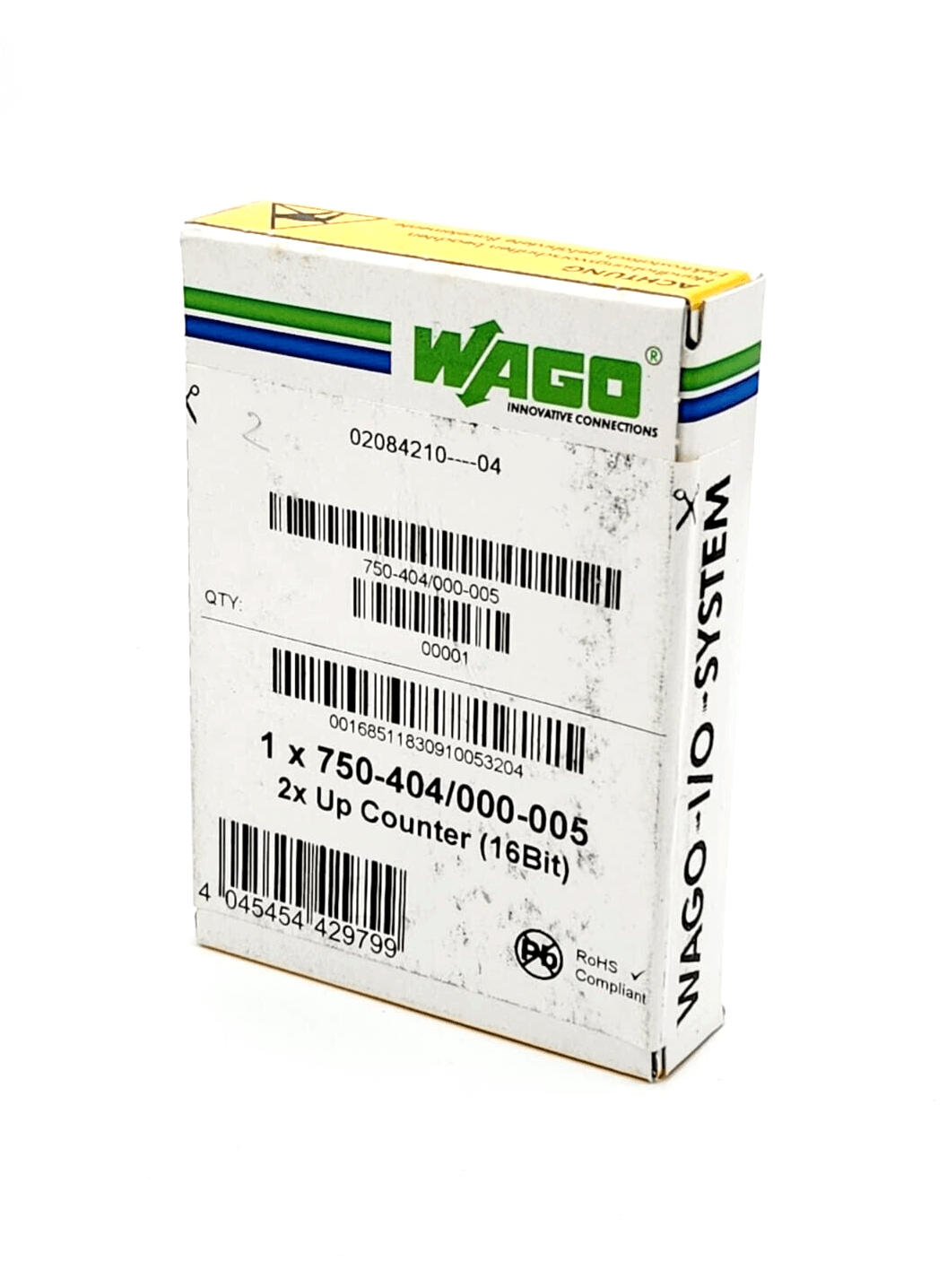

  • Wago 750-404/000-005 packaging showing 2x Up Counter (16Bit) with barcodes and product details.
1 2

Wago

Wago 750-404/000-005 2 Up Counter 16 Bit

Wago 750-404/000-005 2 Up Counter 16 Bit

€237,99 EUR
€237,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Wago 750-404/000-005 2 Up Counter 16 Bit

  • number of digital outputs 2
  • number of counters 2
  • signal type Tension
  • signal type voltage DC 24 V
  • meter depth 16-bit
  • Input current typ. 5 mA
  • output current per channel 0.5A
  • output current short-circuit proof
  • Switching frequency max. 5 kHz
  • Voltage range for signal (0) DC −3 … +5 V
  • Voltage range for signal (1) DC 15 … 30 V
  • data width 32 bit data; 8 bit control/status
  • supply voltage system DC 5 V; via data contacts
  • current consumption system supply (5 V) 70mA
  • supply voltage field DC 24 V (-15 … +20 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
  • potential separation 500 V system/field
  • display elements LED (AD) green: status CLOCK 2, DO 1, CLOCK 1, DO 2
  • number of incoming service contacts 2
  • Number of power contacts outgoing 2

1 in stock
