Wago

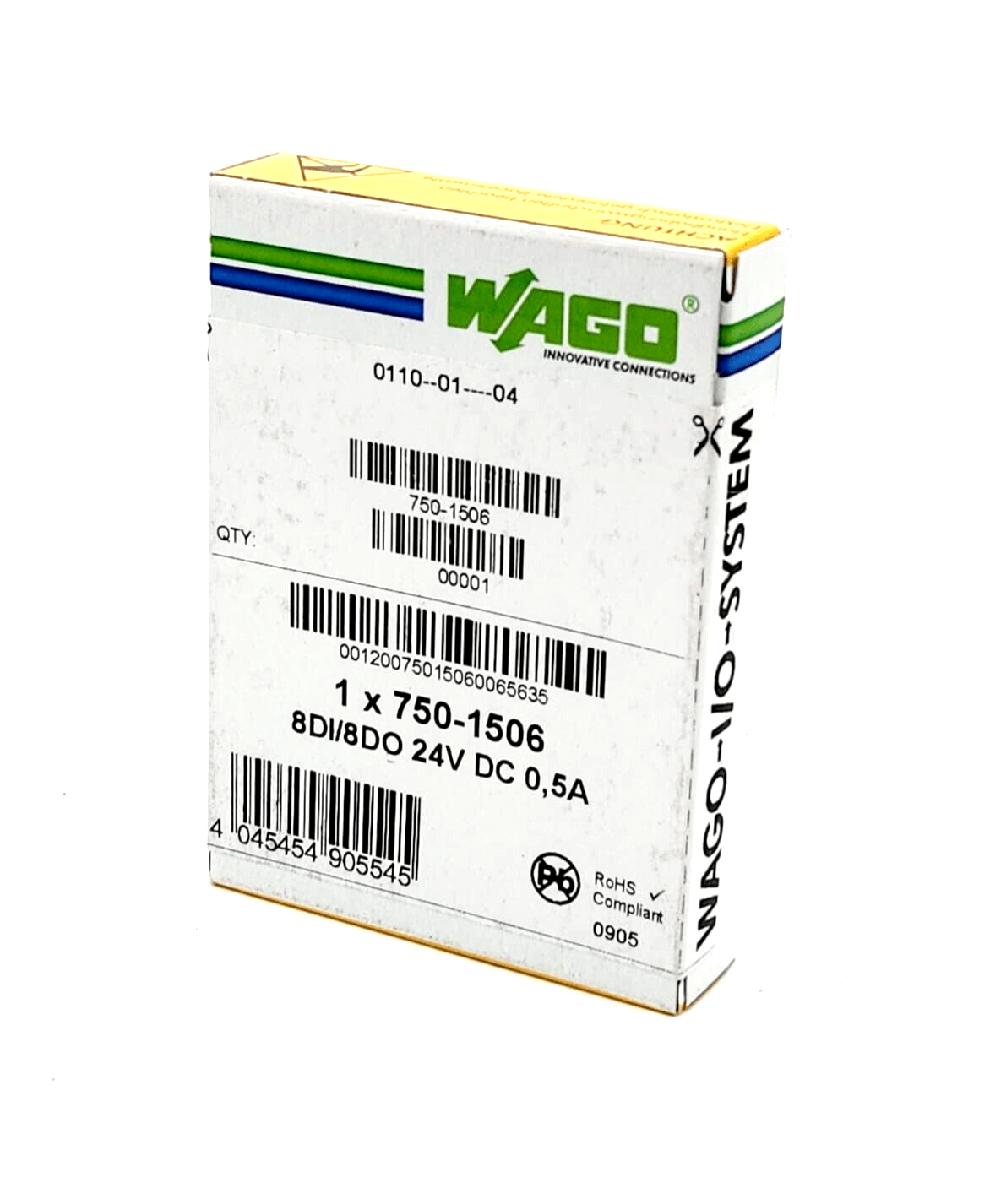

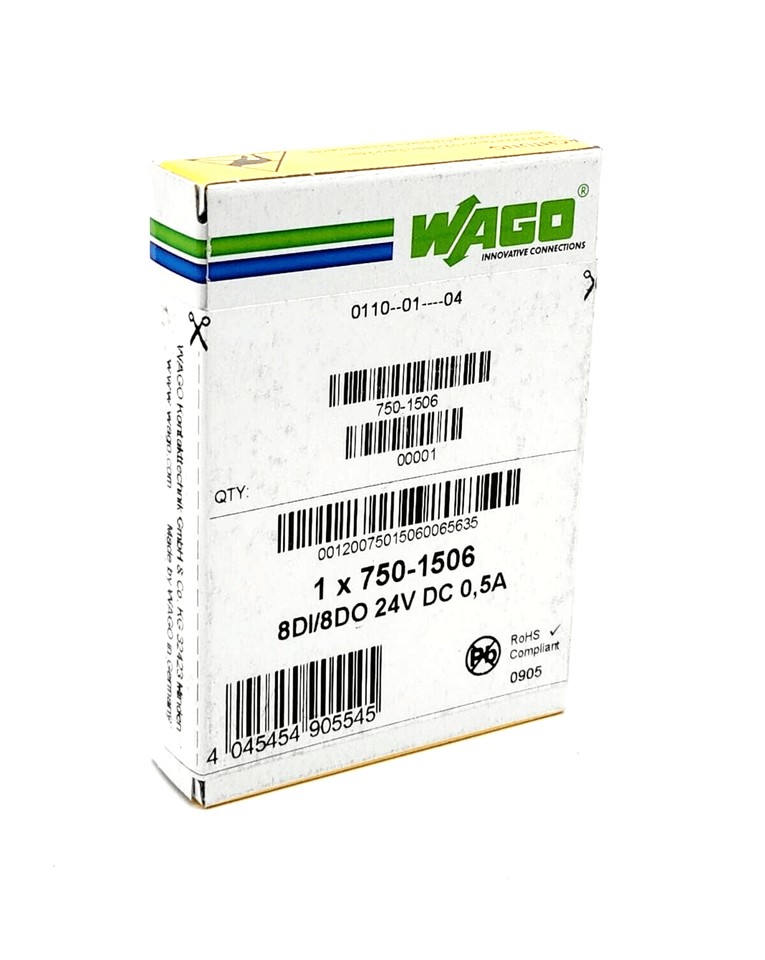

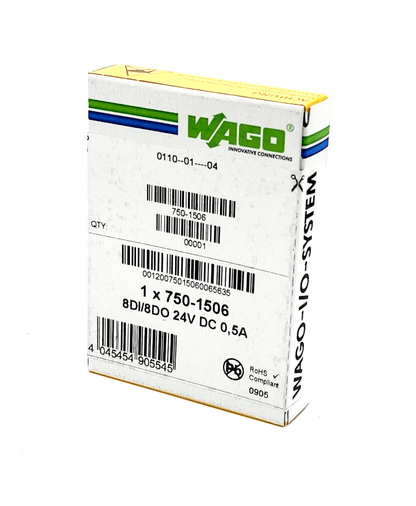

Wago 750-1506 DC 24 V 0.5 A 8-channel digital input/output
Wago 750-1506 DC 24 V 0.5 A 8-channel digital input/output
Regular price
€161,49 EUR
Regular price
Sale price
€161,49 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wago 750-1506 DC 24 V 0.5 A 8-channel digital input/output
- number of digital inputs 8
- number of digital outputs 8
- Total number of channels (module) 16
- signal type Digital
- Tension
- signal type voltage DC 24 V
- sensor connection 8 x (1 conductor)
- actuator connection 8 x (1 conductor)
- input characteristics positive switching
- input filter (digital) 3ms
- 3ms
- Input current per channel at signal (0) typ. 0.6mA
- Input current per channel at signal (1) typ. 2.4mA
- Input current per channel at signal (1) min. 2.2mA
- Input current per channel for signal (1) max. 2.5mA
- output characteristics positive switching
- output current per channel 0.5A
- output current short-circuit proof
- Switching frequency max. 1 kHz
- load type ohmic, inductive, lamp load
- Voltage range for signal (0) DC −3 … +5 V
- Voltage range for signal (1) DC 15 … 30 V
- Data width input data (internal) max. 8-bit
- Data width output data (internal) max. 8-bit
- supply voltage system DC 5 V; via data contacts
- current consumption system supply (5 V) 30mA
- supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
- Current consumption field supply (module without external load) 16mA
- potential separation 500 V system/field
- display elements LED (1-8) green: Status DI 1 … DI 8; LED (9-16) green: Status DO 1 … DO 8
- number of incoming service contacts 2
- Number of power contacts outgoing 2
- current carrying capacity of the power contacts 10A
Share
2 in stock
