Wago

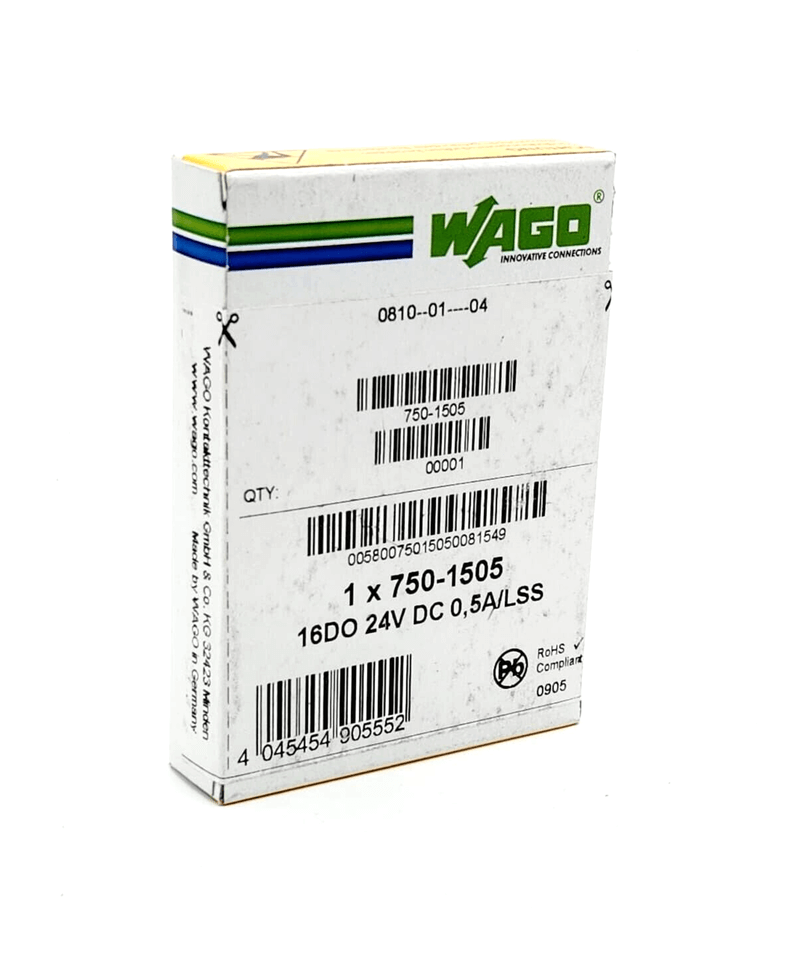

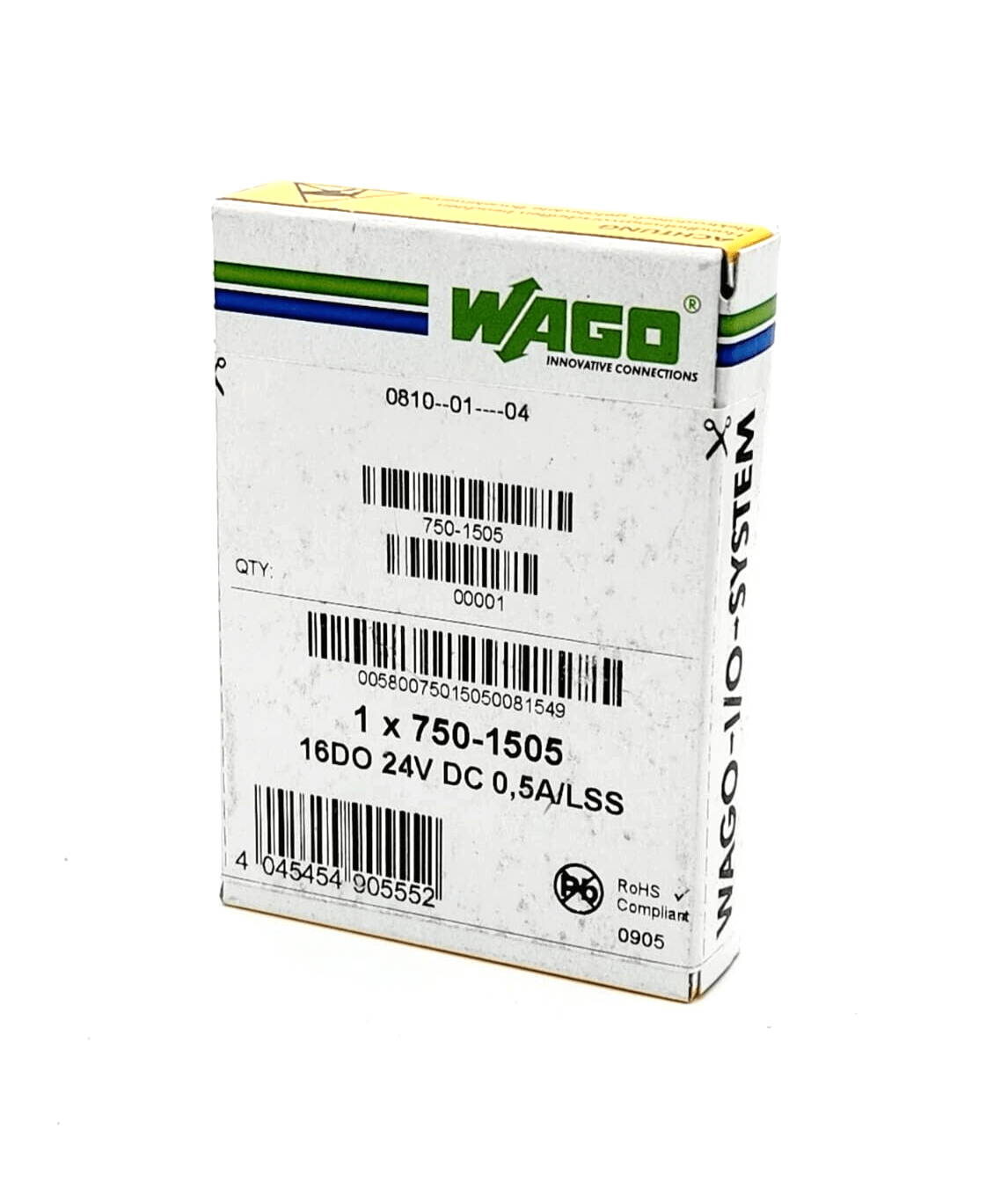

Wago 750-1505 Negative switching 16-channel digital output DC 24 V 0.5 A
Wago 750-1505 Negative switching 16-channel digital output DC 24 V 0.5 A
Regular price
€75,99 EUR
Regular price
Sale price
€75,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wago 750-1505 Negative switching 16-channel digital output DC 24 V 0.5 A
- number of digital outputs 16
- Total number of channels (module) 16
- signal type Digital
- signal type voltage DC 24 V
- actuator connection 16 x (1 conductor)
- output characteristics negative switching
- output current per channel 0.5A
- output current short-circuit proof
- Switching frequency max. 1 kHz
- load type ohmic, inductive, lamp load
- Data width output data (internal) max. 16-bit
- supply voltage system DC 5 V; via data contacts
- current consumption system supply (5 V) 40mA
- supply voltage field DC 24 V (-25 … +30 %); via power contacts (supply via blade contact; forwarding (only field side supply voltage) via spring contact)
- Current consumption field supply (module without external load) 11mA
- potential separation 500 V system/field
- display elements LED (1-16) green: status DO 1 … DO 16
- number of incoming service contacts 2
- Number of power contacts outgoing 2
- current carrying capacity of the power contacts 10A
Share
1 in stock
