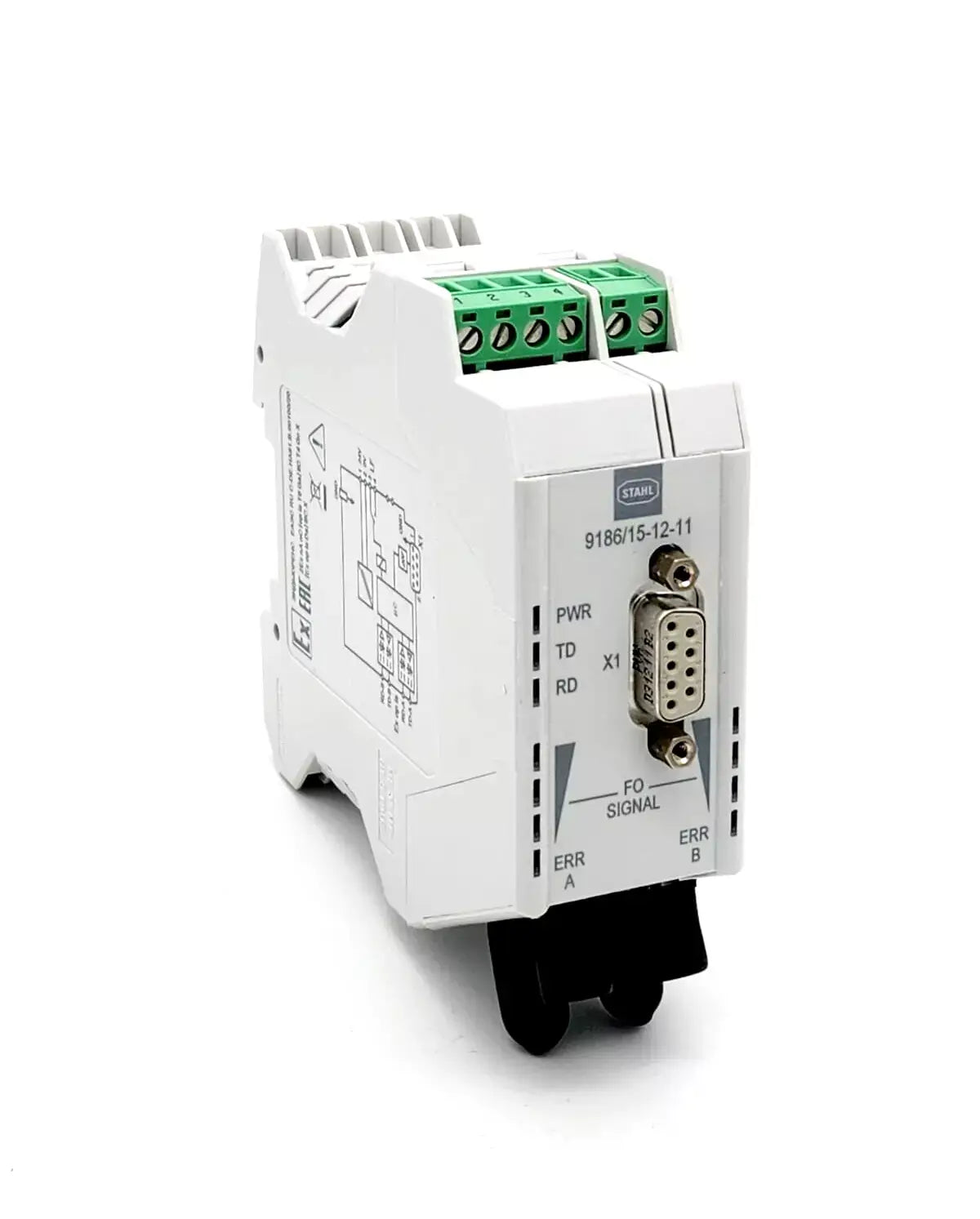

STAHL 160624 LWL fieldbus isolating transformer 9186/15-12-11

• Type: 9186/15-12-11
• Max. voltage Ui connection RS485IS: -
• Nominal voltage: 24 V DC
• Rated current: 130 mA
• Power consumption: 3 W
• LFD Relay: Yes
• Interfaces field side: Ex opis

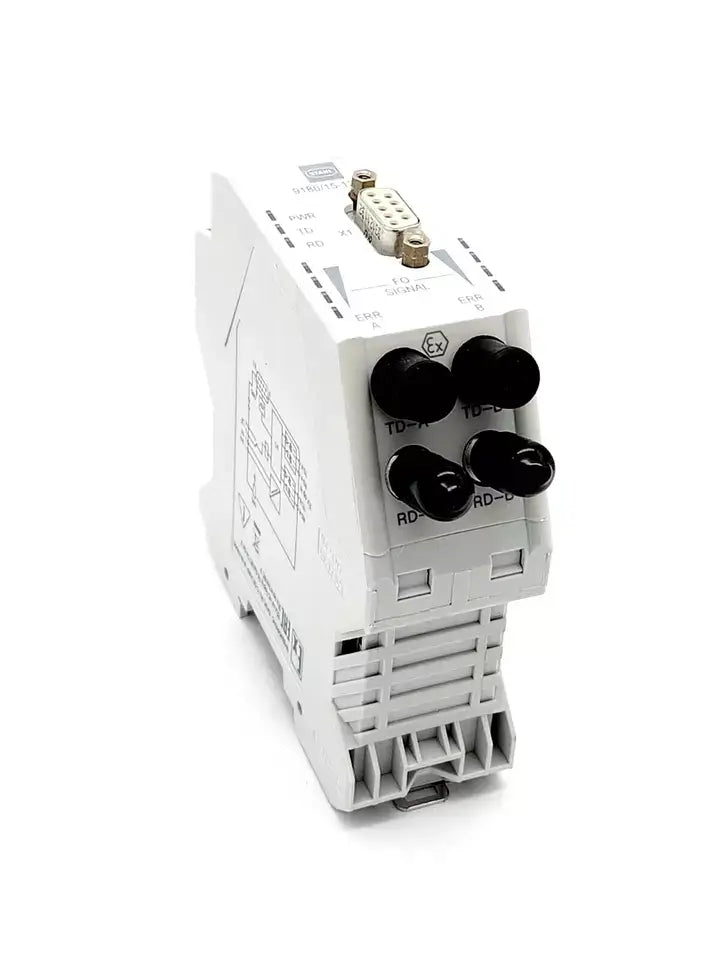

• Connection Opt. Interface: ST®, BFOC/2.5 socket

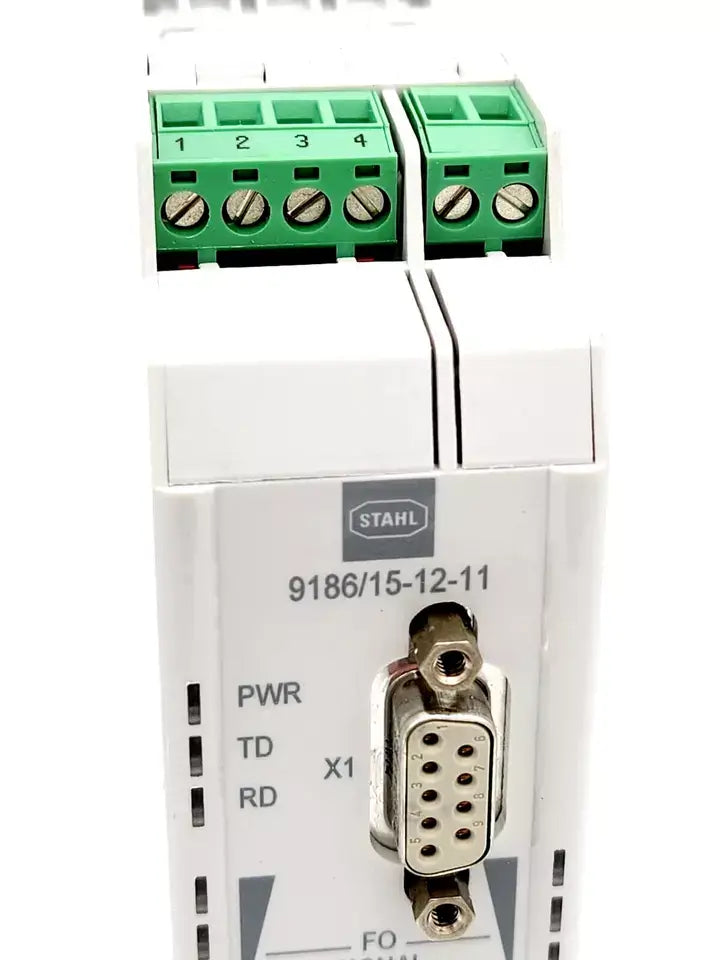

• Connection electrical interface: Sub-D socket X1, 9-pin
• Electrical interface design: RS 485
• Protocols: HART over RS485, Modbus RTU, PROFIBUS DP, ServiceBus R.STAHL (IS1+)
• Ambient temperature min.: -20 °C
• Ambient temperature max.: +60 °C
• Application area (zones): 2
• Gas explosion protection: II 3 (1) G Ex nA nC [op is T6 Ga] IIC T4 Gc
• Dust explosion protection: II (1) D [Ex op is Da] IIIC
