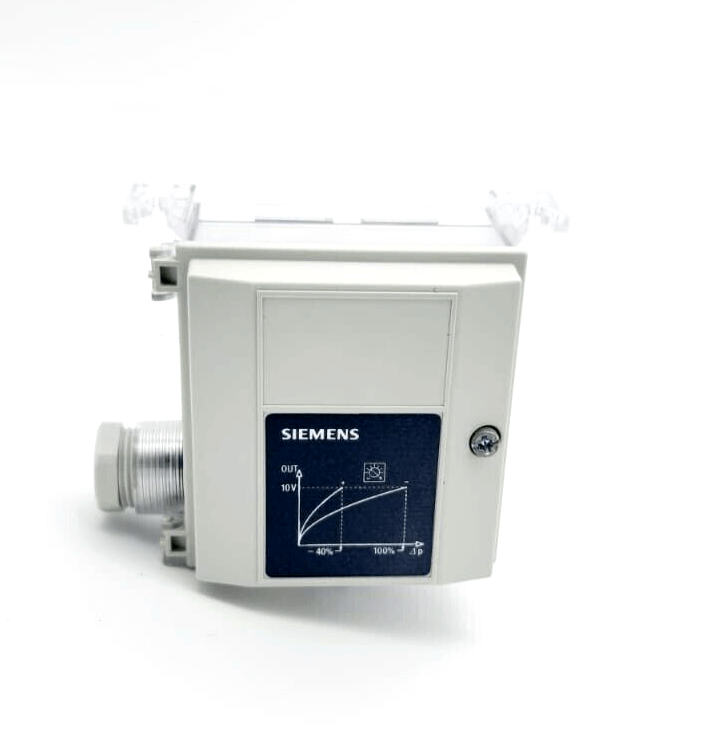

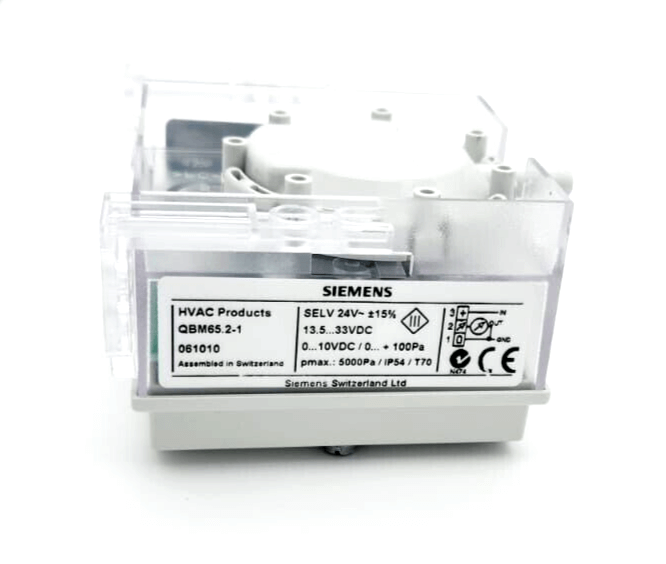

Siemens QBM65.2-1 air duct pressure difference sensor 0...100 Pa
For air and non-aggressive gases, for the highest accuracy and quality requirements. With membrane sensor element.
Available with pressure-linear or pressure-rooted characteristic curve and digital display. Adjustable pressure measuring range with pressure-rooted characteristic curve.
additional information
In addition to CE, UL and CSA approved.

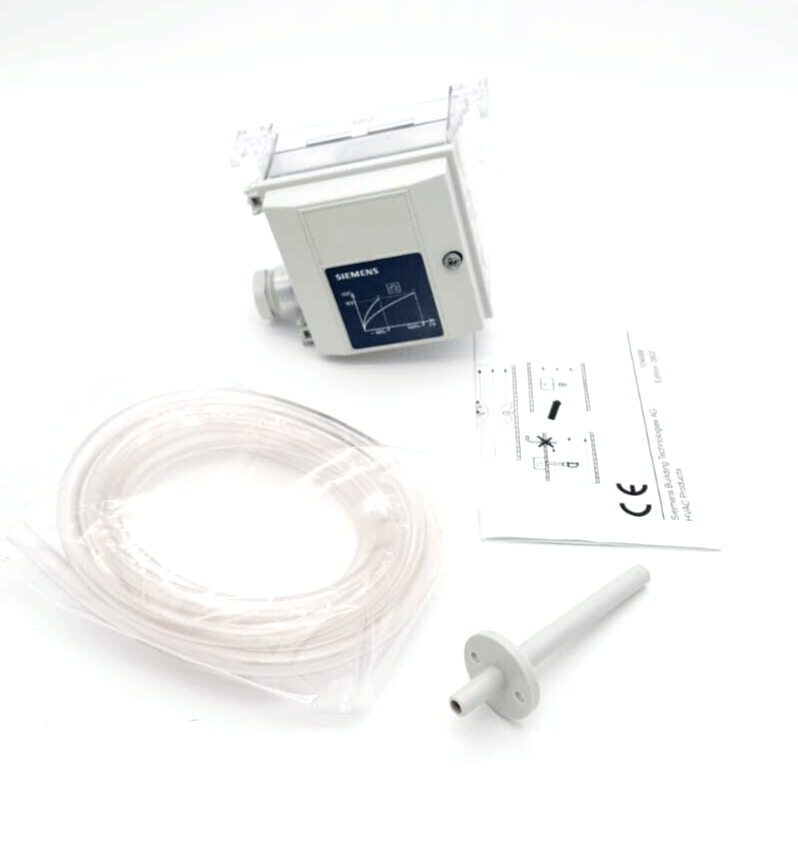

2 m PVC connection hose included.
Analog outputs Signal DC 0...10 V
Operating voltage AC 24 V, DC 13.5...33 V
Power consumption 0.5 VA
measuring element pressure membrane
pressure connection nozzle ∅ 6.2 mm
Electrical connection screw terminals
response time <10 ms
Installation position membrane vertical, pressure connection downwards
