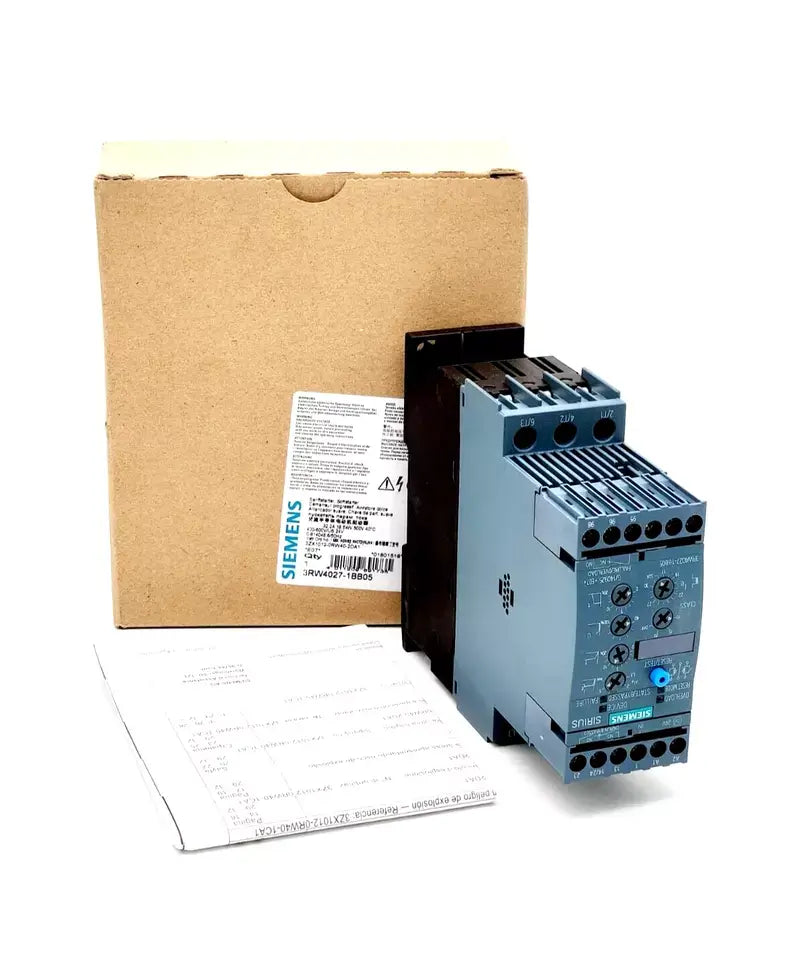

Siemens 3RW4027-1BB05 SIRIUS soft starter S0 32 A 18.5 k kW/500 V

Technical data:

• Article number: 3RW4027-1BB05
• Rated operating current: 32 A at 40 °C
• Engine power:
  • 15 kW at 400 V
  • 18.5 kW at 500 V
• Operating voltage: 400–600 V AC
• Control supply voltage: 24 V AC/DC
• Connection type: screw terminals
• Integrated bypass: Yes, for reduced power loss and compact design
• Protective functions:
  • motor overload protection
  • Adjustable current limit during start-up
  • remote reset function
• Dimensions (W x H x D): 45 mm x 125 mm x 155 mm
• Assembly: screw and snap mounting on DIN rail
• Protection class: IP20
