• Sick 6026148 UE23-2MF2A3 Sicherheitsrelais in packaging, safety relay for industrial use, meets EN ISO 13849 standards, 230V AC.

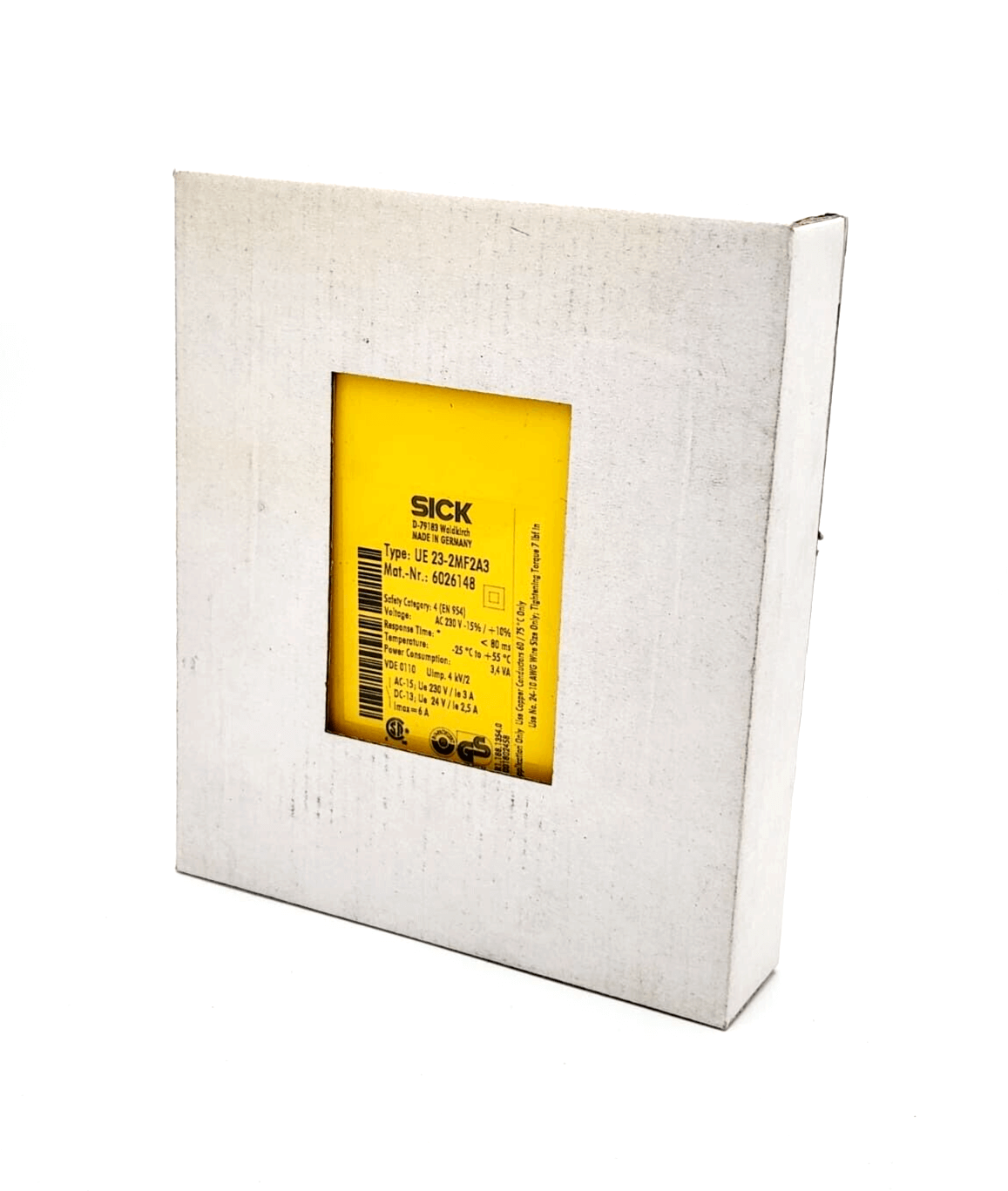

  • Box packaging for Sick 6026148 UE23-2MF2A3 safety relay, showcasing the brand logo and shipping label.
  • Sick Safety product packaging with logo and slogan "More Than a Product" on a box.
1 3

SICK

Sick 6026148 UE23-2MF2A3 safety relay

Sick 6026148 UE23-2MF2A3 safety relay

€284,99 EUR
€284,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Sick 6026148 UE23-2MF2A3 safety relay

  • category Category 3 (EN ISO 13849)
  • performance level PL d (EN ISO 13849)
  • TM (service life) 20 years (EN ISO 13849)
  • protection class II, safe separation (EN 50178)
  • supply voltage UV A1, A2
  • 230 V AC (196 V AC ... 253 V AC)
  • power consumption (≤ 3 VA)
  • overvoltage category III
  • rated insulation voltage Ui 300 V AC
  • rated impulse withstand voltage Uimp 6 kV
  • test voltage 3.5 kV (50 Hz) (EN 60439-1)
  • control voltage (≤ 40 V DC)
  • control current ≤ 20 mA
  • short-circuit current ≤ 250 mA
  • short-circuit protection PTC resistor
  • reset time
  • Manually ≤ 70 ms
  • Automatically ≤ 600 ms
  • Galvanic decoupling ✔
  • Dimensions (W x H x D) 22.5 mm x 123 mm x 93.5 mm
  • degree of contamination 3 (EN 50178)
  • Weight 0.27 kg

1 in stock
