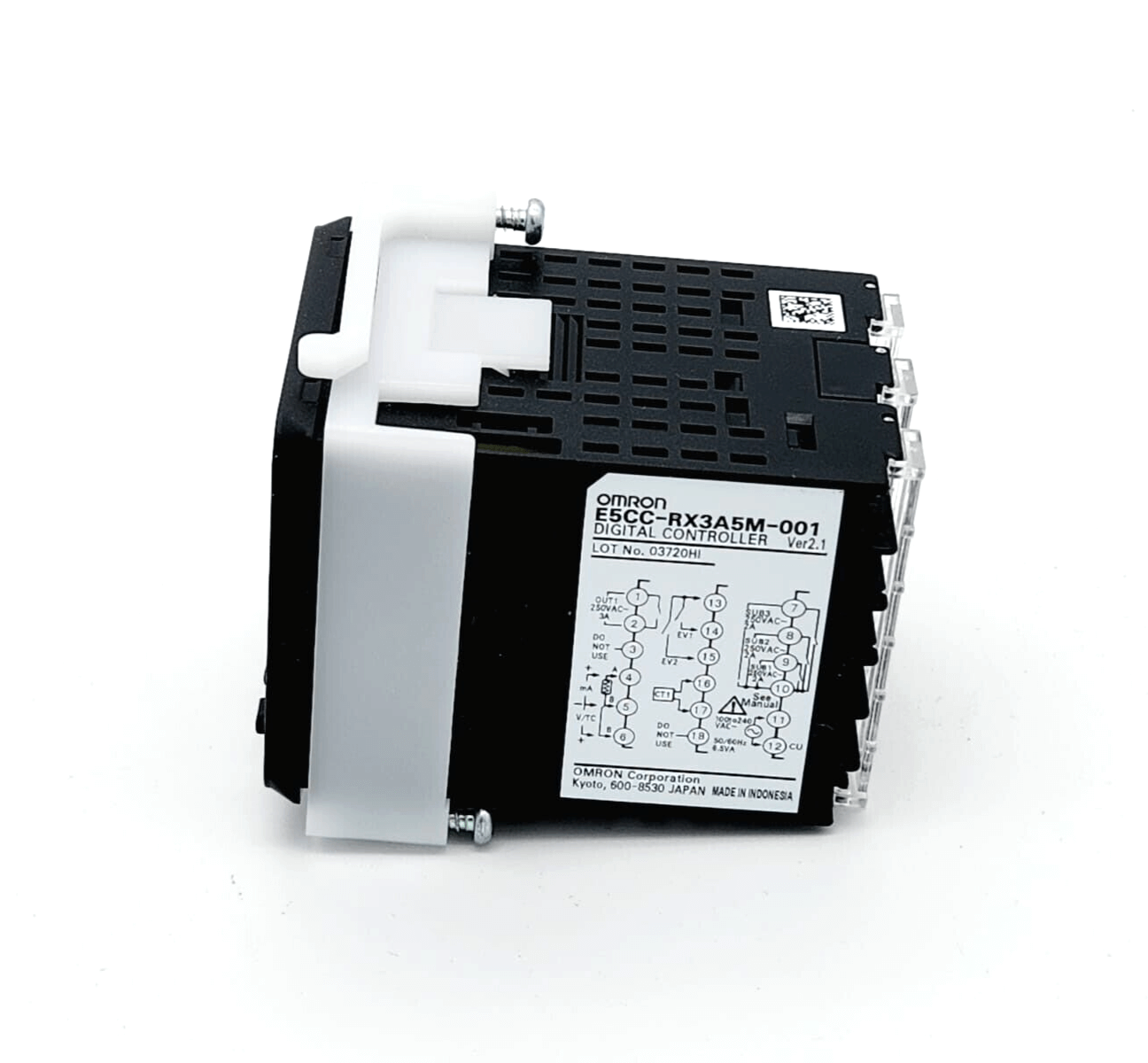

• Omron E5CC-RX3A5M-001 temperature controller, 1/16 DIN, digital display with relay output, used for precise temperature regulation.

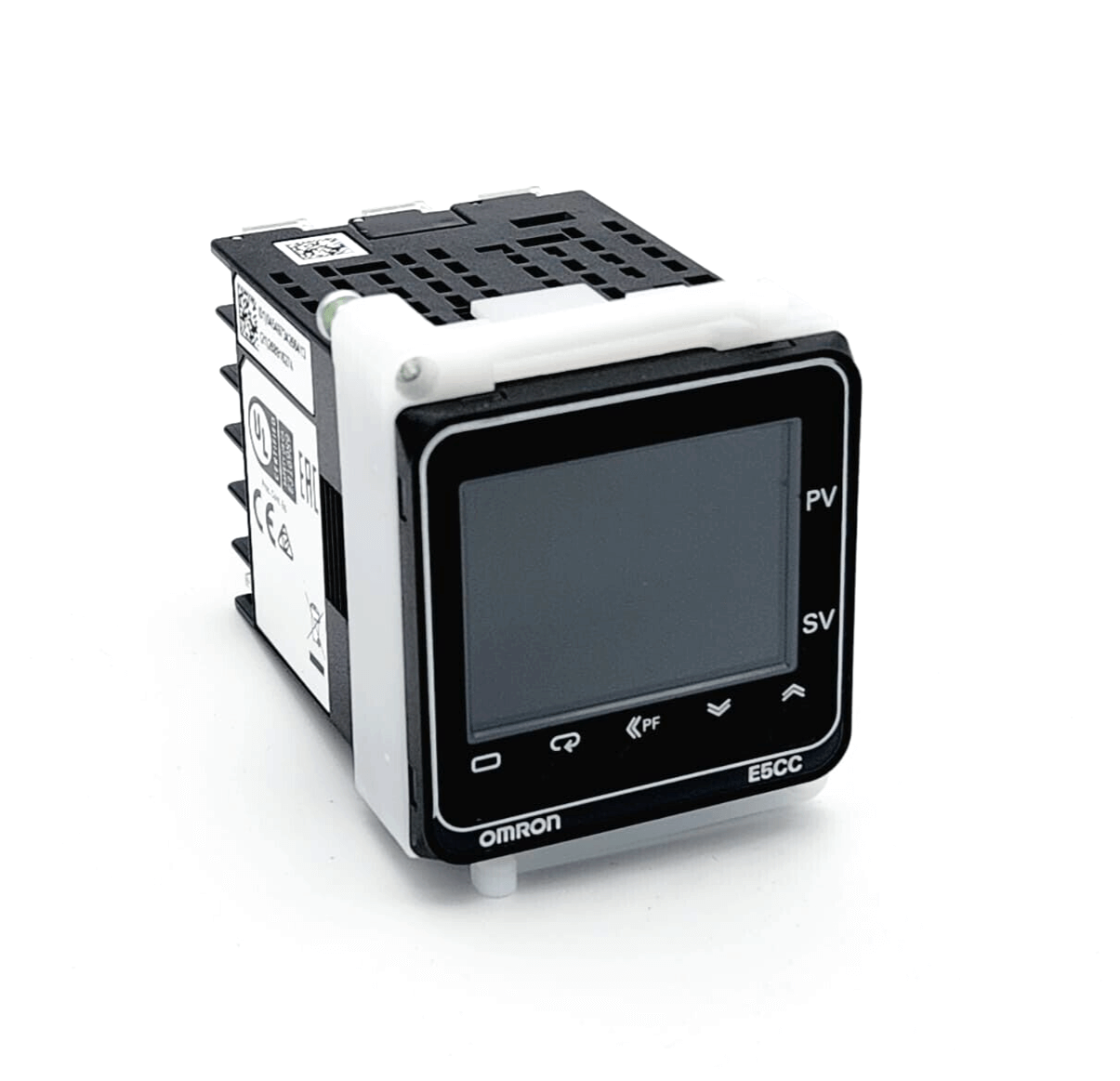

  • Omron E5CC-RX3A5M-001 temperature controller, 1/16 DIN size, 1 relay output, shown on white background.

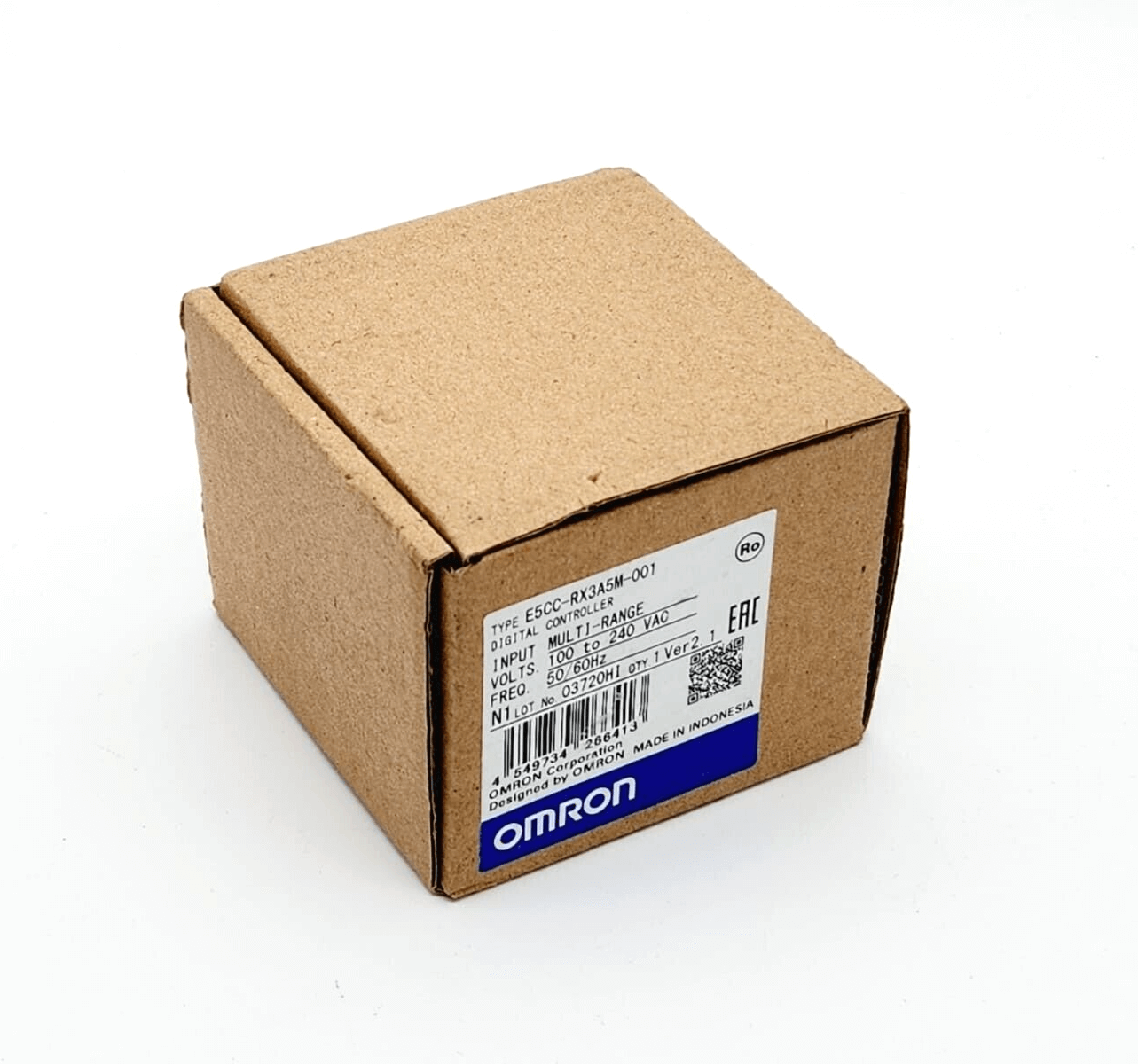

  • Omron E5CC-RX3A5M-001 temperature controller packaging with product label visible
1 3

Omron

Omron E5CC-RX3A5M-001 temperature controller, 1/16 DIN (48x48 mm), 1 relay output

Omron E5CC-RX3A5M-001 temperature controller, 1/16 DIN (48x48 mm), 1 relay output

€174,99 EUR
€174,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Omron E5CC-RX3A5M-001 temperature controller

1/16 DIN (48x48 mm), 1 relay output, 3 AUX, 2 event input, heater burnout and SSR failure alarm, 100-240 VAC
  • Size 1/16 DIN (48 x 48 mm)
  • functions HB/HS alarm for 1-phase heaters, ON/OFF control, PID control
  • number of control loops 1
  • type of temperature input B, C (WRe5-26), E, ​​J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • temperature range -200-2300 °C
  • number of event inputs 2
  • number of alarm outputs 3
  • supply voltage AC 100-240 V
  • control output relay
  • terminal screw

1 in stock

View full details
