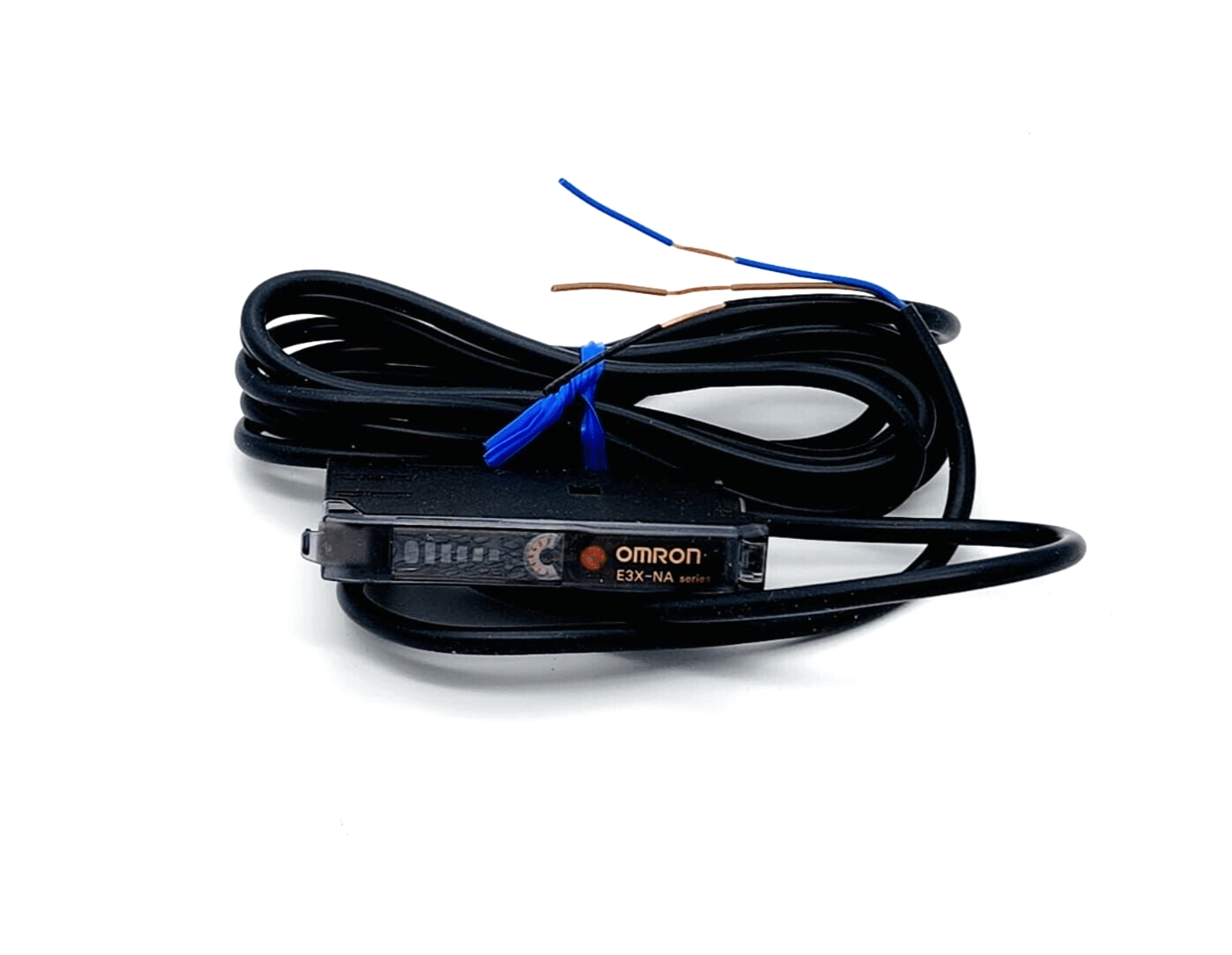

Photo switch - fiber optic amplifier with bar display - 10mm wide PBT housing, DIN rail mounting - red LED, up to 200µs, 12..24VDC, PNP, LON/DON - 2m PVC cable - 1 switching output - 8-turn potentiometer for precise adjustment - Long-term stability d

• Form cuboid, mounting on rail
• detection method amplifier
• Setting method Manual setting
• connection method cable
• cable length 2 m
• output type PNP
• Operating mode dark operation, light operation
• response time 0.2 ms
• housing material PBT
• Product width (unpacked) 10 mm
• Product height (unpacked) 31.5 mm
• Product length (unpacked) 64.3 mm
• Type of lighting Polarity-free red light
• supply voltage 12-24 V
• Functions Timer
• Application Object Recognition
• Number of channels 1
• protection class (IP) IP50
• Number of digital outputs 1
