Technical data:

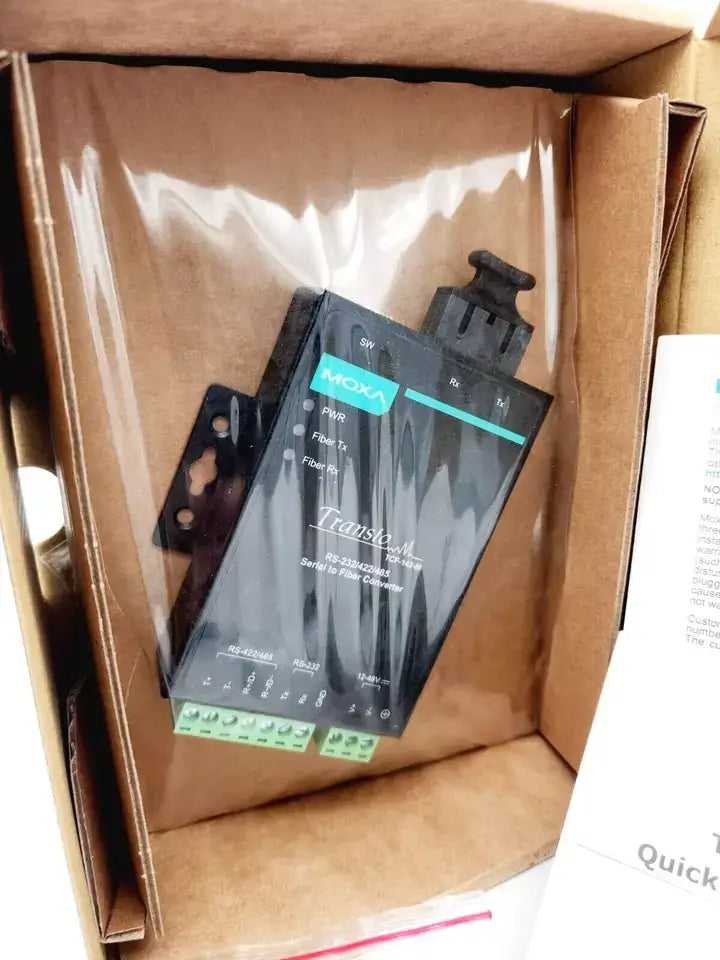

• Model : Moxa TCF-142-M-SC-T
• Serial interfaces :
  • RS-232
  • RS-422/485
• Interface speed : Up to 921.6 kbps
• Fiber optic interface :
  • Type: Multimode
  • Connection: SC
• Maximum range :
  • Multimode: Up to 5 km
• Wavelength : 850 nm
• Operating voltage : 12 to 48 VDC
• Power consumption : Max. 100 mA @ 12 VDC
• Operating temperature :
  • Standard model: -40 to 75°C
• Dimensions : 30 x 75.2 x 85 mm (WxHxD)
• Protection class : IP30
• Certifications :
  • CE
  • FCC
  • UL/cUL
  • RoHS
• Transmission mode : half-duplex/full-duplex
• LED indicators :
  • PWR, Tx, Rx, RTS (for RS-232), TD, RD, CTS
• EMC : EN 55022 Class A, EN 55024, EN 61000-4-2 (ESD), EN 61000-4-4 (Burst), EN 61000-4-5 (Surge)

Functionality:

• The Moxa TCF-142-M-SC-T can convert both RS-232 and RS-422/485 signals to fiber optic, making it possible to transmit serial data over longer distances while reducing electromagnetic interference (EMI).
• It provides reliable and secure communication in industrial environments that are temperature sensitive or subject to high EMI conditions.
