General information:

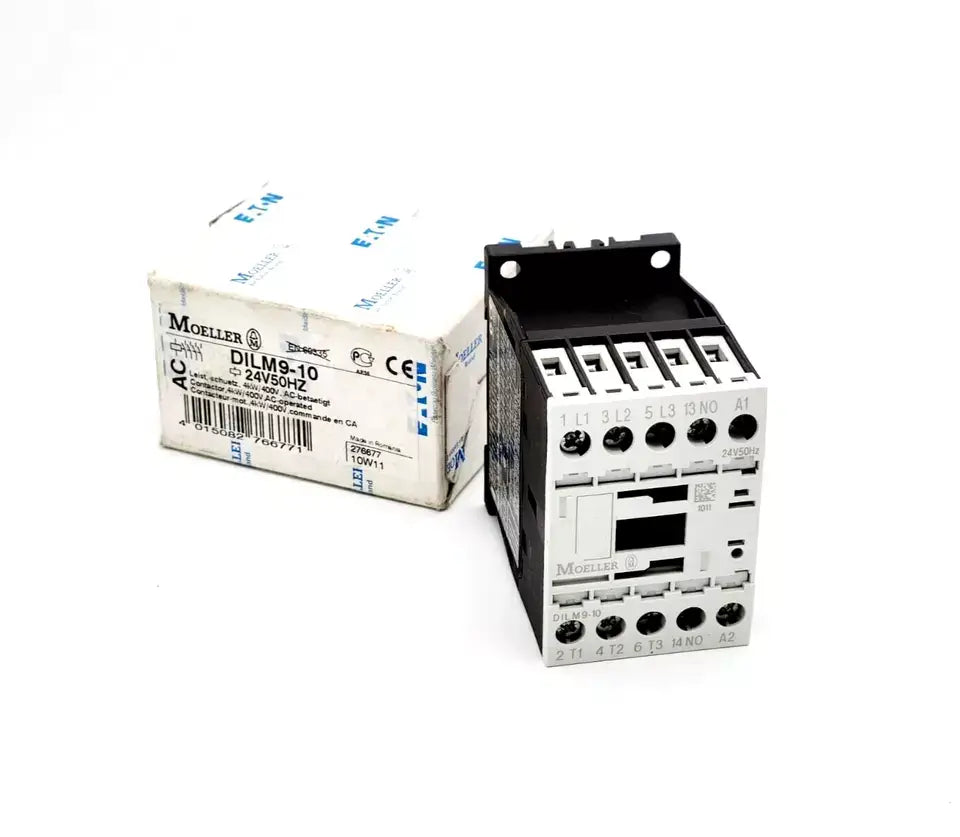

• Product name: power contactor
• Manufacturer: Eaton (typical for DILM series, please confirm)
• Type: DILM9-10
• actuation voltage: 24 V AC, 50 Hz
• Switching capacity:
  • 4 kW (at 380 V / 400 V AC)
• Number of poles: 3-pole (main contacts)
• Help contact: 1 normally open contact (1 S)
• Connection type: screw terminals

Characteristics:

• Application area:
  • engine control and protection
  • Switching of three-phase motors up to 4 kW
• Coil voltage:
  • 24 V AC, 50 Hz
• Rated operating current: Typically 9 A (depending on application)

Mechanical and electrical details:

• Assembly:
  • direct assembly
  • Possibility of DIN rail mounting or screw mounting
• Environmental conditions:
  • Suitable for industrial applications
