• Kieback & Peter FBM018 Eingabe-Modul wird in der Gebäudeautomation eingesetzt, um Sensoren und Signale in Feldbus-Systeme einzubinden.
  • Kieback & Peter FBM018 Eingabe-Modul Feldbus I/O-Modul mit digitalen/analogen Eingängen und Feldbus-Schnittstelle, neu und originalverpackt.
  • Kieback & Peter FBM018 Eingabe-Modul Feldbus I/O-Modul for field signal detection, new condition, original packaging
1 3

Kieback & Peter

Kieback & Peter FBM018 input module fieldbus

Kieback & Peter FBM018 input module fieldbus

€144,49 EUR
€144,49 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

2 in stock

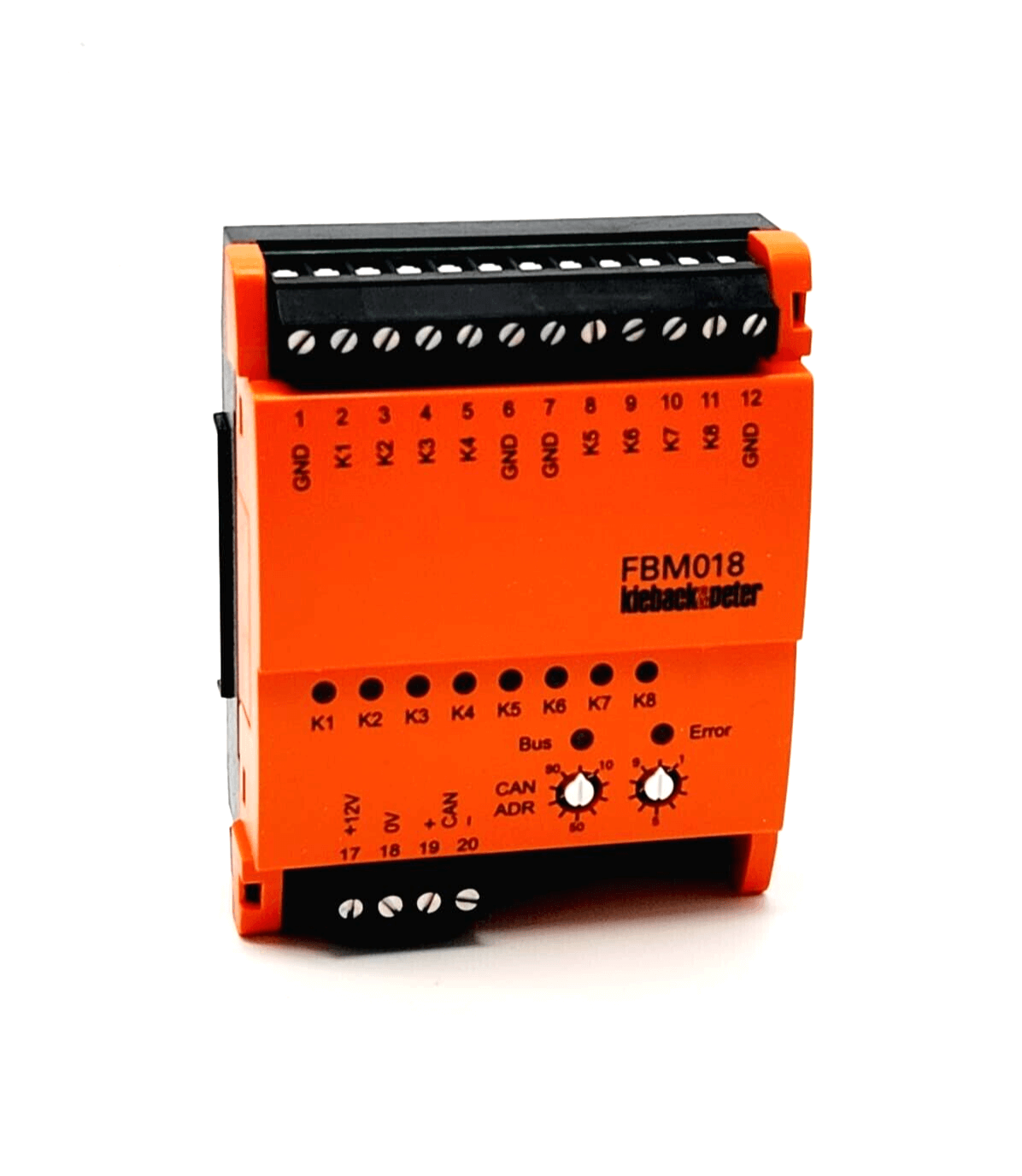

Kieback & Peter FBM018 input module fieldbus
  • Nominal voltage 12 V DC ±20 % / 90 mA; 1.08 VA
  • Inputs 8 contact inputs K1..K8 (potential-free), max. 80 Hz
  • CAN interface; fieldbus max. 2000 m, 20 kBaud
  • Address switch Addressing 01..63 by 2 rotary switches
  • Display 8 LED to display the inputs K1..K8, LED lights up when on
  • 2 LED - LED BUS green: Flashing = fieldbus data transmission
  • - LED Error red: Fieldbus error
  • overvoltage category III
  • rated impulse voltage
  • 800 V
  • pollution level 2
  • mode of action type 1
  • Protection class IP20 (IP65 installation in wall housing Z175)
  • Housing Plastic housing, 4HP
  • Ambient temperature 0..45 °C
  • Ambient humidity 20..80 % RH, non-condensing
  • Mounting on DIN rail TH 35-7.5 for installation in the control panel or wall housing.
  • Weight FBM018 0.13 kg
