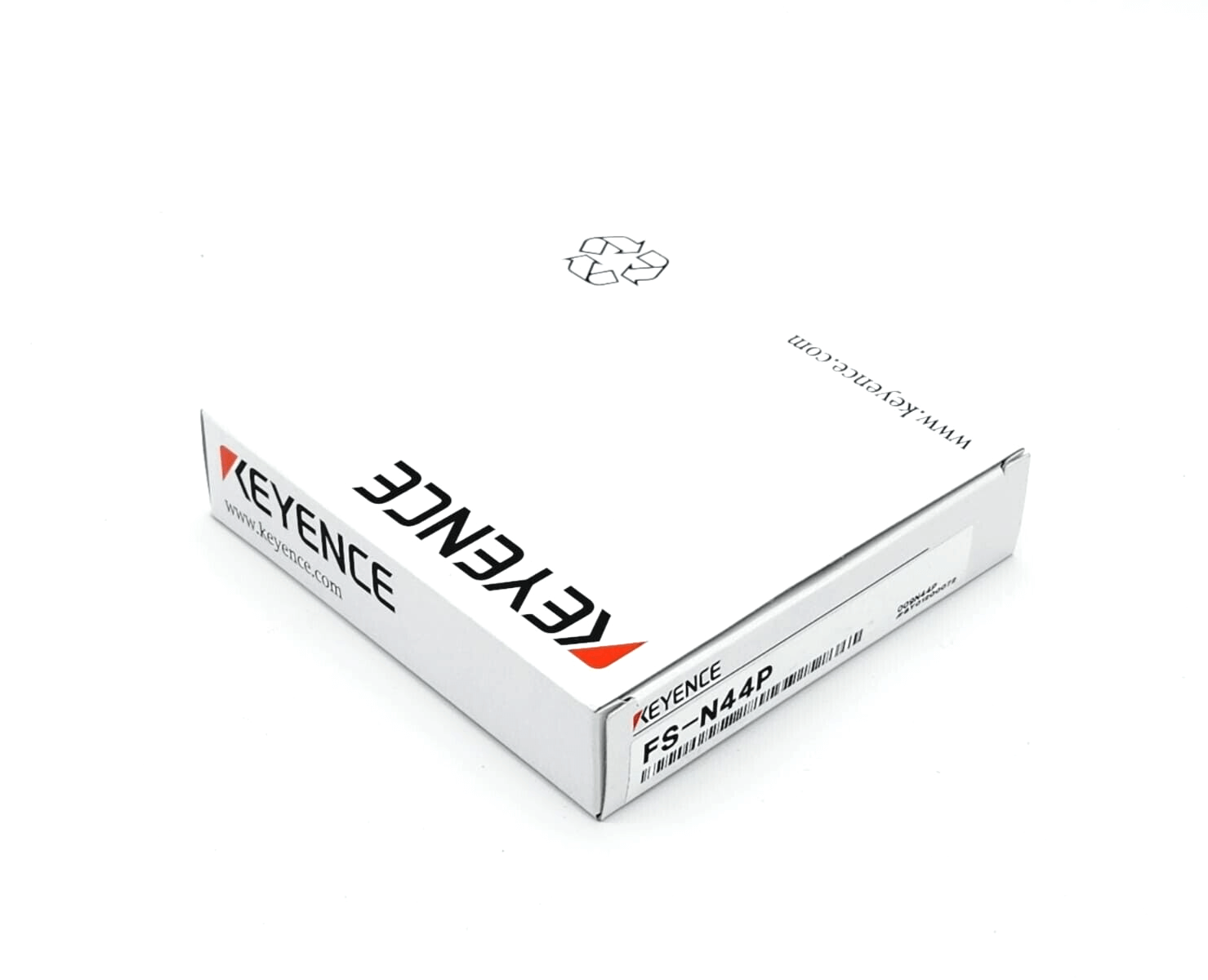

• Keyence FS-N44P packaging box, light amplifier, PNP model, cable type, expansion unit displayed on white background.

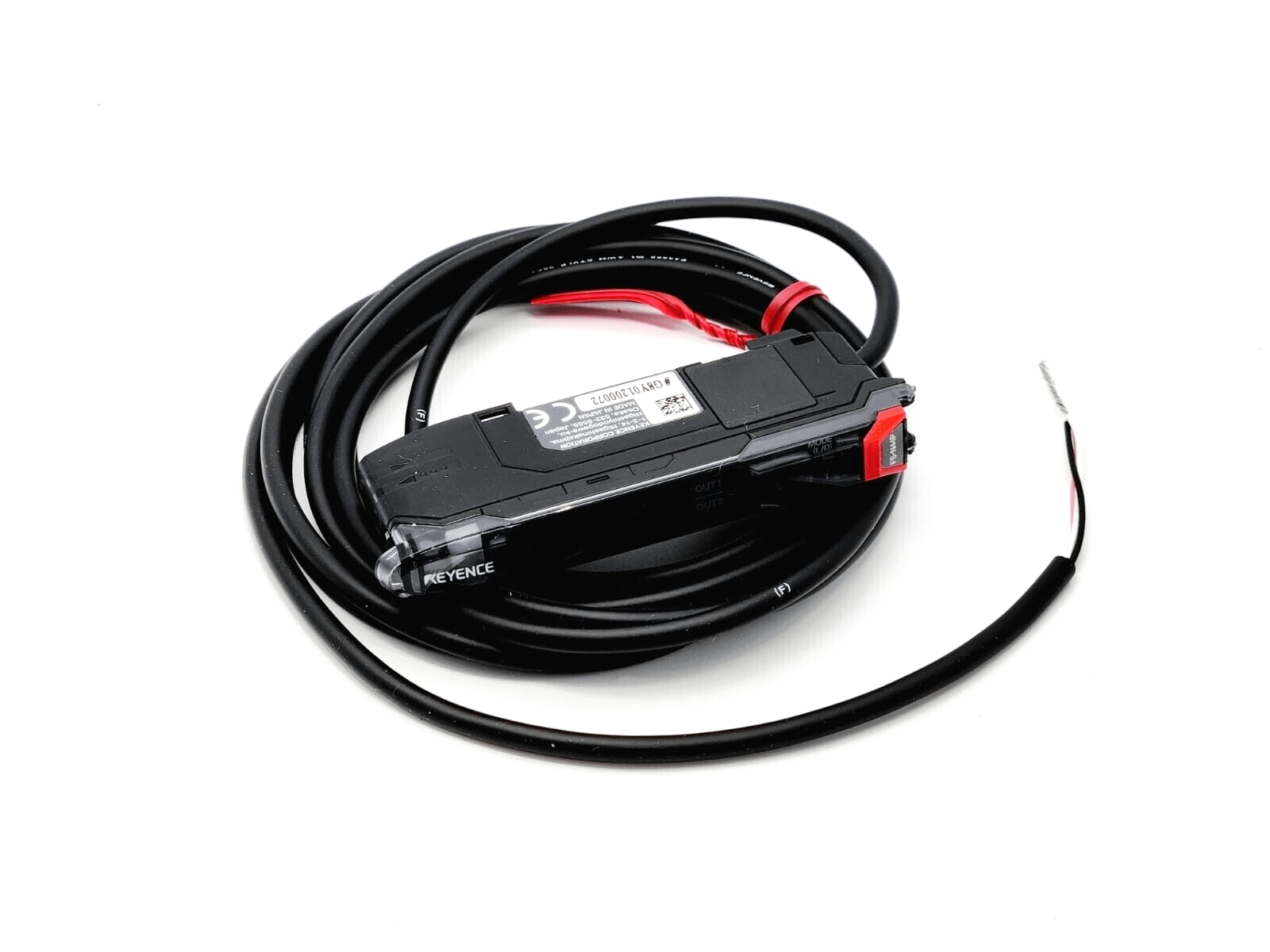

  • Keyence FS-N44P Fiber Optic Amplifier, cable type with PNP output, shown coiled on a white background.
1 2

KEYENCE

Keyence FS-N44P, Fiber Optic Amplifier, Cable Type, Expansion Unit, PNP

Keyence FS-N44P, Fiber Optic Amplifier, Cable Type, Expansion Unit, PNP

€151,99 EUR
€151,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Keyence FS-N44P, Fiber Optic Amplifier, Cable Type, Expansion Unit, PNP

  • Model

FS-N44P

  • type

Cable

  • output radiation

PNP

  • main unit/expansion unit

expansion unit

  • response time

23 µs (S-HSPD*1*2) / 50 µs (HSPD*3) / 250 µs (FINE) / 500 µs (TURBO) / 1 ms (SUPER) / 4 ms (ULTRA) / 16 ms (MEGA) / 64 ms (TERA)

  • number of switching outputs

2

  • number of external inputs

1

  • light source (LED)

Transmitter: Red, four-part LED (wavelength: 660 nm)

  • switching output (control output)

Open collector, 30 V or less 100 mA or less per output,
100 mA or less total for 2 outputs (when used as a single device) /
20 mA or less (when used as an extension device)
Residual voltage: 1.6 V or less (output current: 10 mA or less) / 2.2 V or less (output current: 10 to 100 mA)

  • External input

Input time: 2 ms (ON) / 20 ms (OFF) or longer*4

  • expansion unit

Up to 16 units can be connected (including main unit, total of 17 connected units).
Sensor models with two switching outputs are treated like two expansion units.

  • protection circuit

Protection against reversed polarity (power supply), overcurrent (output),
Overvoltage (output) and reversed polarity (output)

  • interference suppression

S-HSPD/HSPD: 0 units, FINE: 4 units, TURBO/SUPER/ULTRA/MEGA/TERA: 8 units
(the mutual interference rejection values ​​are twice as high as shown here when "Double" is selected).

  • power connection

Tension

10 to 30 VDC (with 10% ripple (PP) or less), Class 2 or LPS*5

consumption

In normal operation: 990 mW or less (39 mA or less at 24 V/72 mA or less at 12 V)
ECO ON: 920 mW or less (36 mA or less at 24 V/66 mA or less at 12 V)
ECO FULL: 830 mW or less (33 mA or less at 24 V/59 mA or less at 12 V)*6

environmental resistance

ambient light

Incandescent lamp: 20,000 lux or less, sunlight: 30,000 lux or less

ambient temperature

-20°C to +55°C (no icing)*7

vibration resistance

10 to 55 Hz; double amplitude 1.5 mm; 2 hours each for X, Y and Z axes

shock resistance

500 m/s2; 3 times each for X, Y and Z axes

  • housing material

Main unit and cover: polycarbonate

  • Weight

Approx. 73 g

3 in stock
