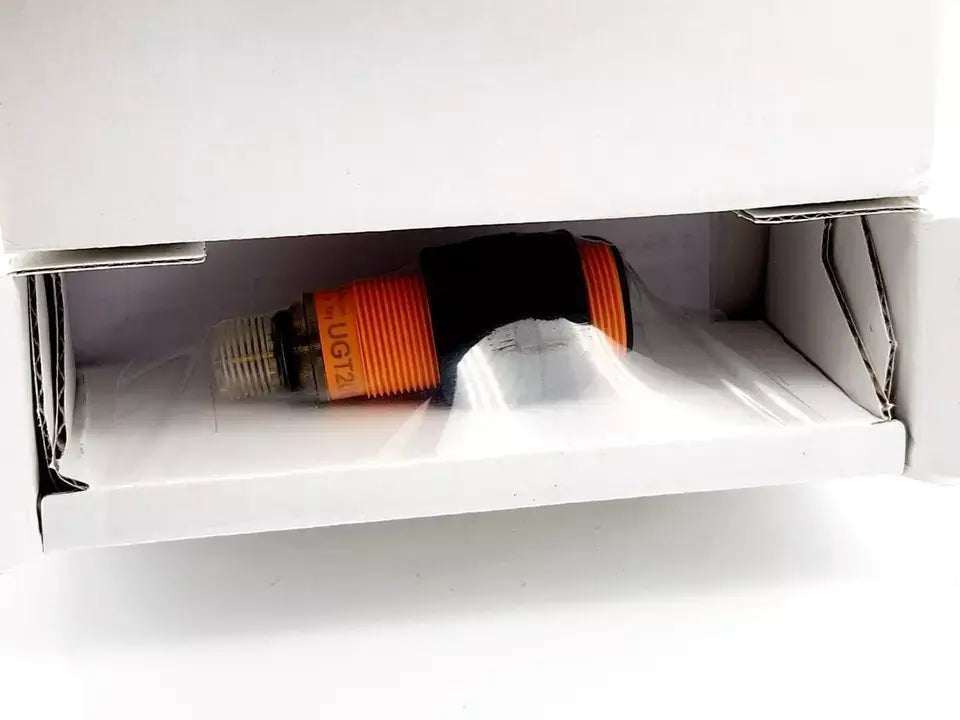

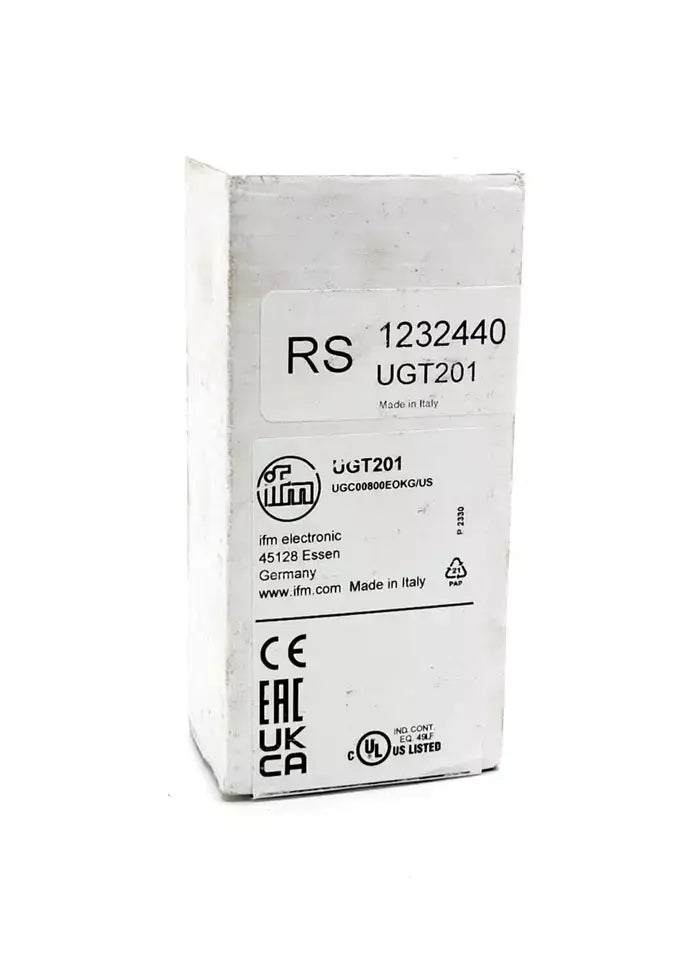

ifm UGT201 ultrasonic sensor UGC00800EOKG/US

Electrical version

• Electrical design : PNP
• Output function : Normally open / Normally closed (parameterizable)
• Switching distance [mm] : 60...800 (at target size: 200 x 200 mm)
• Housing : threaded design
• Dimensions [mm] : M18 x 1 / Length = 60.5

Electrical data

• Operating voltage [V] : 10...30 DC (according to "supply class 2" according to cULus)
• Current consumption [mA] : < 35
• Protection class : III
• Reverse polarity protection : Yes
• Ready delay time [s] : < 0.3
• Converter frequency [kHz] : 230

inputs/outputs

• Number of inputs and outputs : 1 digital output

entrances

• Synchronization input : No
• Multiplex input : No

outputs

• Total number of outputs : 1
• Electrical design : PNP
• Number of digital outputs : 1
• Output function : Normally open / Normally closed (parameterizable)
• Max. voltage drop at switching output DC [V] : 2.2
• Continuous current load capacity of the switching output DC [mA] : 100
• Switching frequency DC [Hz] : 5
• Short circuit protection : Yes
• Overload resistant : Yes

detection range

• Switching distance [mm] : 60...800 (for target size 200 x 200 mm)
• Blind zone [mm] : 60
• Opening angle cylindrical [°] : 15 (±2)
• Max. deviation from 90° angle sensor / object [°] : ± 4

Accuracy / Deviations

• Temperature compensation : Yes
• Hysteresis [%] : < 1
• Switching point drift [%] : -5...5
• Repeatability : 1%
• Resolution [mm] : 3
• Note on accuracy / deviation : The specified values ​​are achieved after a warm-up time of at least 20 minutes

environmental conditions

• Ambient temperature [°C] : -20...70
• Storage temperature [°C] : -30...80
• Protection class : IP 67
