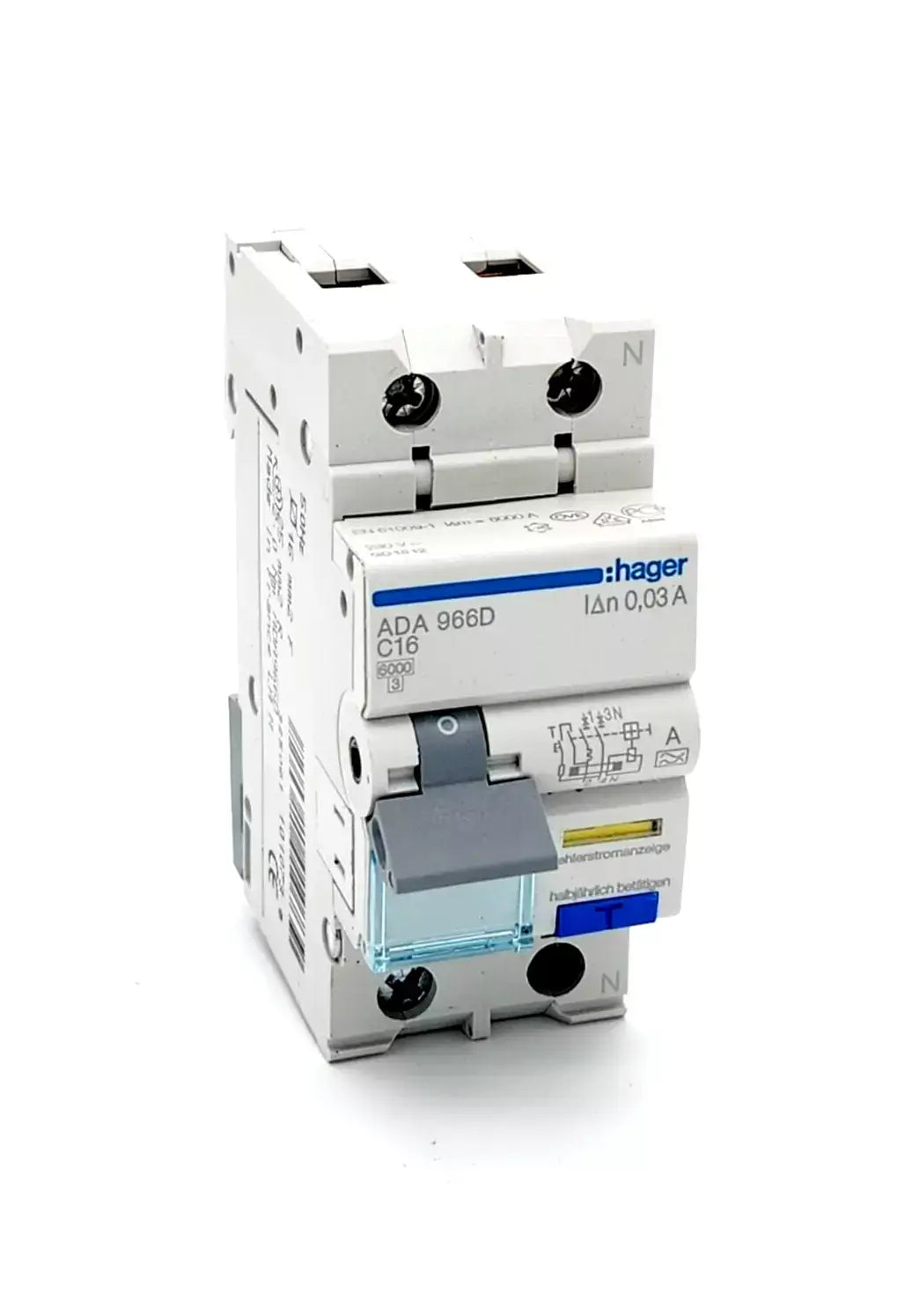

• Hager ADA966D circuit breaker 1P+N, 6kA, C-16A, 30mA, Type A, safety switch with isolation voltage 500V and surge voltage strength 4kV.

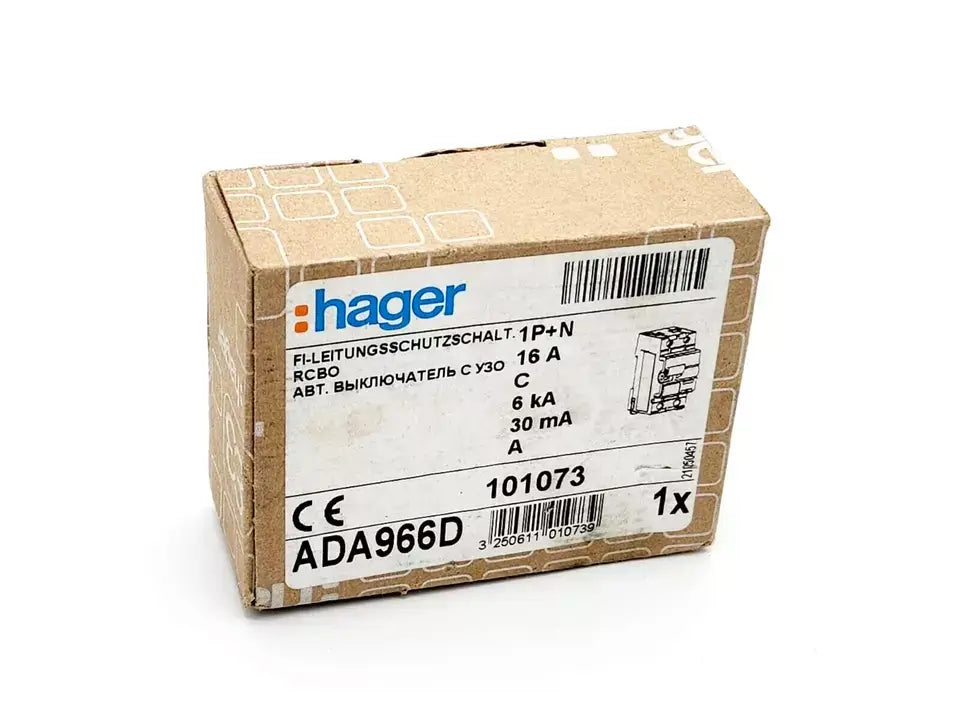

  • Box of Hager ADA966D RCBO, 1P+N, 16A, 6kA, 30mA, Type A, electrical safety device packaging.
1 2

Hager

Hager ADA966D residual current circuit breaker 1P+N 6kA C-16A 30mA Type A

Hager ADA966D residual current circuit breaker 1P+N 6kA C-16A 30mA Type A

€36,99 EUR
€36,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Hager ADA966D residual current circuit breaker 1P+N 6kA C-16A 30mA Type A

  • Polart 1P+N
  • trigger characteristic C
  • rated current 16 A
  • Type of residual current protection A
  • rated residual current 30 mA
  • insulation voltage 500 V
  • surge voltage resistance 4 kV
  • Total power loss under rated current 5.2 W
  • Rated operating voltage Ue 230 V
  • energy limitation class I²t 3
  • Device service life, electrical switching cycles 2000
  • Device service life mechanical switching cycles 2000
  • torque 2.1Nm
  • Number of modules 2
  • Height of installed product 93 mm
  • Width of installed product 35 mm
  • Depth of installed product 68 mm
  • Operating temperature -25…40 °C
  • Storage/transport temperature -25…70 °C
  • Connection cross-section of the access with screws, with flexible conductor 1 / 16 mm²
  • Connection cross-section for rigid conductor, upstream terminals with screws 1 / 25 mm²

1 in stock
