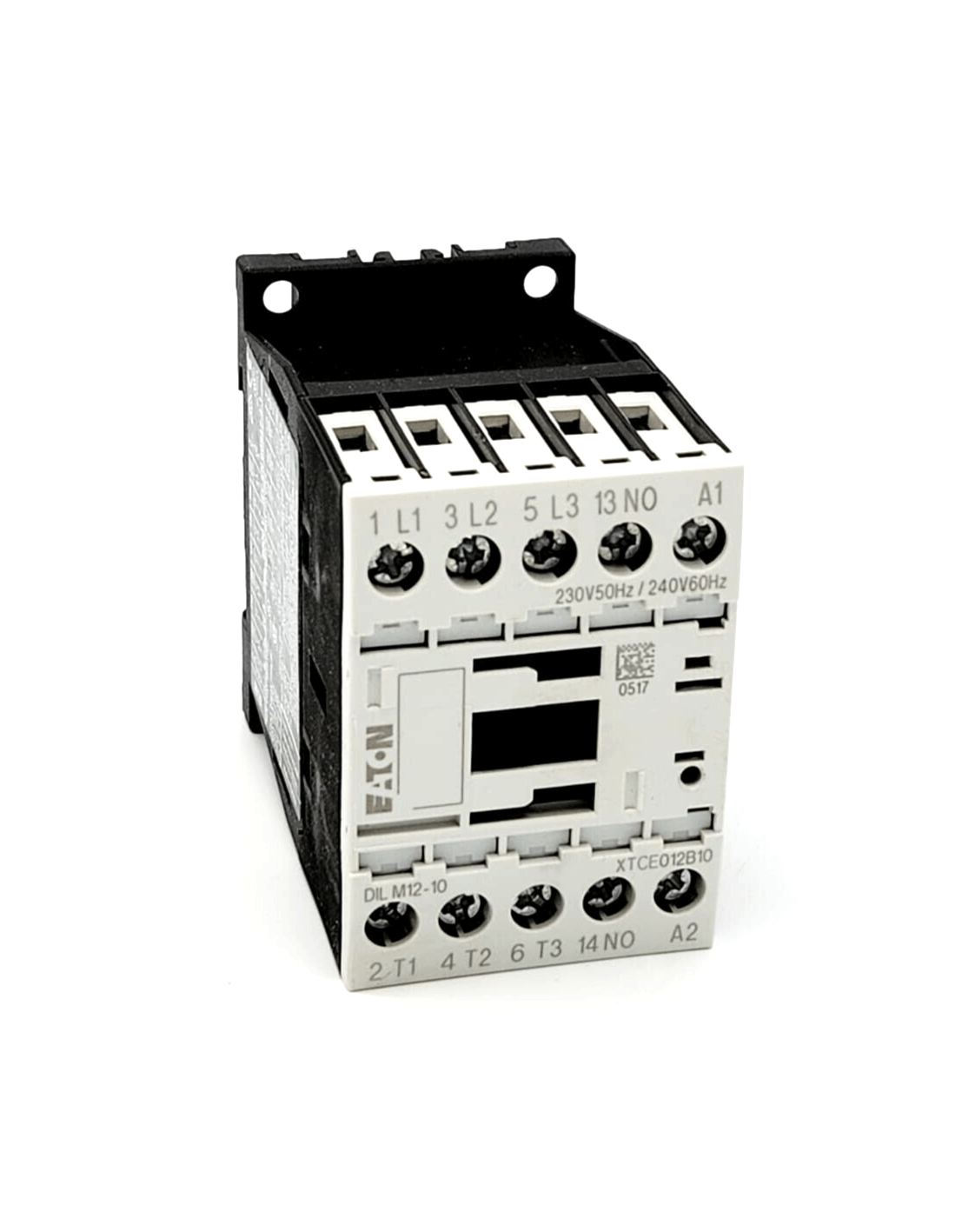

• Eaton 276830 DILM12-10 3-pole contactor for AC, 230V-50Hz, 240V-60Hz, shown isolated against a white background.

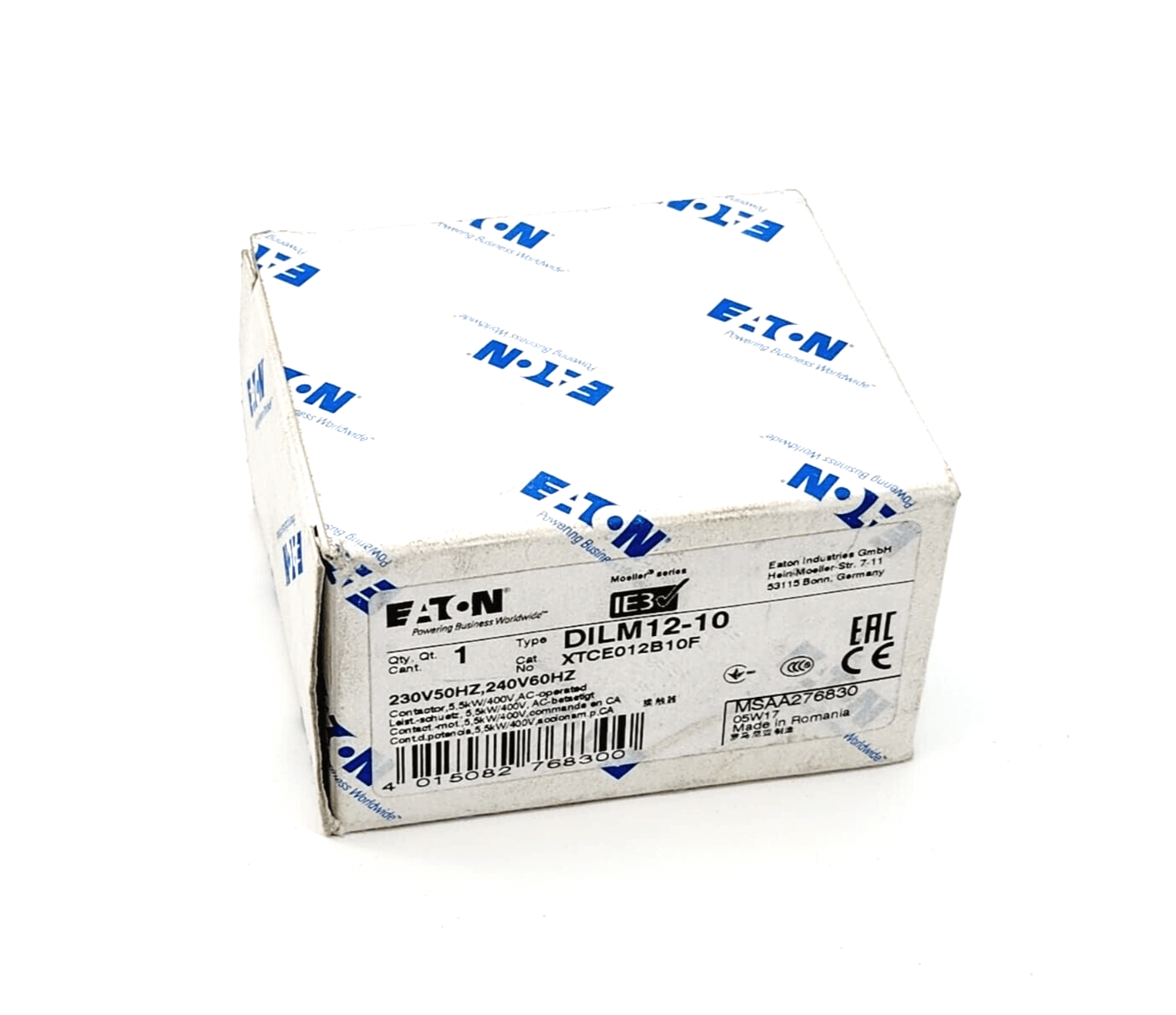

  • Eaton 276830 DILM12-10 3-pole contactor box for 230V 50Hz, 240V 60Hz AC, showing labeling and packaging details.
1 2

EATON

Eaton 276830 DILM12-10 contactor 3-pole 230V50HZ 240V60HZ, AC

Eaton 276830 DILM12-10 contactor 3-pole 230V50HZ 240V60HZ, AC

€16,99 EUR
€16,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Eaton 276830 DILM12-10 contactor 3-pole 230V50HZ 240V60HZ, AC
  • Rated control supply voltage Us at AC 50 Hz 230 - 230 V
  • Rated control supply voltage Us at AC 60 Hz 240 - 240 V
  • Rated control supply voltage Us at DC 0 - 0 V
  • Voltage type for actuation AC
  • Rated operating current Ie at AC-1, 400 V 22 A
  • Rated operating current Ie at AC-3, 400 V 12 A
  • Rated operating power at AC-3, 400 V 5.5 kW
  • Rated operating current Ie at AC-4, 400 V 7 A
  • Rated operating power at AC-4, 400 V 3 kW
  • Rated operating power NEMA 7.4 kW
  • Suitable for series installation no
  • Number of auxiliary contacts as normally open 1
  • Number of auxiliary contacts as break contacts 0
  • Connection type main circuit screw connection
  • Number of openers as main contacts 0
  • Number of normally open contacts as main contacts 3

1 in stock

View full details
