General Product Information

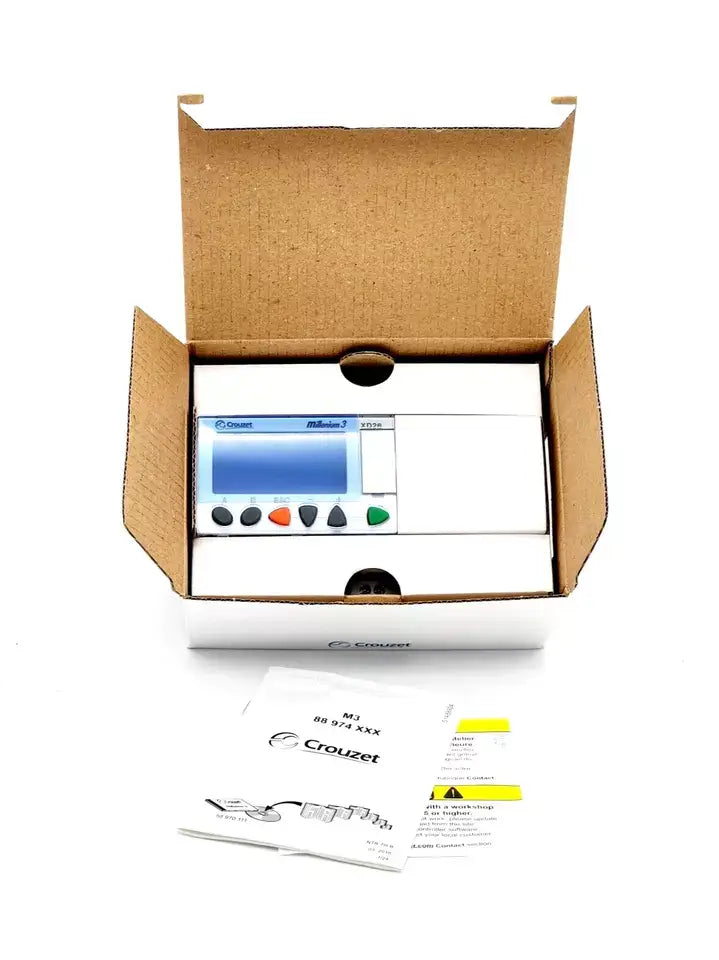

• Type: XD26 R 230VAC SMART
• Manufacturer part number: 88974163
• Product type: PLC control module

dimensions and protection class

• Dimensions (L x W x H): 59.5 mm x 124.6 mm x 90 mm
• Protection class (front): IP40
• Length: 59.5 mm
• Width: 124.6 mm
• Height: 90 mm

display and inputs/outputs

• Display: Yes
• Number of digital inputs (max.): 16
• Number of inputs (max.): 16
• Number of digital outputs (max.): 10 relays
• Number of relay outputs (max.): 10

power supply and performance

• Operating voltage: 230 V/AC
• Digital outputs: 10 relays, loadable up to 8 A
• Digital inputs: 16
