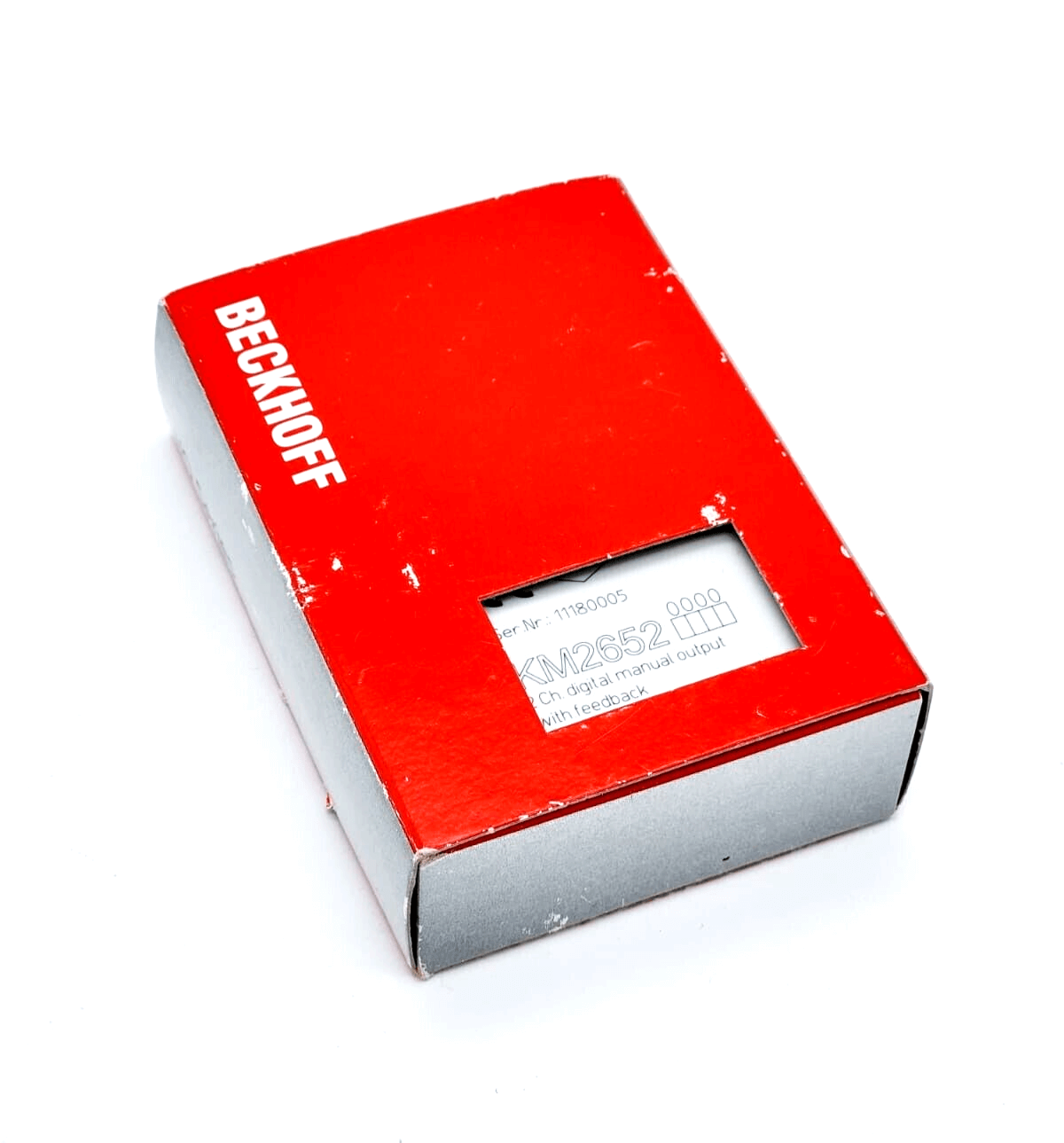

• Beckhoff KM2652 Busklemmenmodul, 2-Kanal-Digital-Ausgang, 230 V AC, 6 A packaging box in red with product name visible.
1 1

Beckhoff

Beckhoff KM2652 bus terminal module, 2-channel digital output, 230 V AC, 6 A

Beckhoff KM2652 bus terminal module, 2-channel digital output, 230 V AC, 6 A

€332,49 EUR
€332,49 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff KM2652 bus terminal module, 2-channel digital output, 230 V AC, 6 A
  • number of outputs 2 x changer
  • nominal voltage 230 V AC (max. switching voltage 250 V AC)
  • Switching capacity max. 1.5 kVA
  • switching voltage max. 250 V AC
  • load type ohmic, inductive, lamp load
  • Output current max. 6 A per channel
  • switching current 6 A AC/4 A DC at 30 V DC
  • Minimum permissible load 100 mA at 12 V
  • lamp load, electronic ballast max. 10 A inrush current
  • current consumption of power contacts –
  • current consumption K-Bus 130 mA typ.
  • contact material AgSnO2
  • width in the process image Input: 4 (status manual, auto, relay ON/OFF), output: 2
  • switching cycles 106
  • mechanical switching cycles (min.) 1 x 106
  • switching cycles electrical (min.) 1 x 105 (3 A/250 V AC)
  • configuration no address or configuration setting
  • Special features Manual/automatic operation, switch status readable
  • Weight approx. 110 g
  • operating/storage temperature 0…+55 °C/-25…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • approvals/markings CE
