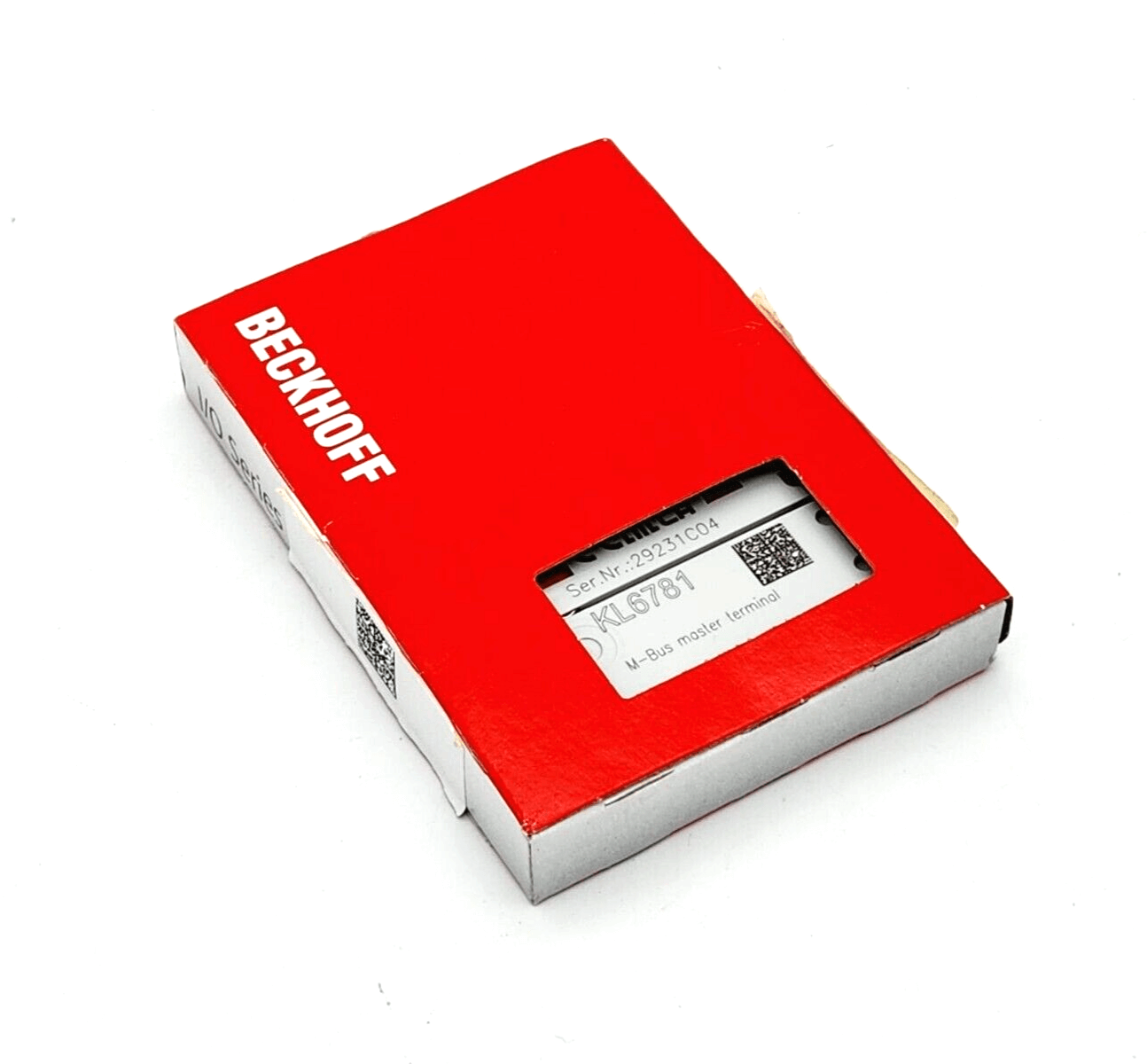

• Beckhoff KL6781 Busklemme 1-Kanal-Kommunikations-Interface M-Bus Master | sealed in original packaging, top view

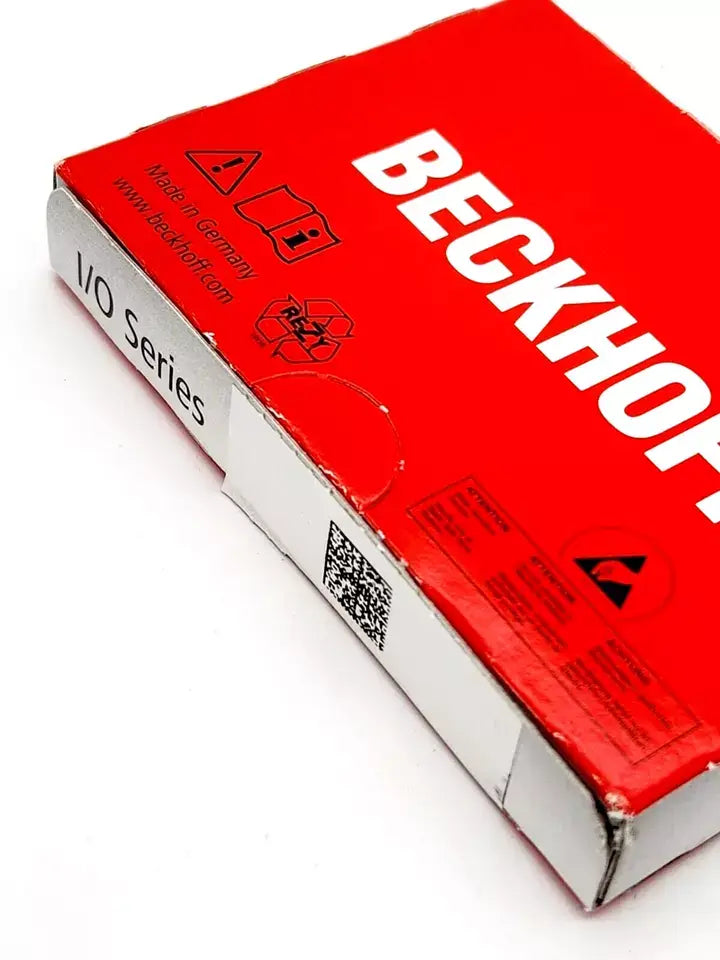

  • Beckhoff KL6781 Busklemme 1-Kanal-Kommunikations-Interface M-Bus Master | sealed in original packaging, new and unopened
1 2

Beckhoff

Beckhoff KL6781 Bus Terminal, 1-channel communication interface, M-Bus, Master

Beckhoff KL6781 Bus Terminal, 1-channel communication interface, M-Bus, Master

€379,99 EUR
€379,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff KL6781 Bus Terminal, 1-channel communication interface, M-Bus, Master
  • Technology M-Bus
  • transmission standard M-Bus physics
  • transmission channels 1
  • M-Bus participants max. 40 standard loads with 1.5 mA current consumption each
  • transfer rates 300…9600 baud (default 2400 baud)
  • bus access master-slave procedure (polling)
  • cable length max. 300 m
  • current consumption K-Bus 65 mA typ.
  • current consumption power contacts max. 250 mA
  • short-circuit strength Yes
  • potential separation 500 V (K-Bus/M-Bus)
  • width in the process image Input/Output: 24 bytes
  • configuration TwinCAT (M-Bus function blocks)
  • nominal voltage 24 V DC (-10 %/+8 %)
  • input voltage 24 V DC (-10 %/+8 %)
  • Special features TwinCAT Library: TwinCAT PLC M-Bus
  • Weight approx. 60 g
  • operating/storage temperature 0…+55 °C/-25…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/see documentation
  • approvals/markings CE, UL

1 in stock
