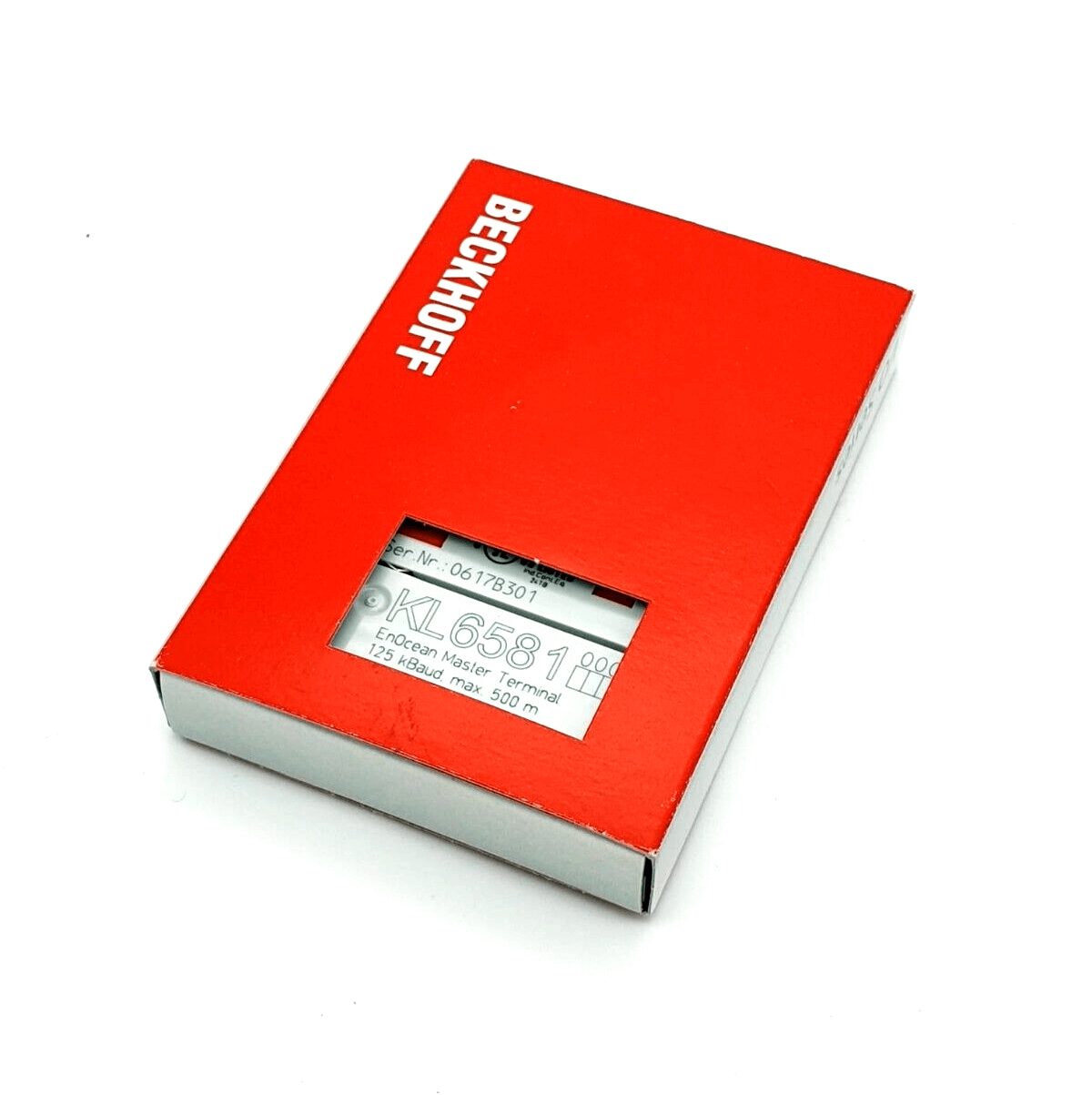

• Beckhoff KL6581 Busklemme 1-Kanal-Kommunikations-Interface EnOcean Master in red packaging
1 1

Beckhoff

Beckhoff KL6581 Bus Terminal 1-channel communication interface EnOcean Master

Beckhoff KL6581 Bus Terminal 1-channel communication interface EnOcean Master

€284,99 EUR
€284,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff KL6581 Bus Terminal 1-channel communication interface EnOcean Master
  • Technology EnOcean
  • number of channels 1
  • Supported telegrams RPS (Repeated Switch Communication), RORG: F6, ORG: 05
  • 1BS (1 Byte Communication), RORG: D5, ORG: 06
  • 4BS (4 Byte Communication), RORG: A5, ORG: 07
  • transmission standard –
  • Connection 2 x 2-wire directly on the EnOcean module KL6583 (max. 8 KL6583 can be connected)
  • transfer rates 125 kBaud
  • cable length max. 500 m
  • power supply via the K-Bus
  • connecting cable up to 500 m
  • current consumption K-Bus 60 mA typ.
  • current consumption power contacts 20 mA typ. + load
  • configuration not required
  • nominal voltage 24 V DC (-15 %/+20 %)
  • Special features up to 8 EnOcean transmitters and receivers KL6583
  • Weight approx. 85 g
  • operating/storage temperature 0…+55 °C/-25…+85 °C
  • Relative humidity 95% without condensation
  • protection class/installation position IP20/any
  • approvals/markings CE, UL

2 in stock

View full details
