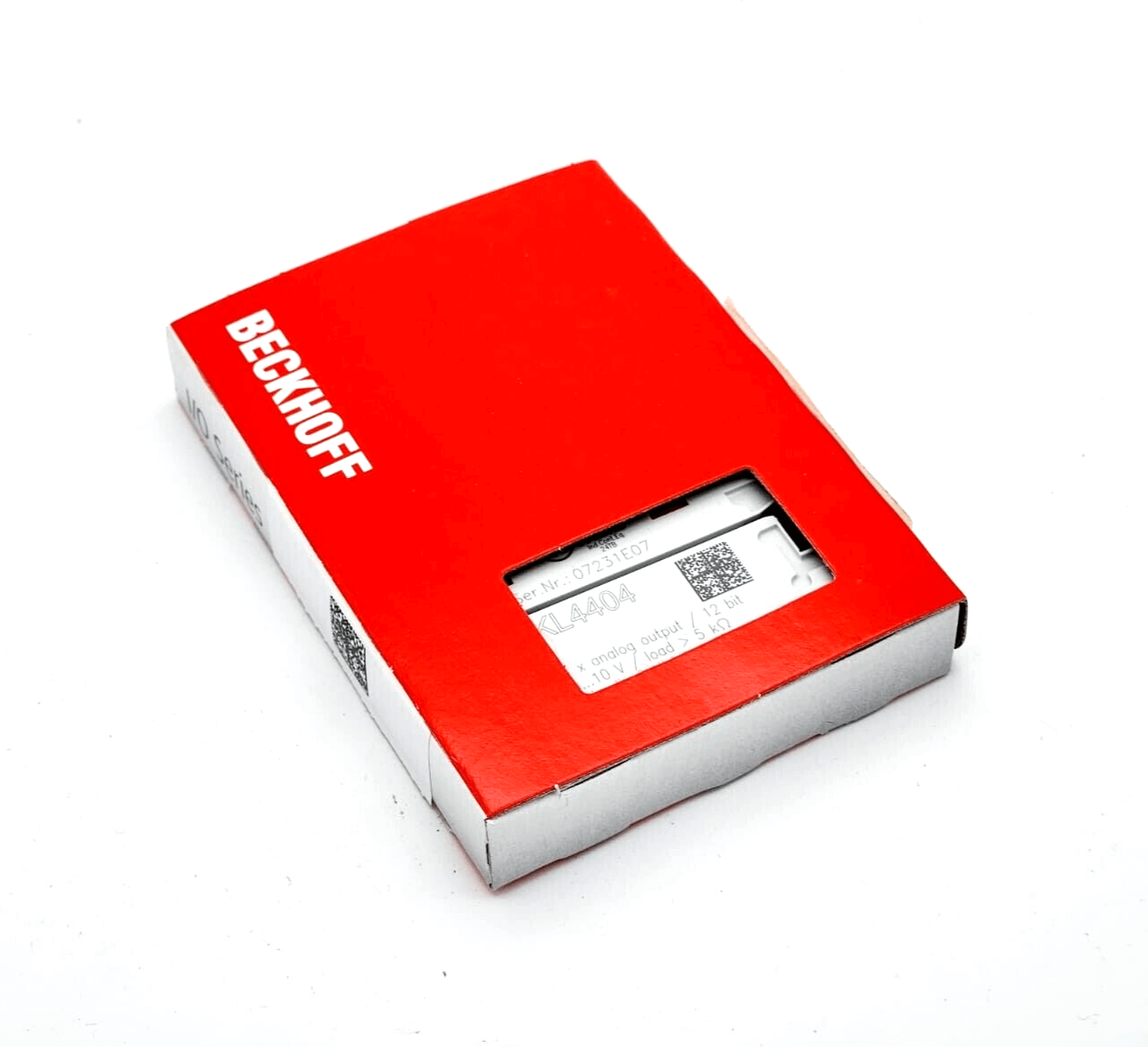

• Beckhoff KL4404 Busklemme 4-Kanal-Analog-Ausgang Spannung 0…10 V | sealed in original packaging, red box.
1 1

Beckhoff

Beckhoff KL4404 Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit

Beckhoff KL4404 Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit

€128,24 EUR
€128,24 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff KL4404 Bus Terminal, 4-channel analog output, voltage, 0…10 V, 12 bit
  • Technology single-ended
  • number of outputs 4
  • signal voltage 0…10 V
  • burden > 5 kΩ (short-circuit proof)
  • output error < ±0.1 % (relative to the final value)
  • resolution 12 bit
  • transformation period ~ 4 ms
  • potential separation 500 V (K-Bus/signal voltage)
  • current consumption power contacts only load
  • current consumption K-Bus 20 mA typ.
  • width in the process image Output: 4 x 16-bit data (4 x 8-bit control/status optional)
  • configuration no address or configuration setting
  • Weight approx. 75 g
  • operating/storage temperature 0…+55 °C/-25…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • Pluggable wiring for all KSxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx, DNV GL
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

3 in stock
