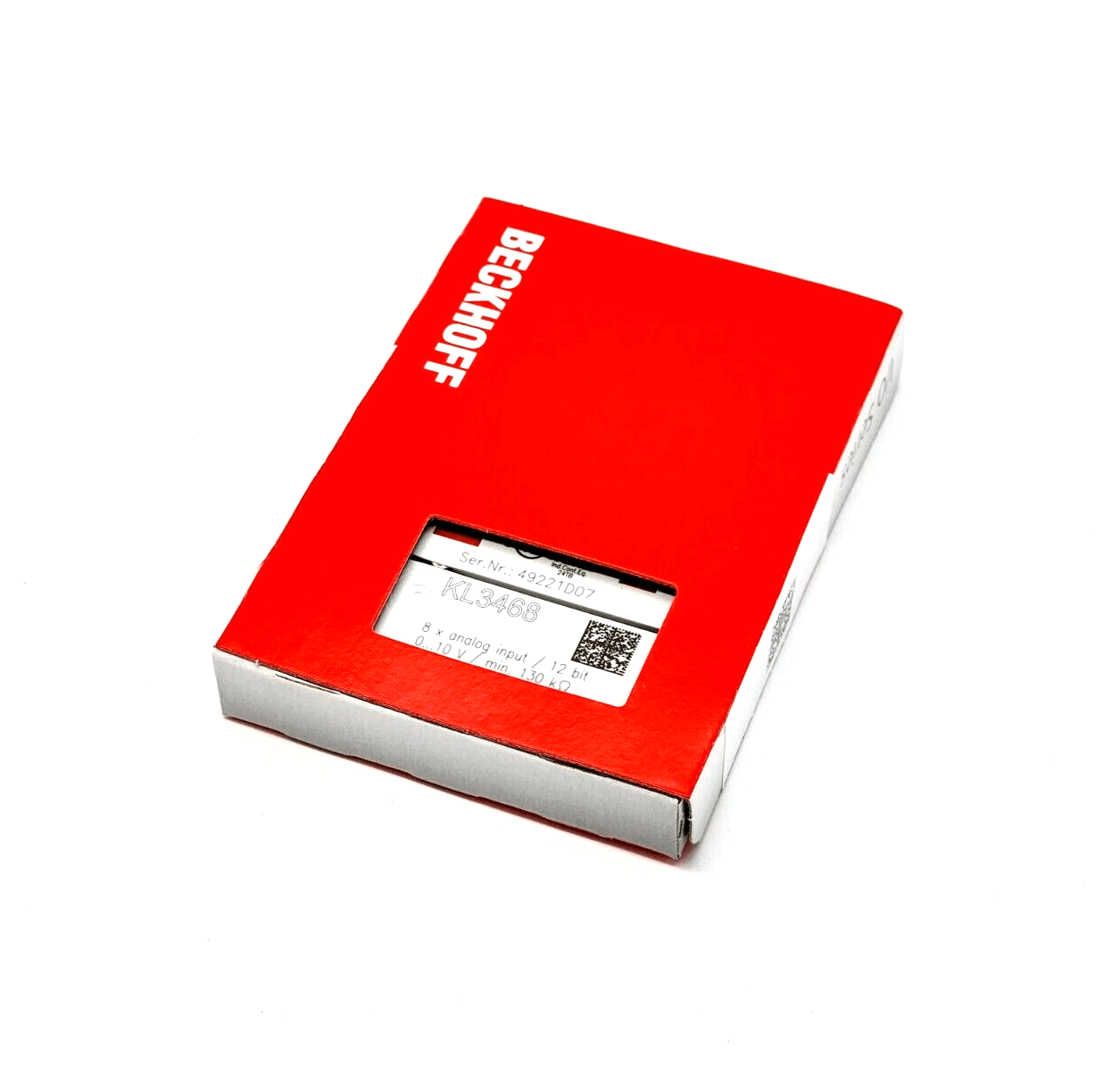

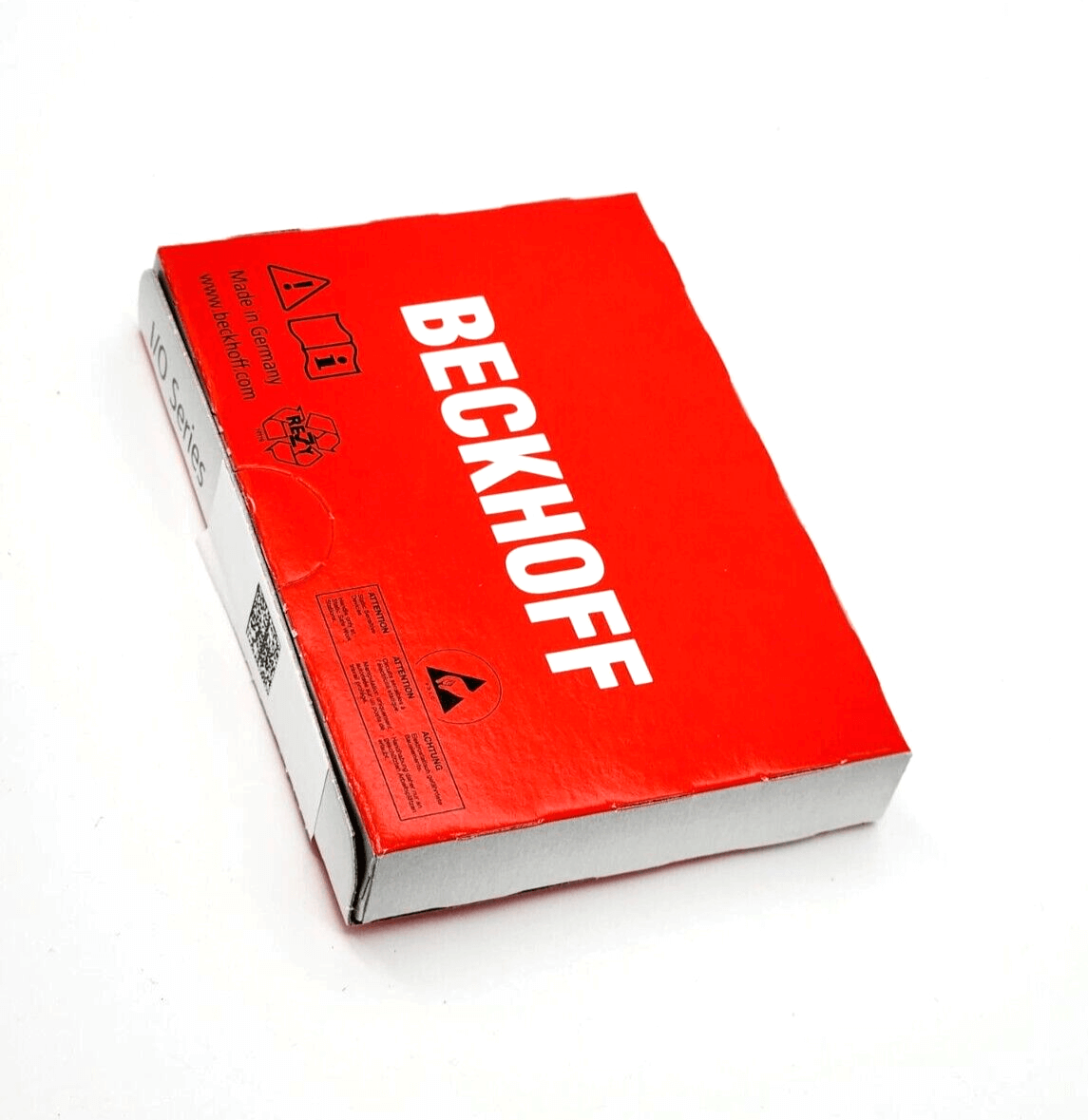

Beckhoff KL3468 Bus Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit

Beckhoff KL3468 Bus Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit

€161,49 EUR
€161,49 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff KL3468 Bus Terminal, 8-channel analog input, voltage, 0…10 V, 12 bit - single-ended
  • number of inputs 8
  • power supply via the K-Bus
  • signal voltage 0…10 V
  • Technology single-ended
  • internal resistance > 130 kΩ
  • common mode voltage UCM –
  • transformation period ~ 4 ms
  • resolution 12 bit
  • measurement error/uncertainty < ±0.3 % (relative to the measuring range end value)
  • potential separation 500 V (K-Bus/signal voltage)
  • current consumption power contacts –
  • current consumption K-Bus 140 mA typ.
  • width in the process image Input: 8 x 16-bit data (8 x 8-bit control/status optional)
  • configuration no address or configuration setting
  • Special features high packing density
  • Weight approx. 75 g
  • operating/storage temperature 0…+55 °C/-25…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • approvals/markings CE, UL, ATEX, IECEx, DNV GL
  • Pluggable wiring for all KSxxxx terminals
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

2 in stock
