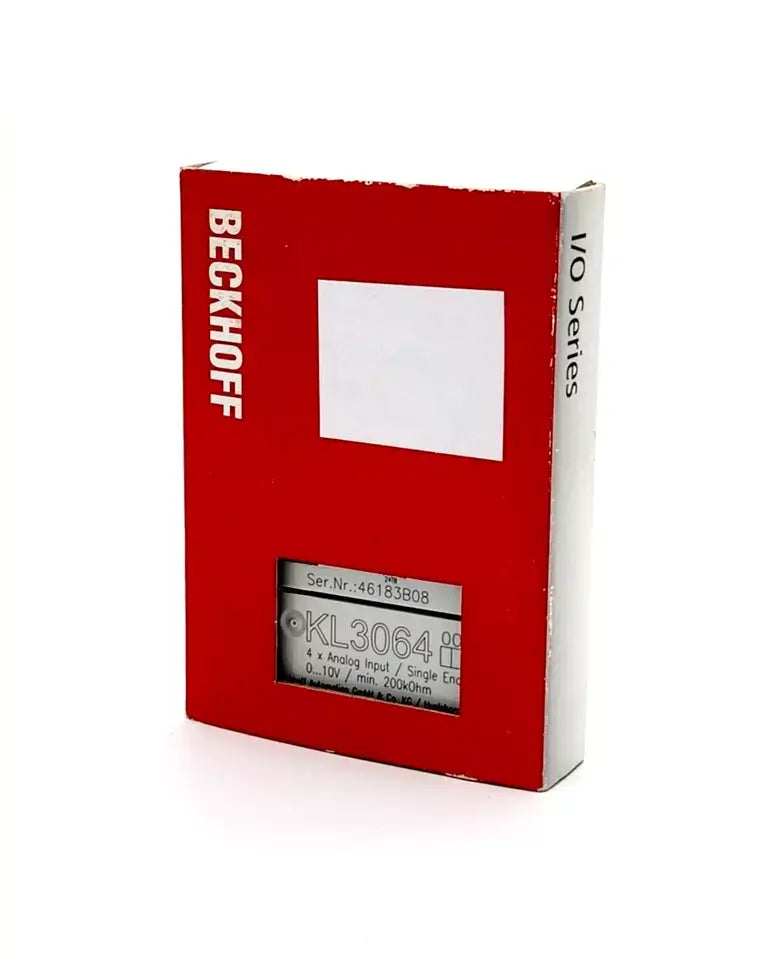

Beckhoff KL3064 Bus Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended, with shield connection

• Number of inputs : 4
• Power supply : via the K-Bus
• Signal voltage : 0…10 V
• Technology : single-ended
• Internal resistance : > 200 kΩ typ.
• Common mode voltage UCM : –
• Conversion time : ~ 4 ms
• Resolution : 12 bit
• Measurement error/uncertainty : < ±0.3 % (relative to the measuring range end value)
• Potential isolation : 500 V (K-Bus/signal voltage)
• Current consumption power contacts : – (no power contacts)
• Current consumption K-Bus : 85 mA typ.
• Width in the process image : Input: 4 x 16-bit data (4 x 8-bit control/status optional)
• Configuration : no address or configuration setting
• Weight : approx. 80 g
• Operating/storage temperature : -25…+60 °C / -40…+85 °C
• Relative humidity : 95% without condensation
• Vibration/shock resistance : according to EN 60068-2-6 / EN 60068-2-27
• EMC immunity/emission : according to EN 61000-6-2 / EN 61000-6-4
• Protection class/installation position : IP20 / any
• Approvals/Markings : CE, UL, ATEX, IECEx, DNV GL
• Pluggable wiring : for all KSxxxx terminals
• Ex marking :
  • ATEX: II 3 G Ex ec IIC T4 Gc
  • IECEx: Ex ec IIC T4 Gc
