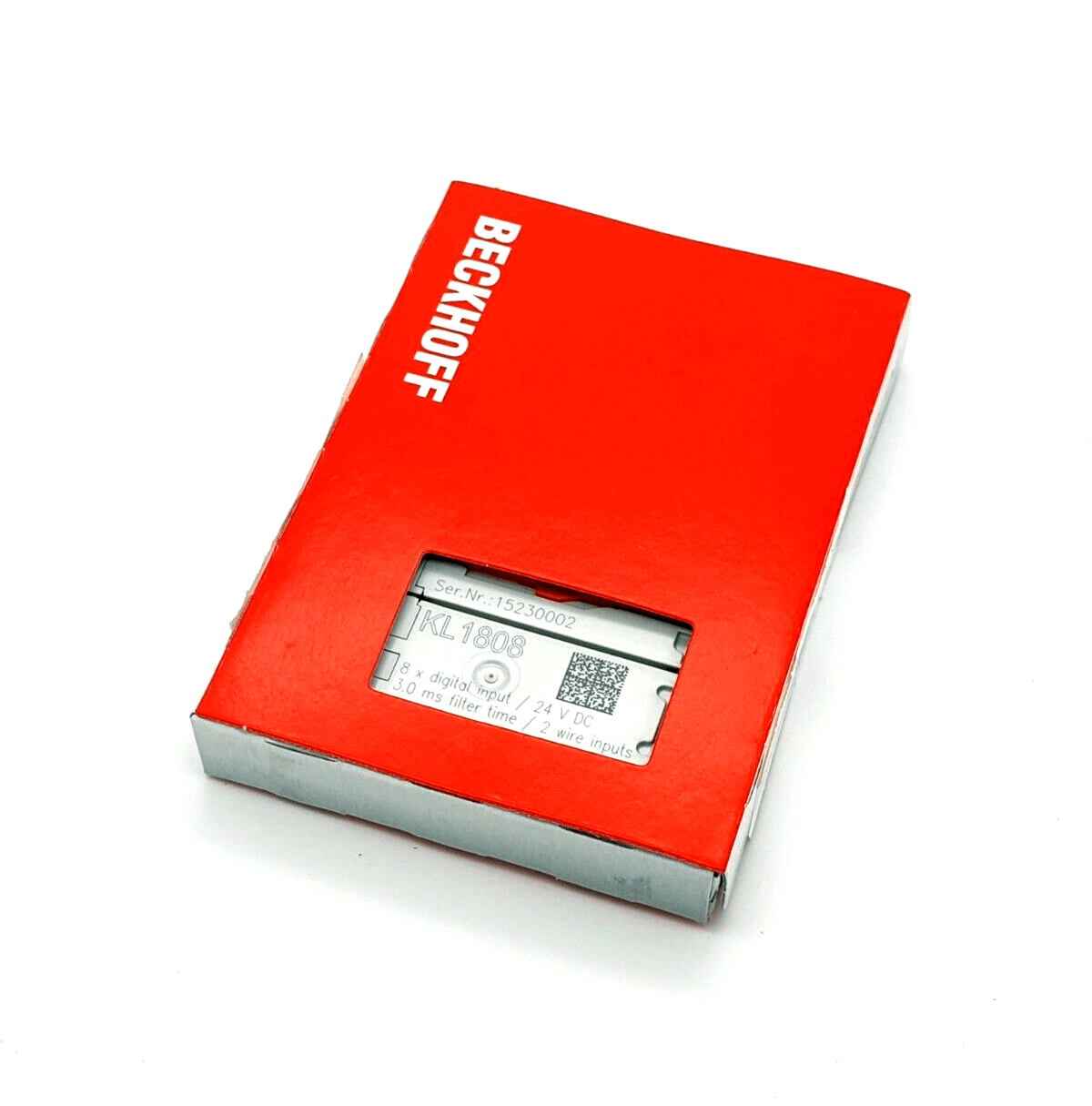

Beckhoff KL1808 Bus Terminal 8-channel digital input 24 V DC 3 ms

Name: Beckhoff KL1808 Bus Terminal 8-channel digital input 24 V DC 3 ms
Brand: Beckhoff
Price: 123.49 EUR
Availability: InStock

€123,49 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Beckhoff KL1808 Bus Terminal 8-channel digital input 24 V DC 3 ms

connection technology 2-wire
specification EN 61131-2, Type 1/3
number of inputs 8
nominal voltage 24 V DC (-15 %/+20 %)
signal voltage "0" -3…+5 V (EN 61131-2, type 1/3)
signal voltage "1" 11…30 V (EN 61131-2, Type 3)
input filter 3.0 ms typ.
input current 3 mA typ. (EN 61131-2, Type 3)
current consumption K-Bus 15 mA typ.
current consumption power contacts 2 mA typ. + load
potential separation 500 V (K-Bus/field voltage)
width in the process image 8 inputs
configuration no address or configuration setting
types of conductors solid, stranded and wire end ferrule
conductor connection single-wire conductors: direct plug-in technology; fine-stranded conductors and wire end ferrules: spring actuation via screwdriver
design cross-section solid: 0.08…1.5 mm²; fine-stranded: 0.25…1.5 mm²; Wire end sleeve: 0.14…0.75 mm²
Weight approx. 60 g
operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95% without condensation
vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
protection class/installation position IP20/any (see documentation)
approvals/markings CE, UL, ATEX, IECEx, DNV GL
Ex marking ATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
