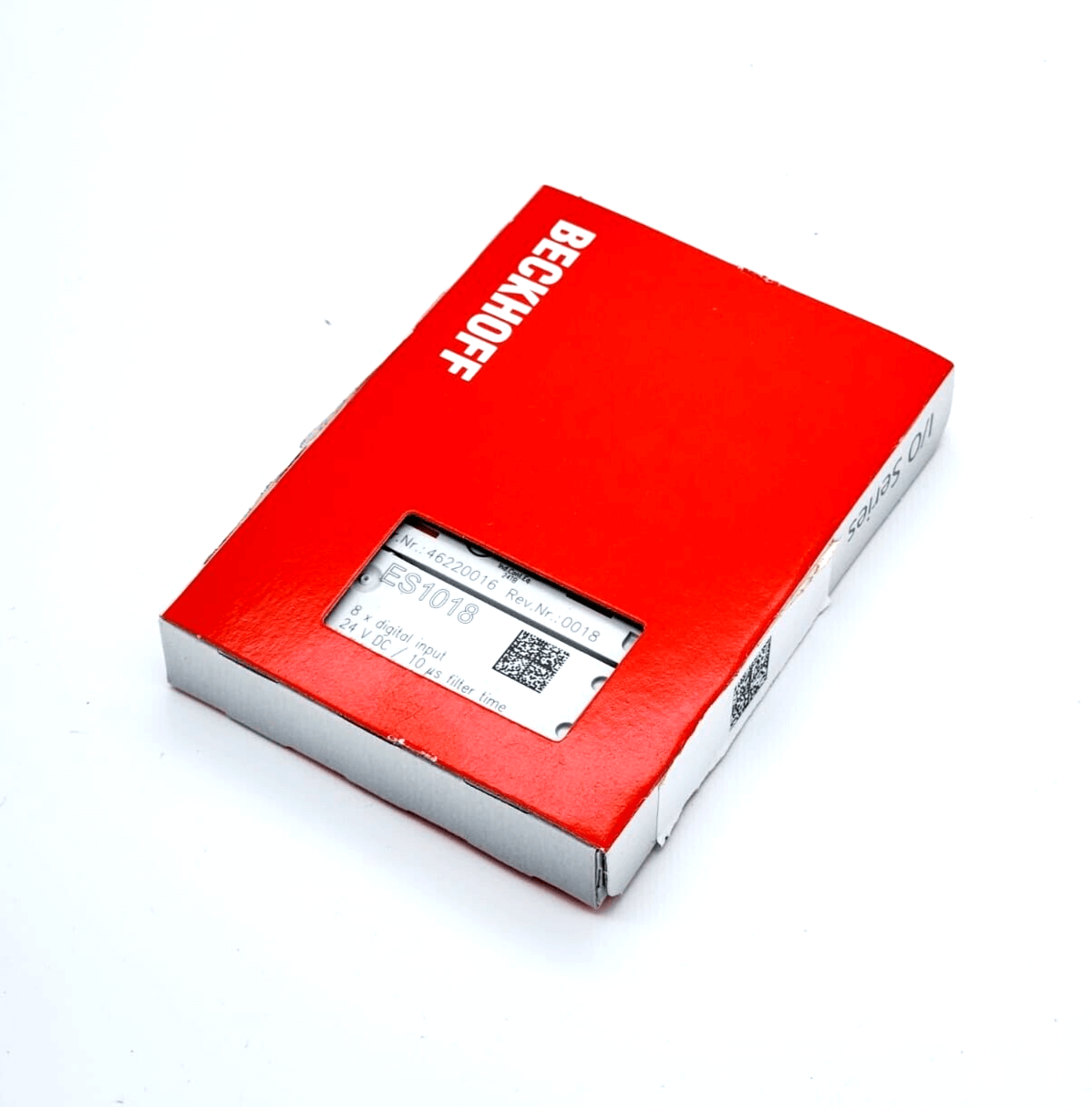

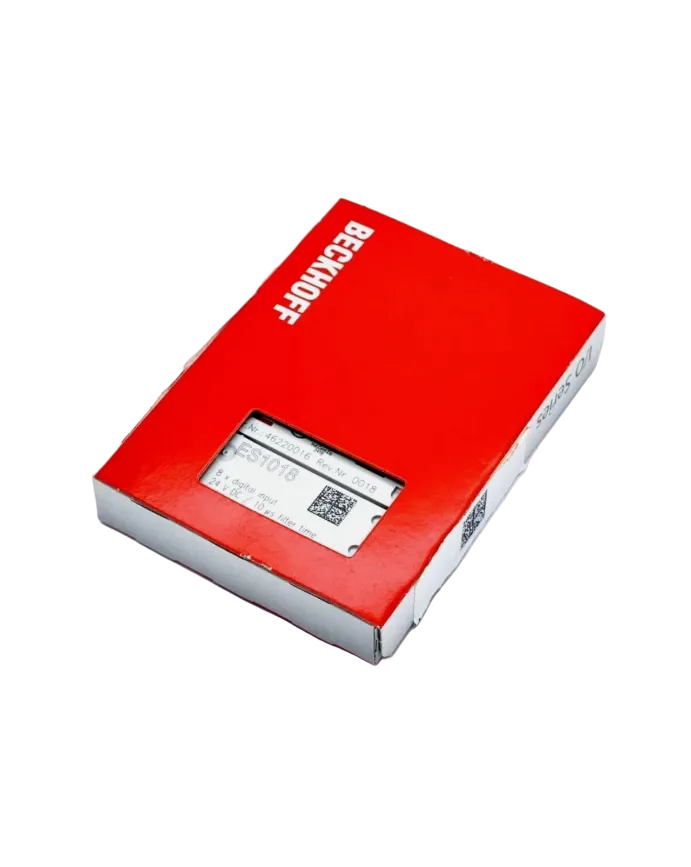

• Beckhoff ES1018 EtherCAT-Klemme 8-Kanal-Digital-Eingang 24 V DC | sealed in original packaging

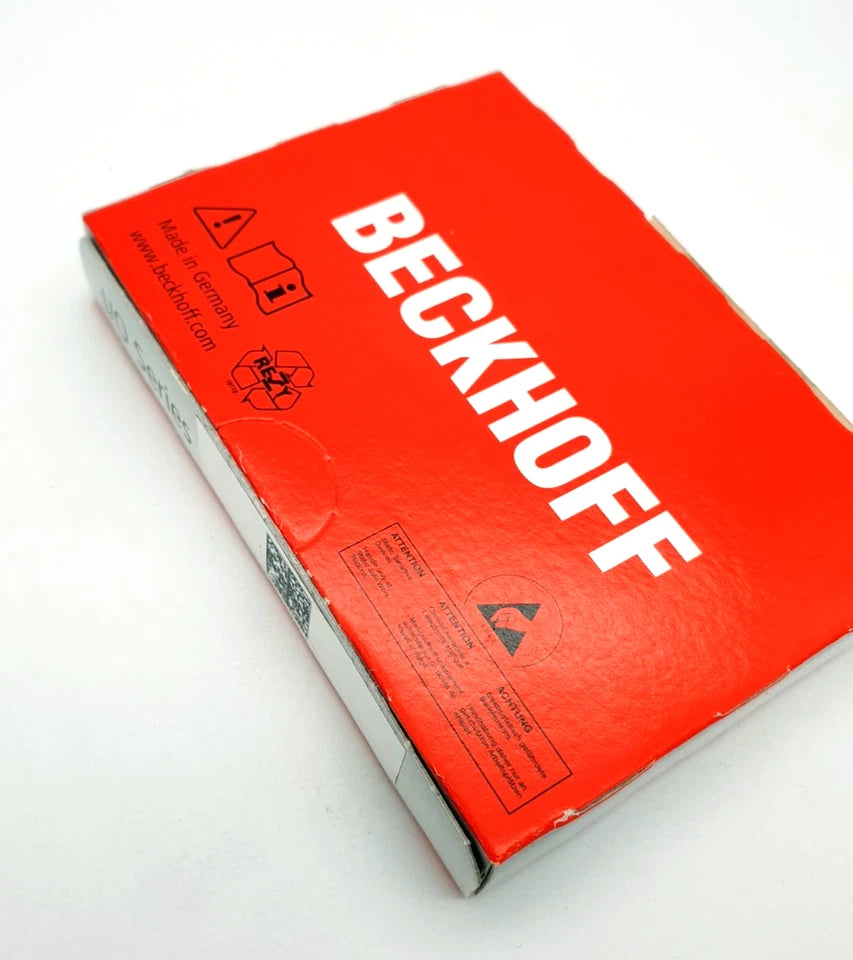

  • Beckhoff ES1018 EtherCAT-Klemme 8-Kanal-Digital-Eingang 24 V DC | sealed packaging in red box with brand logo visible
1 2

Beckhoff

Beckhoff ES1018 EtherCAT Terminal, 8-channel digital input, 24 V DC

Beckhoff ES1018 EtherCAT Terminal, 8-channel digital input, 24 V DC

€132,99 EUR
€132,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff ES1018 EtherCAT Terminal, 8-channel digital input, 24 V DC - Terminal housing with pluggable wiring level
  • connection technology 1-wire
  • specification EN 61131-2, Type 1/3
  • number of inputs 8
  • nominal voltage 24 V DC (-15 %/+20 %)
  • signal voltage "0" -3…+5 V (EN 61131-2, Type 3)
  • signal voltage "1" 11…30 V (EN 61131-2, Type 3)
  • input current 3 mA typ. (EN 61131-2, Type 3)
  • input filter 10 µs typ.
  • Distributed Clocks –
  • current consumption power contacts 2 mA typ. + load
  • power consumption of the e-bus 90 mA typ.
  • potential separation 500 V (E-bus/field voltage)
  • configuration no address or configuration setting
  • Special features Standard input terminal for fast signals (filter 10 μs)
  • Weight approx. 55 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/see documentation
  • Pluggable wiring for all ESxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx, DNV GL
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

2 in stock
