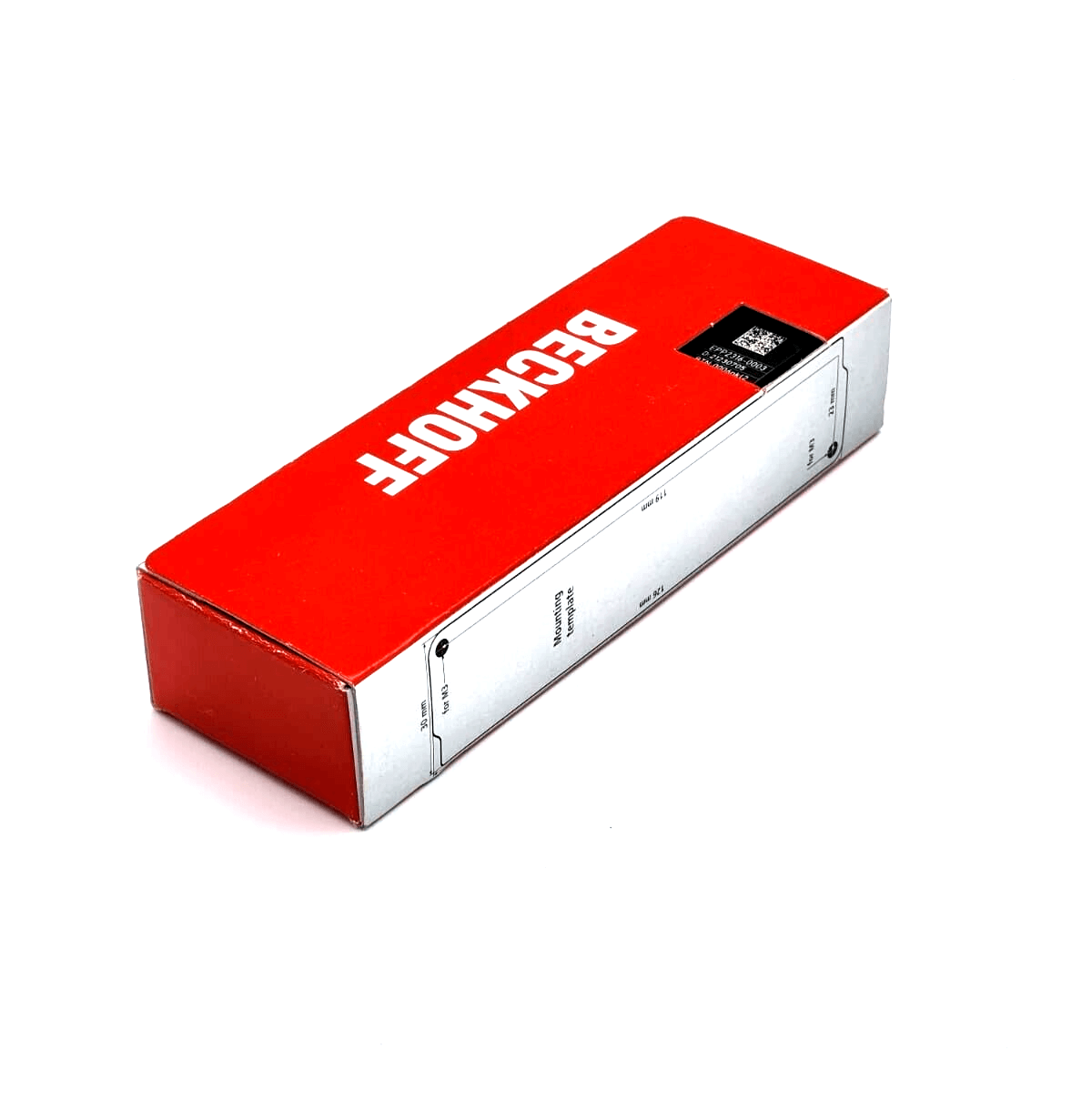

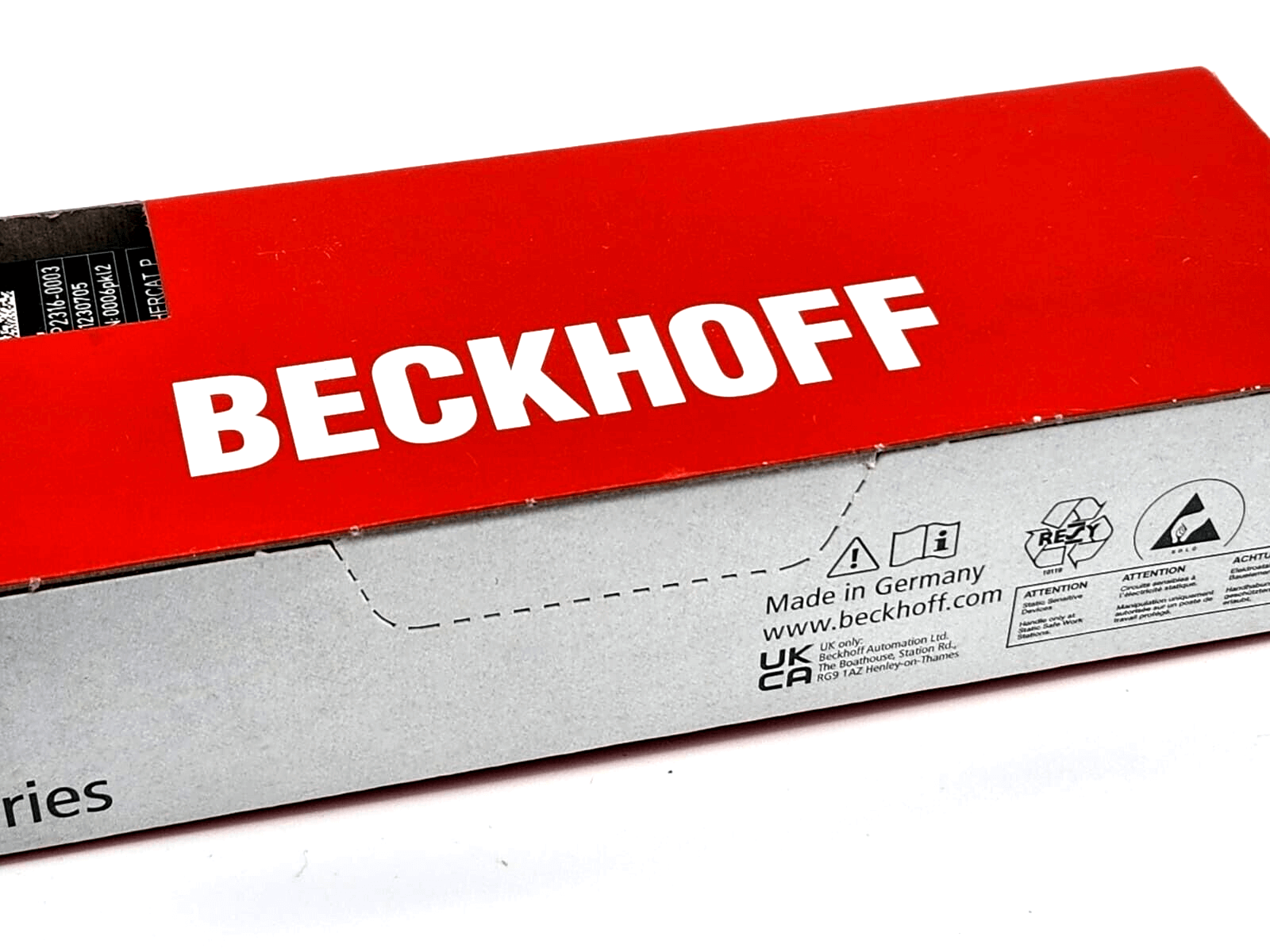

Beckhoff EPP2316-003 EtherCAT P-Box 8-channel digital input + 8-channel digital output

Beckhoff EPP2316-003 EtherCAT P-Box 8-channel digital input + 8-channel digital output

€189,99 EUR
€189,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EPP2316-003 EtherCAT P-Box, 8-channel digital input + 8-channel digital output, 24 V DC, 10 µs, 0.5 A, IP20 connector
  • EtherCAT protocol
  • Bus interface 2 x M8 socket, P-coded, shielded
  • specification EN 61131-2, type 1/3
  • Number of channels 8 inputs + 8 outputs
  • Connection inputs/outputs Connectors with spring force technology
  • input filter 10 µs
  • signal voltage “0” -3…+5 V
  • Signal voltage “1” 11…30 V, 6 mA input current (EN 61131-2, Type 3)
  • Sensor supply from control voltage, max. 0.5 A, total short-circuit proof
  • Load type ohmic, inductive, lamp load
  • Rated load voltage 24 V DC (-15%/+20%)
  • Output current max. 0.5 A per channel, individually short-circuit proof
  • Switching times TON: 25 µs typ., TOFF: 50 µs typ.
  • Short circuit current 1.5 A typ.
  • Current consumption load voltage 20 mA typ.
  • Current consumption from US 100 mA typ.
  • Potential isolation 500 V
  • Special features ideal for control panels
  • Weight approx. 165 g
  • Operating/storage temperature -25…+60 °C/-40…+85 °C
  • Vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • Protection class/installation position IP20/any
  • Approvals/Markings CE, UL

2 in stock
