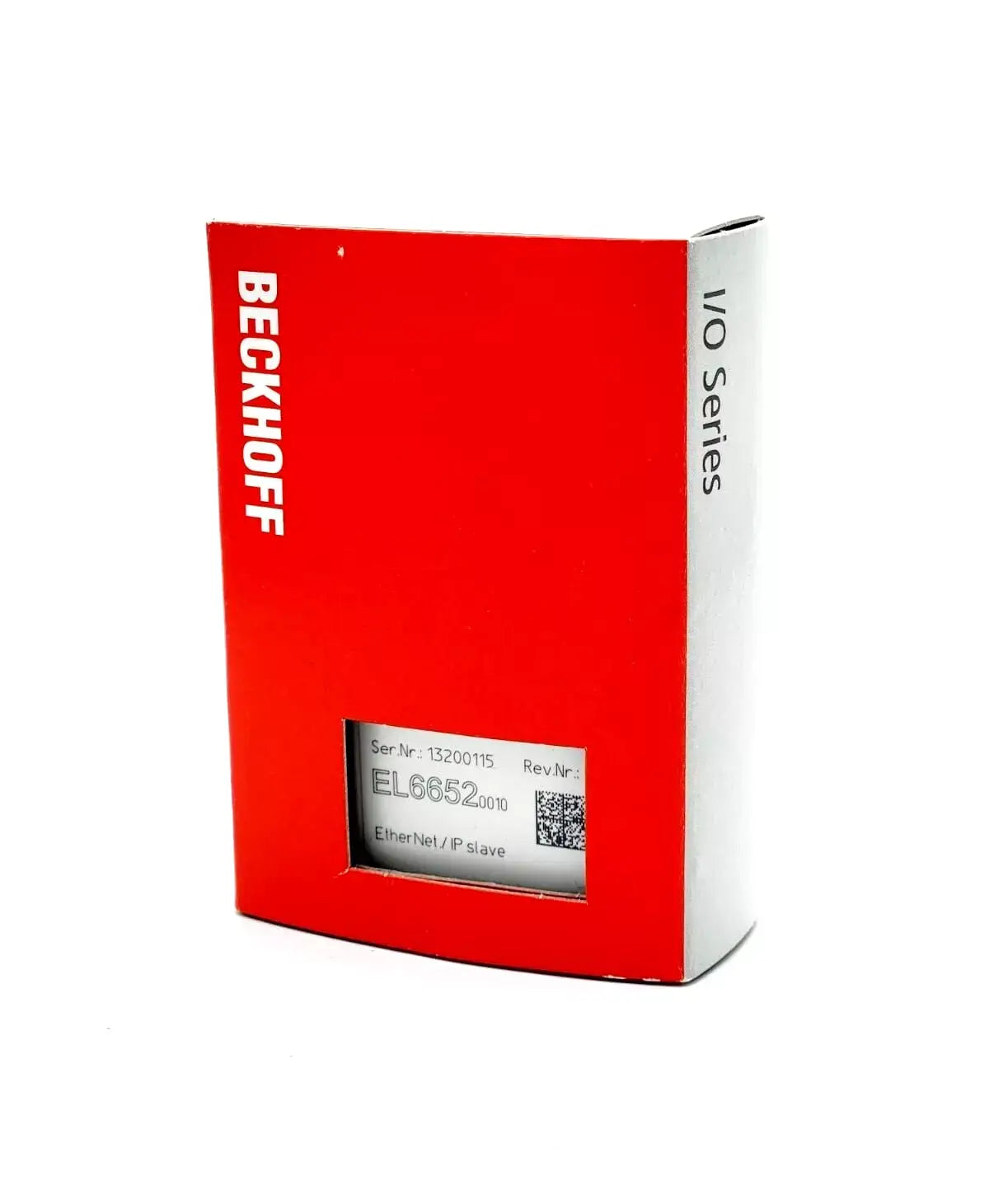

Beckhoff EL6652-0010 EtherCAT Terminal EL6652-0010
Beckhoff EL6652-0010 EtherCAT Terminal EL6652-0010
Regular price
€379,99 EUR
Regular price
Sale price
€379,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Beckhoff EL6652-0010 EtherCAT Terminal 2-port communication interface
- Technology : EtherNet/IP adapter terminal
- Number of ports/channels : 2 ports, internally switched
- Max. process data size : 1 kByte input and 1 kByte output data
- Ethernet interface : 100BASE-TX Ethernet with 2 x RJ45 connectors
- Cable length : Up to 100 m via twisted pair cable
- Hardware diagnostics : status LEDs
- Power supply : via the E-Bus
- Potential separation : 500 V between E-Bus and Ethernet
- Protocol : EtherNet/IP
- Configuration : Via the EtherCAT master
- Current consumption E-Bus : 400 mA typical
- Special features : Supports multicast and unicast connections
- Weight : Approx. 75 g
- Operating/storage temperature : 0 to +55 °C (operation), -25 to +85 °C (storage)
- Relative humidity : 95% (without condensation)
- Vibration/shock resistance : According to EN 60068-2-6 and EN 60068-2-27
- EMC immunity/emission : According to EN 61000-6-2 and EN 61000-6-4
- Protection class/installation position : IP20 (see documentation for installation position)
- Approvals/Markings : CE and UL
