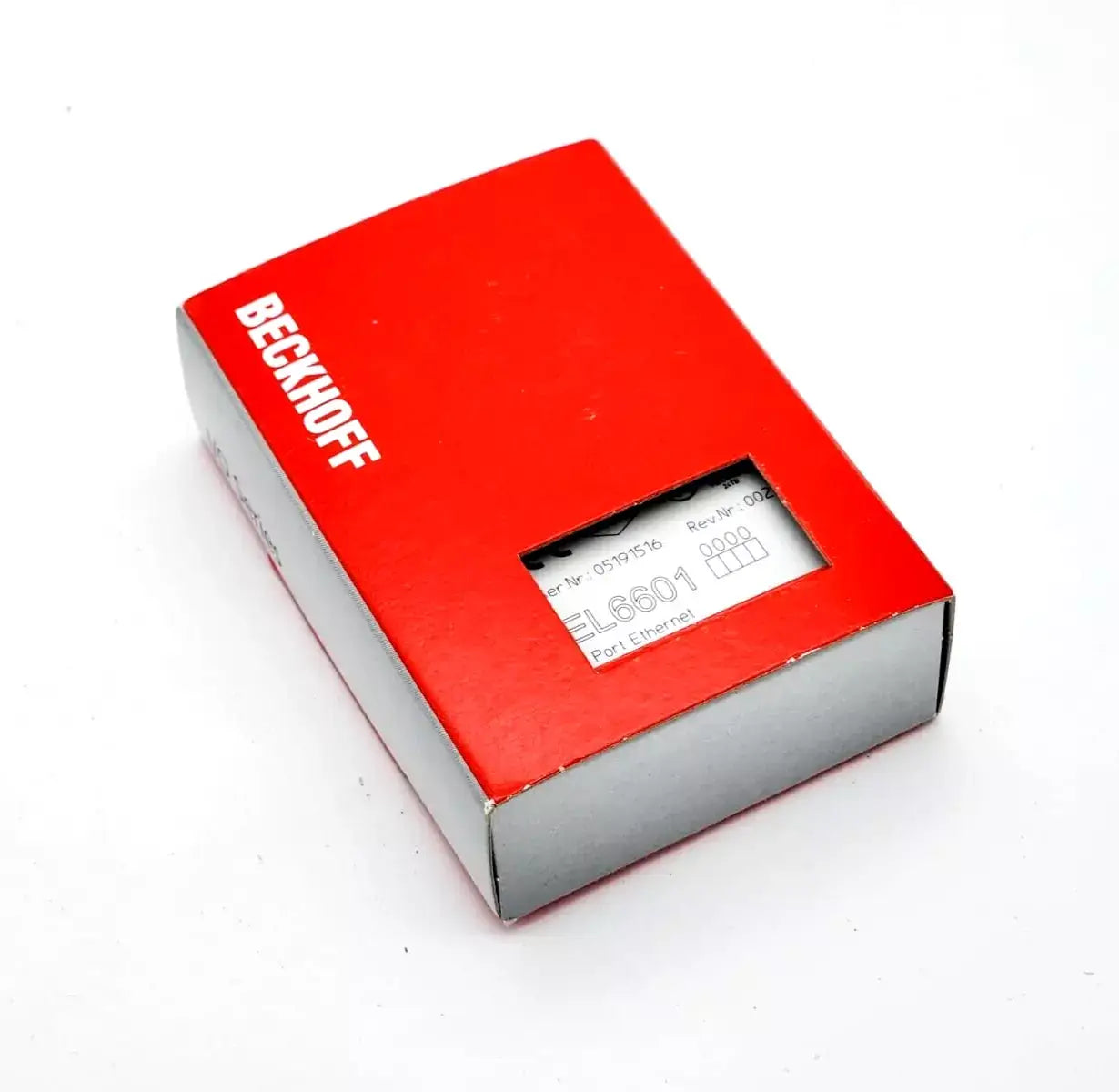

• Beckhoff EL6601 EtherCAT-Klemme 1-Port-Kommunikations-Interface in original packaging, side view with product label visible.
1 1

Beckhoff

Beckhoff EL6601 EtherCAT Terminal 1-port communication interface

Beckhoff EL6601 EtherCAT Terminal 1-port communication interface

€166,99 EUR
€166,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Beckhoff EL6601 EtherCAT Terminal 1-port communication interface

  • number of Ethernet ports 1
  • bus system all Ethernet (IEEE 802.3)-based protocols, store-and-forward switching mode
  • Ethernet interface 10BASE-T/100BASE-TX Ethernet with 1 x RJ45
  • transfer rates 10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 MBit/s possible, settings automatic
  • cable length up to 100 m twisted pair
  • hardware diagnostics status LEDs
  • power supply via the e-bus
  • Distributed Clocks –
  • potential separation 500 V (E-Bus/Ethernet)
  • protocol all Ethernet (IEEE 802.3)-based protocols, store-and-forward switching mode
  • configuration no
  • current consumption power contacts –
  • power consumption of the e-bus 260 mA typ.
  • Special features Support RT-Ethernet, Publisher/Subscriber, DHCP/BootP server
  • Weight approx. 75 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • Ex marking ATEX:
  • II 3 G Ex ec IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc
  • cFMus:
  • Class I, Division 2, Groups A, B, C, D
  • Class I, Zone 2, AEx ec IIC T4 Gc
  • approvals/markings CE, UL, ATEX, IECEx, cFMus

1 in stock
