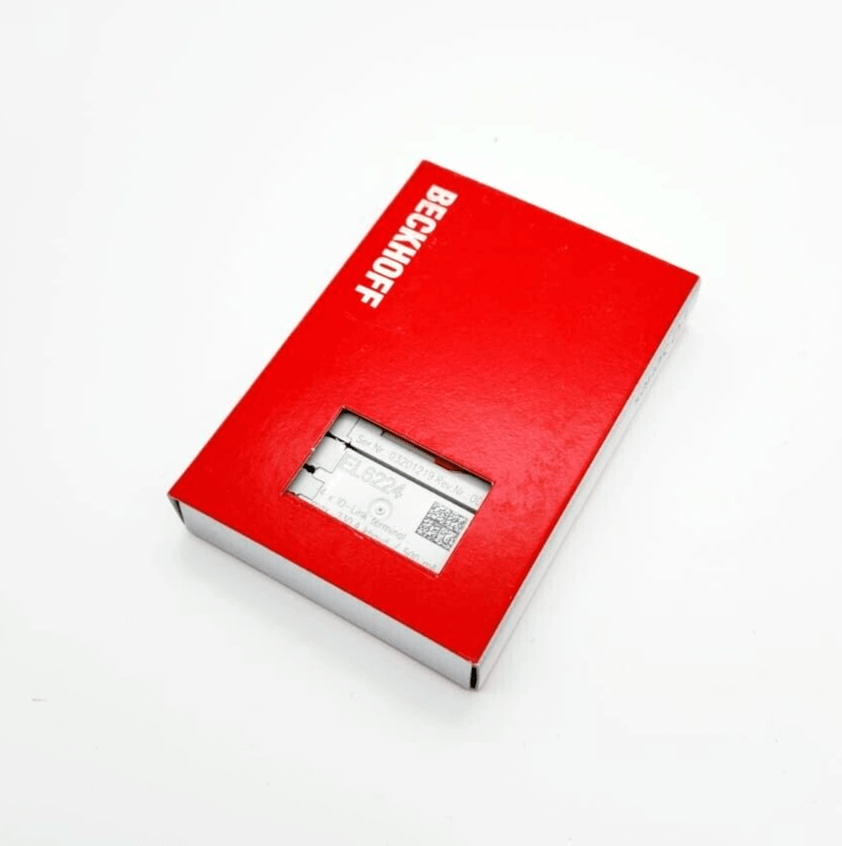

• Beckhoff EL6224 EtherCAT-Klemme 4-Kanal-Kommunikations-Interface IO-Link Master in original packaging
1 1

Beckhoff

Beckhoff EL6224 EtherCAT Terminal 4-channel communication interface IO-Link Master

Beckhoff EL6224 EtherCAT Terminal 4-channel communication interface IO-Link Master

€94,99 EUR
€94,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EL6224 EtherCAT Terminal 4-channel communication interface IO-Link Master
  • Technology IO-Link input/output
  • specification version IO-Link V1.1
  • IO-Link interfaces 4
  • field voltage 24 V DC via power contacts
  • Connection 3-wire
  • transfer rates 4.8 kBaud, 38.4 kBaud and 230.4 kBaud
  • cable length max. 20 m
  • power supply via E-Bus and power contacts
  • potential separation 500 V (E-bus/signal voltage)
  • power contacts Yes
  • Supply current for
  • Participant 500 mA per participant
  • power consumption of the e-bus 120 mA typ.
  • Special features each channel parameterizable in TwinCAT
  • Weight approx. 60 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

2 in stock
