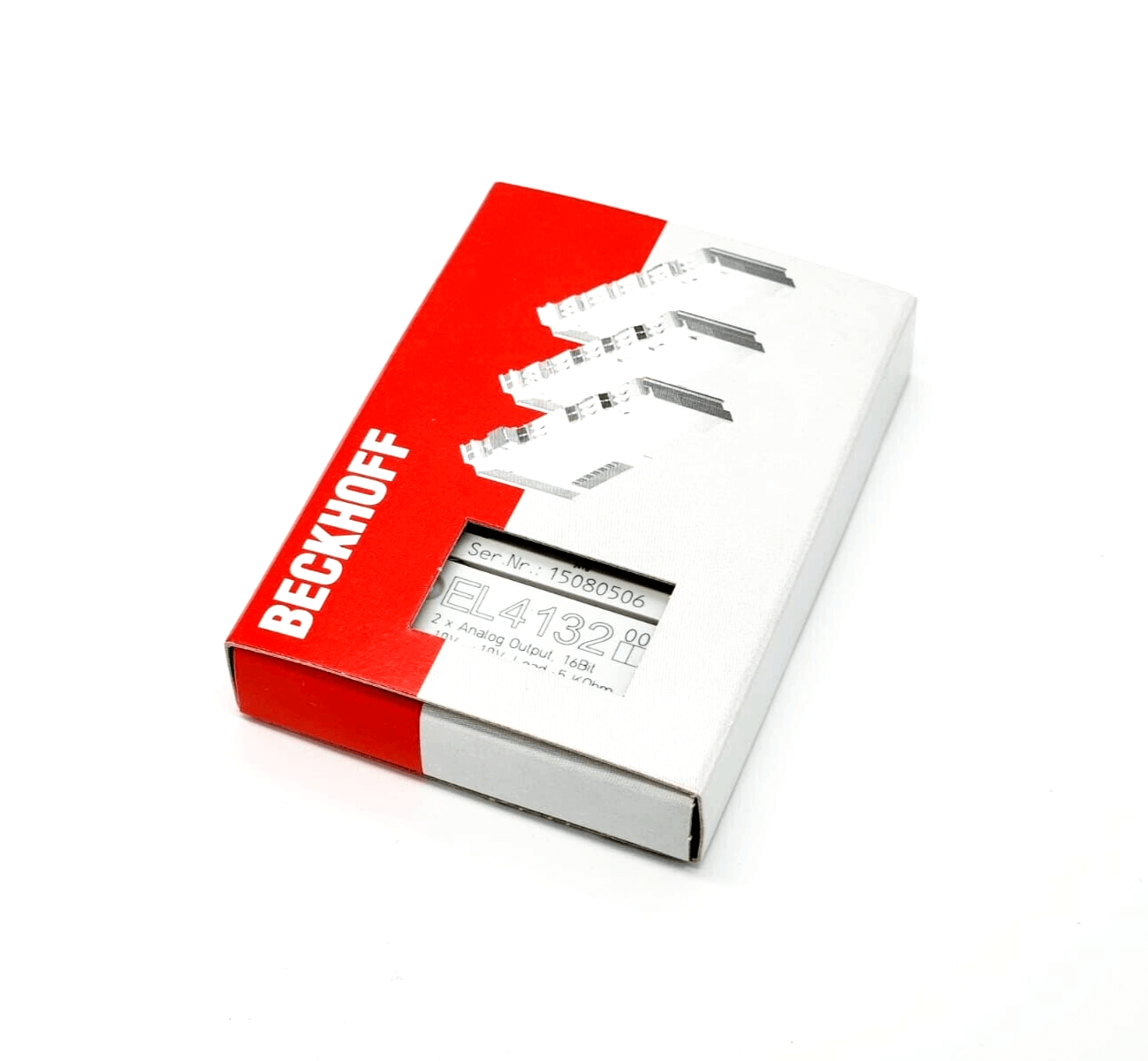

Beckhoff EL4132-0000 EtherCAT Terminal, 2-channel analog output, ±10 V, 16 bit

Beckhoff EL4132-0000 EtherCAT Terminal, 2-channel analog output, ±10 V, 16 bit

€309,99 EUR
€309,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EL4132-0000 EtherCAT Terminal, 2-channel analog output, ±10 V, 16 bit
  • connection technology 2-wire, single-ended
  • number of outputs 2
  • power supply via the e-bus
  • signal voltage -10…+10 V
  • Distributed Clocks Yes
  • Accuracy Distributed Clocks << 1 µs
  • burden > 5 kΩ (short-circuit proof)
  • measurement error/uncertainty < 0.1 % (relative to the measuring range end value)
  • resolution 16 bits (including sign)
  • potential separation 500 V (E-bus/signal voltage)
  • output rate max. 15 kSps
  • current consumption power contacts –
  • power consumption of the e-bus 210 mA typ.
  • width in the process image 2 x 16-bit AO output
  • Special features Watchdog can be parameterized, user adjustment can be activated
  • Weight approx. 55 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • protection class/installation position IP20/any
  • Pluggable wiring for all ESxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

1 in stock
