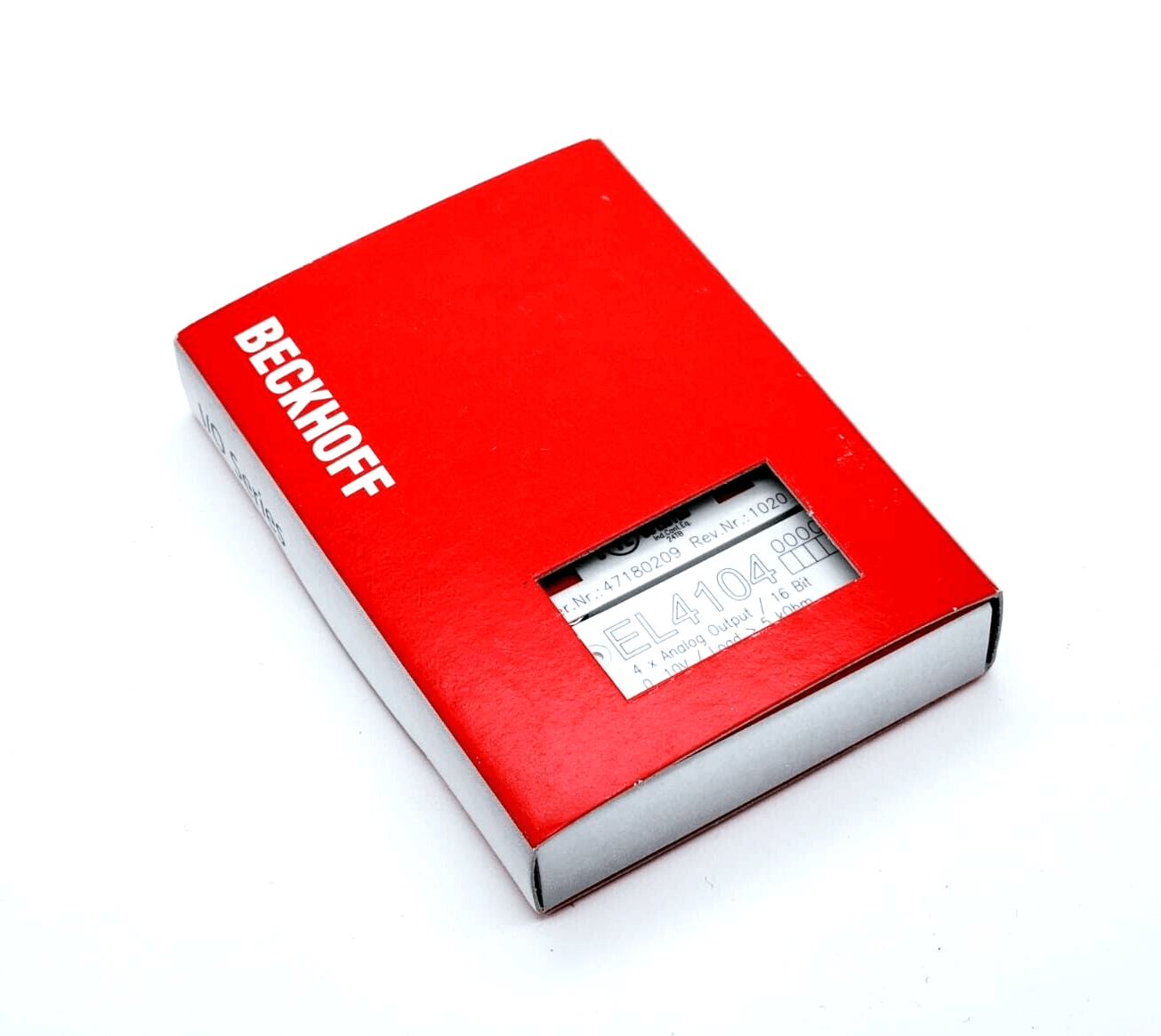

• Alt Tag: Beckhoff EL4104 EtherCAT-Klemme 4-Kanal-Analog-Ausgang Spannung 0…10 V in original packaging.
1 1

Beckhoff

Beckhoff EL4104 EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V

Beckhoff EL4104 EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V

€218,99 EUR
€218,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EL4104 EtherCAT Terminal, 4-channel analog output, voltage, 0…10 V
  • connection technology 2-wire, single-ended
  • number of outputs 4
  • power supply via the e-bus
  • signal voltage 0…10 V
  • Distributed Clocks Yes
  • Accuracy Distributed Clocks << 1 µs
  • burden > 5 kΩ (short-circuit proof)
  • output error < 0.1% (relative to the final value)
  • resolution 16 bits (including sign)
  • potential separation 500 V (E-bus/signal voltage)
  • output rate max. 4 kSps
  • current consumption power contacts –
  • power consumption of the e-bus 190 mA typ.
  • width in the process image 4 x 16-bit AO output
  • Special features Watchdog can be parameterized and user adjustment can be activated
  • Weight approx. 65 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • protection class/installation position IP20/any
  • Pluggable wiring for all ESxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX:
  • II 3 G Ex ec IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

4 in stock
