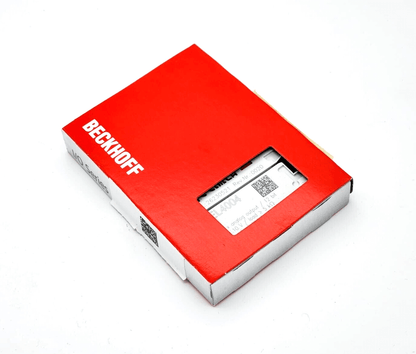

Beckhoff EL4004 EtherCAT Terminal, 4-channel analog output, voltage, 0…10V, 12 bit

Beckhoff EL4004 EtherCAT Terminal, 4-channel analog output, voltage, 0…10V, 12 bit

€132,99 EUR
€132,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EL4004 EtherCAT Terminal, 4-channel analog output, voltage, 0…10V, 12 bit
  • connection technology 2-wire, single-ended
  • number of outputs 4
  • power supply 24 V DC via power contacts
  • signal voltage 0…10 V
  • Distributed Clocks Yes
  • Accuracy Distributed Clocks << 1 µs
  • burden > 5 kΩ (short-circuit proof)
  • output error < 0.1% (relative to the final value)
  • resolution 12 bit
  • potential separation 500 V (E-bus/signal voltage)
  • transformation period ~ 250 µs
  • current consumption power contacts 40 mA typ.
  • power consumption of the e-bus 140 mA typ.
  • width in the process image 4 x 16-bit AO output
  • Special features Watchdog optional: user-specific output value with ramp; user adjustment can be activated
  • Weight approx. 85 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • protection class/installation position IP20/any
  • Pluggable wiring for all ESxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

2 in stock
