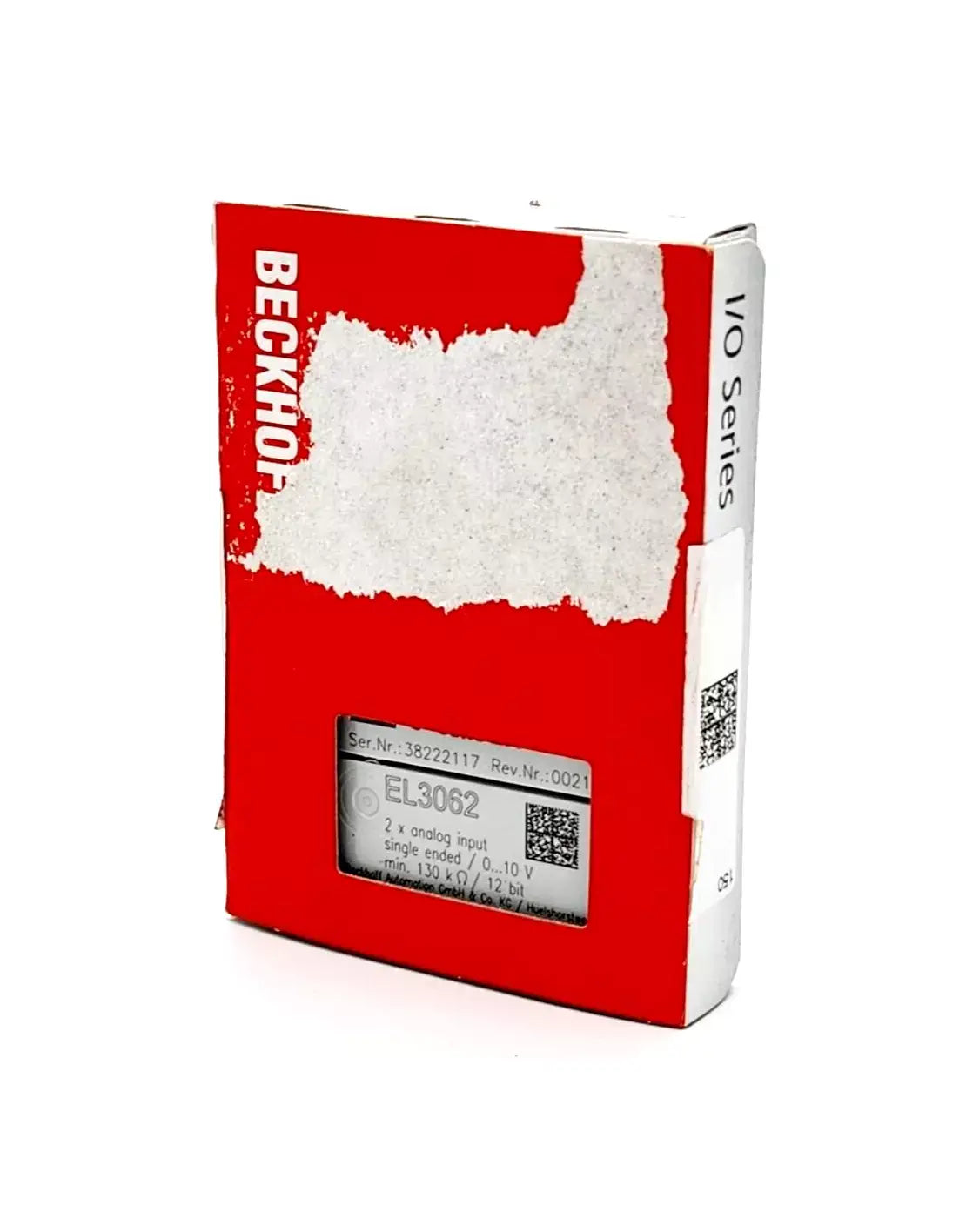

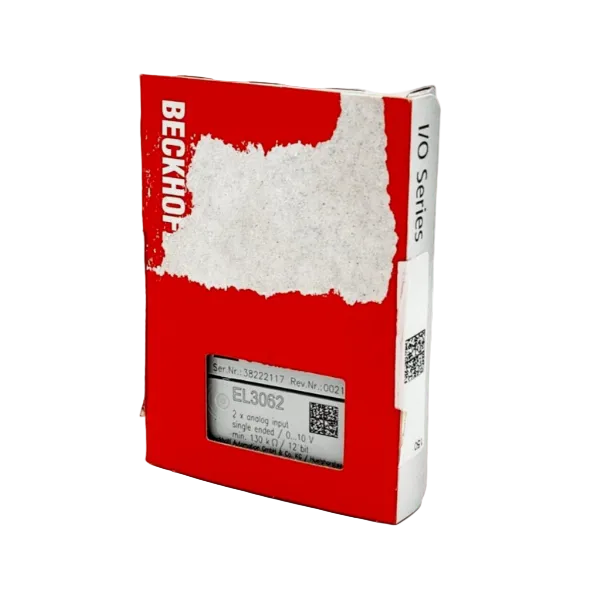

Beckhoff EL3062 EtherCAT Terminal 2-channel analog input, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

• Number of inputs : 2 (single-ended)
• Power supply : via the E-Bus
• Signal voltage : 0…10 V
• Distributed Clocks : –
• Internal resistance : > 130 kΩ
• Input filter cutoff frequency : 1 kHz
• Dielectric strength : max. 30 V
• Conversion time : 0.625 ms preset, configurable, multiplex
• Resolution : 12 bits (16-bit representation including sign)
• Measurement error/uncertainty : < ±0.3 % (relative to the measuring range end value)
• Potential isolation : 500 V (E-bus/signal voltage)
• Current consumption power contacts : –
• Current consumption E-bus : 130 mA typ.
• Width in the process image : Inputs: 8 bytes
• Special features : FIR/IIR filter can be activated, limit value monitoring
• Operating/storage temperature : -25…+60 °C / -40…+85 °C
• Weight : approx. 60 g
• Relative humidity : 95% without condensation
• Vibration/shock resistance : according to EN 60068-2-6 / EN 60068-2-27
• EMC immunity/emission : according to EN 61000-6-2 / EN 61000-6-4
• Pluggable wiring : for all ESxxxx terminals
• Approvals/Markings : CE, UL, ATEX, IECEx
• Protection class/installation position : IP20 / any
• Ex marking :
  • ATEX: II 3 G Ex ec IIC T4 Gc
  • IECEx: Ex ec IIC T4 Gc
