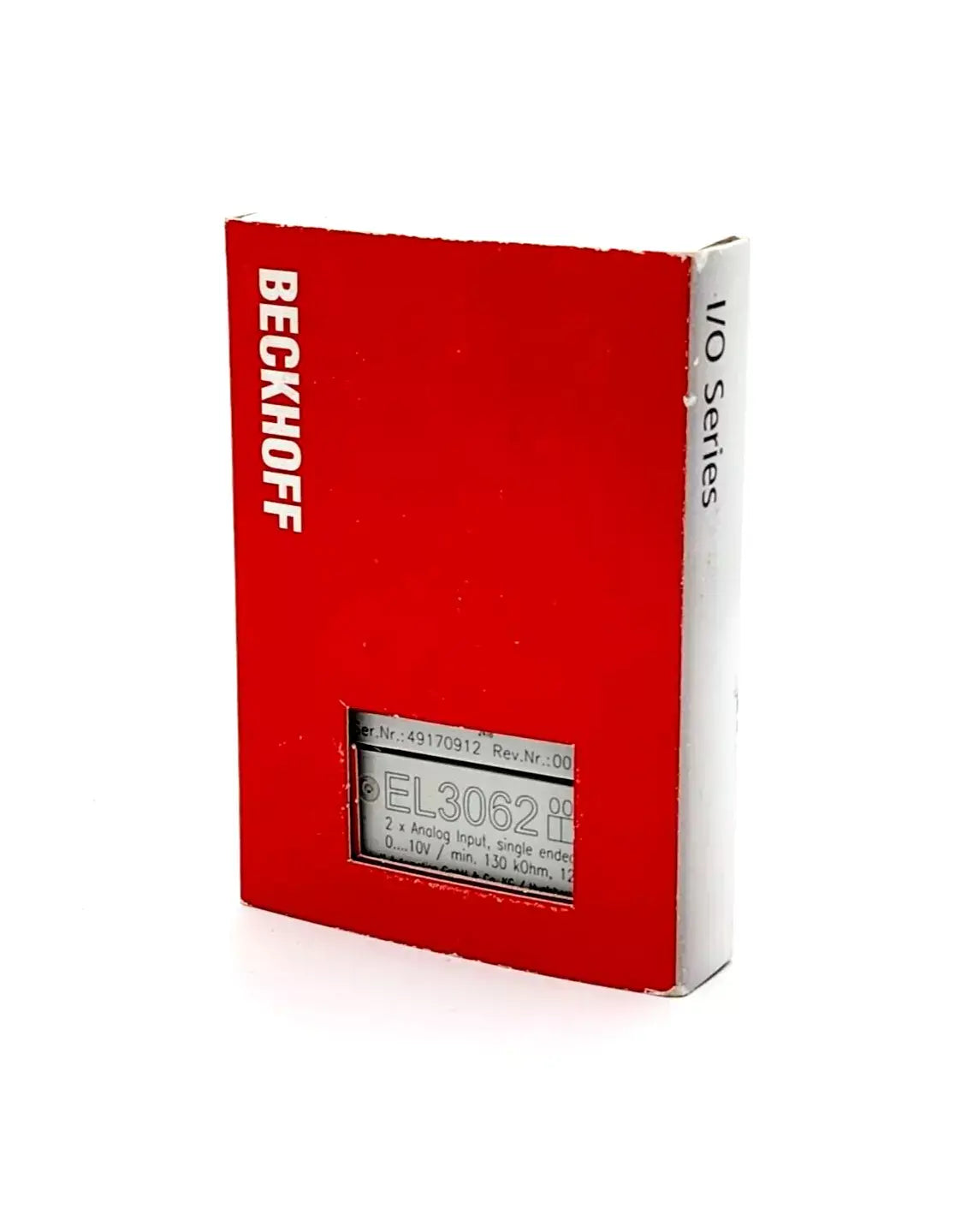

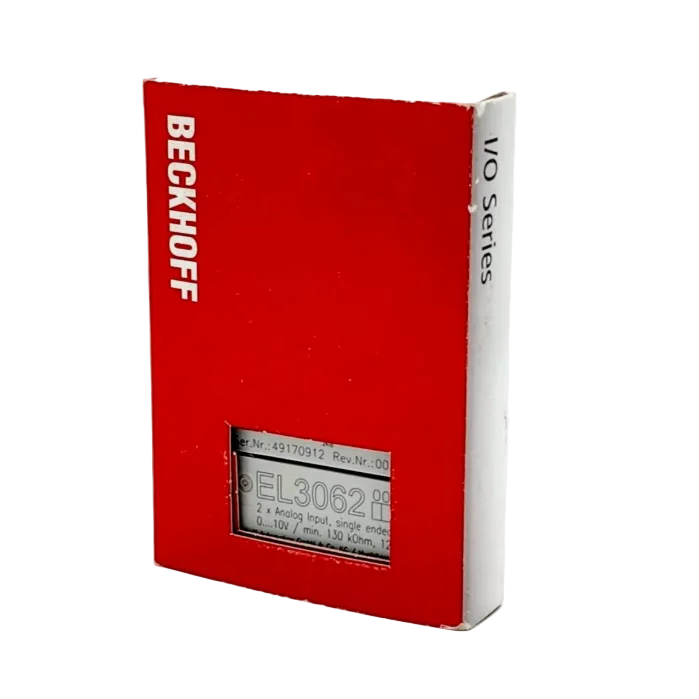

Beckhoff EL3062-0000 EtherCAT Terminal 2-channel analog input

Beckhoff EL3062-0000 EtherCAT Terminal 2-channel analog input

€109,99 EUR
€109,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Beckhoff EL3062-0000 EtherCAT Terminal 2-channel analog input, 2-channel analog input, voltage, 0…10 V, 12 bit, single-ended

  • Number of inputs : 2 (single-ended)
  • Power supply : via the E-Bus
  • Signal voltage : 0…10 V
  • Distributed Clocks : –
  • Internal resistance : > 130 kΩ
  • Input filter cutoff frequency : 1 kHz
  • Dielectric strength : max. 30 V
  • Conversion time : 0.625 ms preset, configurable, multiplex
  • Resolution : 12 bits (16-bit representation including sign)
  • Measurement error/uncertainty : < ±0.3 % (relative to the measuring range end value)
  • Potential isolation : 500 V (E-bus/signal voltage)
  • Current consumption power contacts : –
  • Current consumption E-bus : 130 mA typ.
  • Width in the process image : Inputs: 8 bytes
  • Special features : FIR/IIR filter can be activated, limit value monitoring
  • Operating/storage temperature : -25…+60 °C / -40…+85 °C
  • Weight : approx. 60 g
  • Relative humidity : 95% without condensation
  • Vibration/shock resistance : according to EN 60068-2-6 / EN 60068-2-27
  • EMC immunity/emission : according to EN 61000-6-2 / EN 61000-6-4
  • Pluggable wiring : for all ESxxxx terminals
  • Approvals/Markings : CE, UL, ATEX, IECEx
  • Protection class/installation position : IP20 / any
  • Ex marking :
    • ATEX: II 3 G Ex ec IIC T4 Gc
    • IECEx: Ex ec IIC T4 Gc

1 in stock
