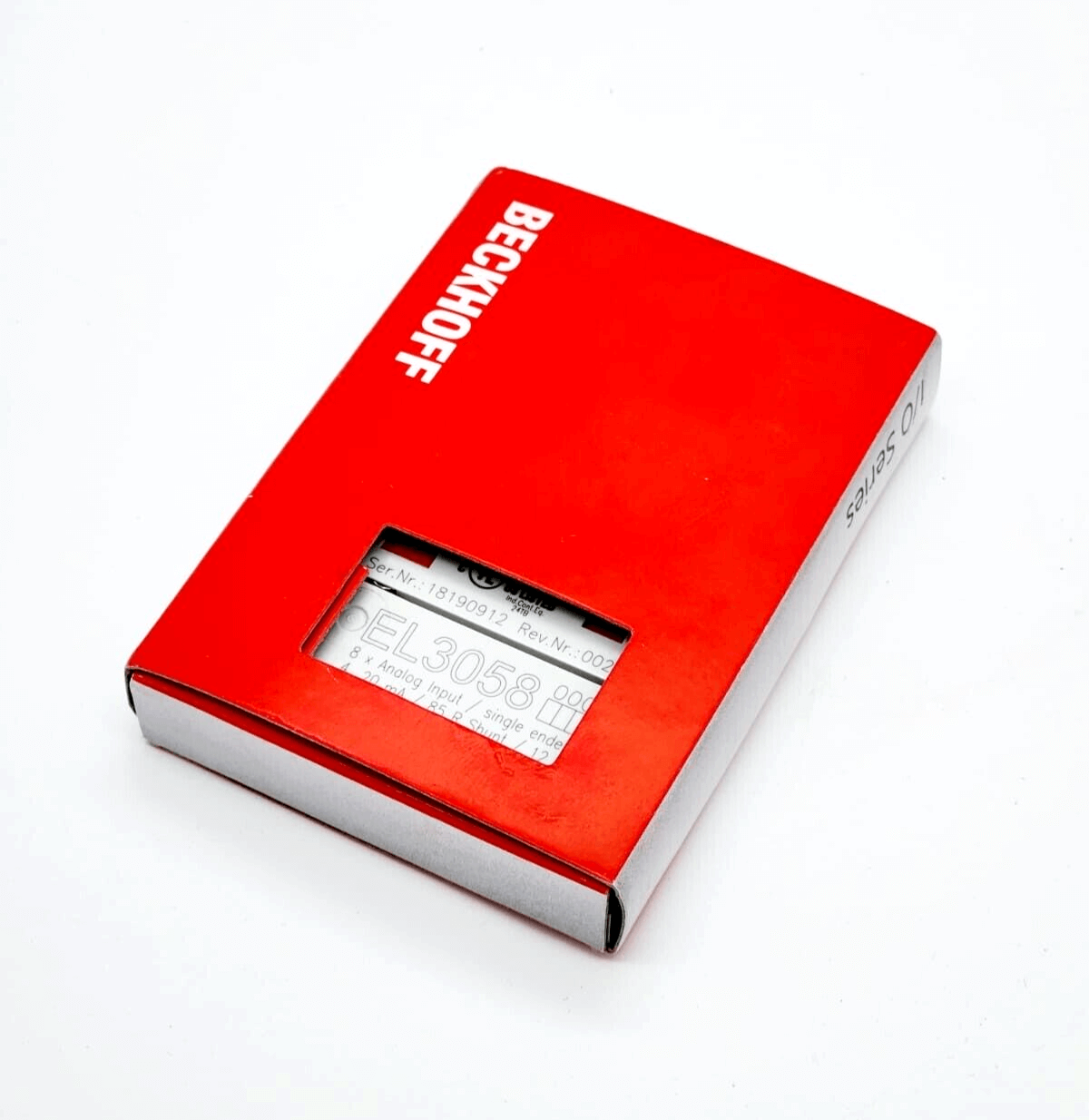

• Beckhoff EL3058 EtherCAT-Klemme 8-Kanal-Analog-Eingang, single-ended in original packaging
1 1

Beckhoff

Beckhoff EL3058 EtherCAT Terminal 8-channel analog input, single-ended

Beckhoff EL3058 EtherCAT Terminal 8-channel analog input, single-ended

€94,99 EUR
€94,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff EL3058 EtherCAT Terminal 8-channel analog input, single-ended
  • number of inputs 8 (single-ended)
  • Technology single-ended
  • signal type single-ended
  • signal current 4…20 mA
  • Distributed Clocks –
  • internal resistance 85 Ω typ.
  • cutoff frequency input filter 1 kHz
  • dielectric strength max. 30 V
  • transformation period 1.25 ms preset, configurable, multiplex
  • resolution 12 bits (16-bit representation including sign)
  • measurement error/uncertainty < ±0.3 % (relative to the measuring range end value)
  • potential separation 500 V (E-bus/signal voltage)
  • current consumption power contacts –
  • power consumption of the e-bus 130 mA typ.
  • width in the process image Inputs: 32 bytes
  • configuration no address or configuration setting required
  • Special features Standard and compact process image, FIR/IIR filter can be activated, limit value monitoring
  • Weight approx. 60 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • Pluggable wiring for all ESxxxx terminals
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc

2 in stock
