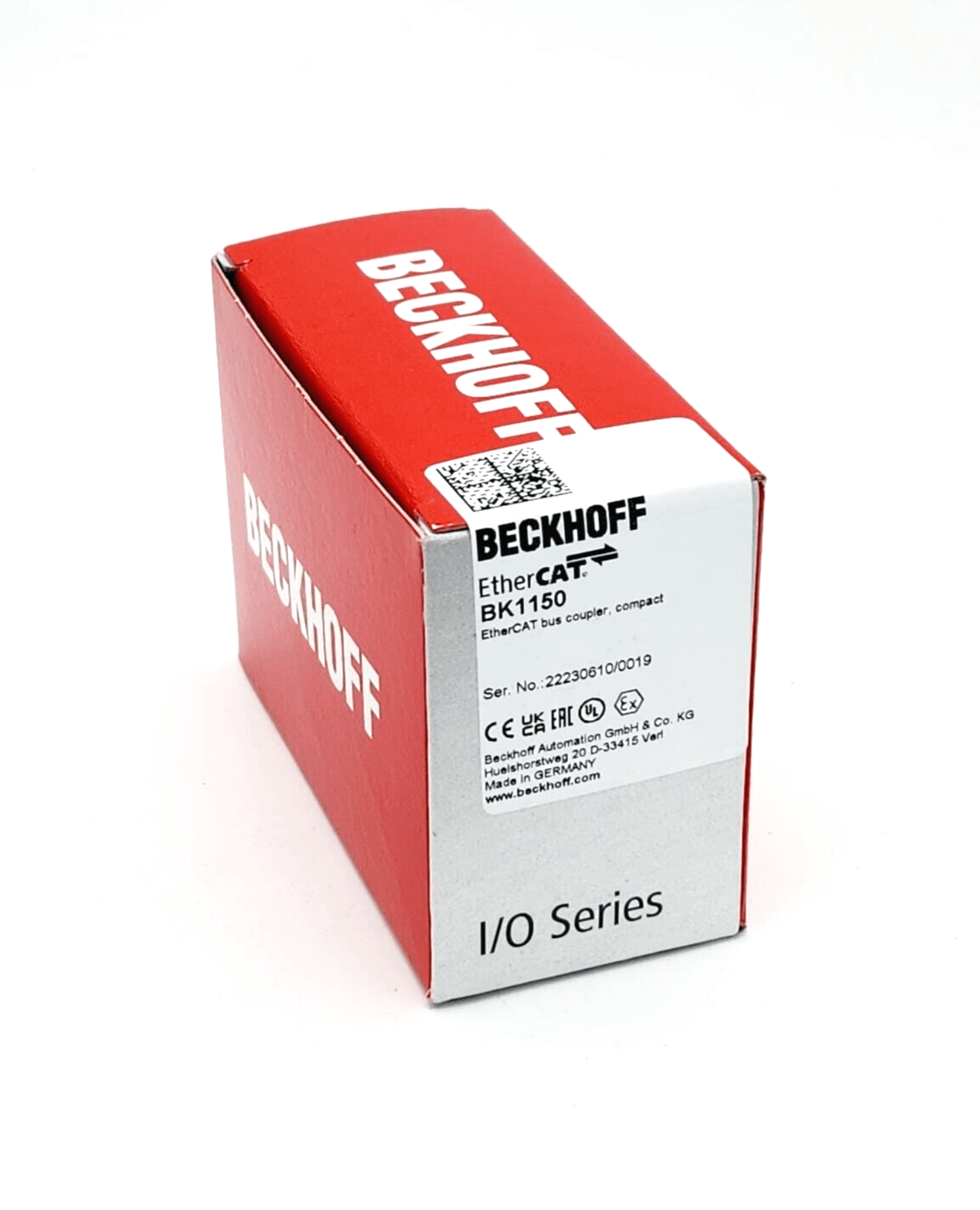

• Box of Beckhoff BK1150 EtherCAT-Compact-Buskoppler sealed and new, showing product labels and packaging.
1 1

Beckhoff

Beckhoff BK1150 EtherCAT Compact bus coupler

Beckhoff BK1150 EtherCAT Compact bus coupler

€237,99 EUR
€237,99 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beckhoff BK1150 EtherCAT Compact bus coupler
  • number of bus terminals 64 (255 with K-Bus extension)
  • Max. number of bytes fieldbus 1024 byte input and 1024 byte output
  • configuration option via KS2000 or EtherCAT (ADS)
  • transfer rates 100 Mbit/s
  • bus interface 2 x RJ45
  • transmission medium Industrial Ethernet cable (min. Cat.5), shielded
  • power supply 24 V DC (-15 %/+20 %)
  • input current 70 mA + (total K-bus current)/4, 500 mA max.
  • inrush current approx. 2.5 x continuous current
  • Recommended backup fuse ≤ 10 A
  • K-Bus power supply 1750 mA
  • power contacts max. 24 V DC/max. 10 A
  • potential separation 500 V (power contact/supply voltage/Ethernet)
  • length between stations 100 m (100BASE-TX)
  • transmission time 0.01 ms typ. for 10 modules with 32-bit input/output each (without K-bus runtime)
  • Dimensions (W x H x D) 44 mm x 100 mm x 68 mm
  • Weight approx. 110 g
  • operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission according to EN 61000-6-2/EN 61000-6-4
  • protection class/installation position IP20/any
  • approvals/markings CE, UL, ATEX, IECEx
  • Ex marking ATEX: II 3 G Ex ec IIC T4 Gc
  • IECEx: Ex ec IIC T4 Gc

1 in stock
